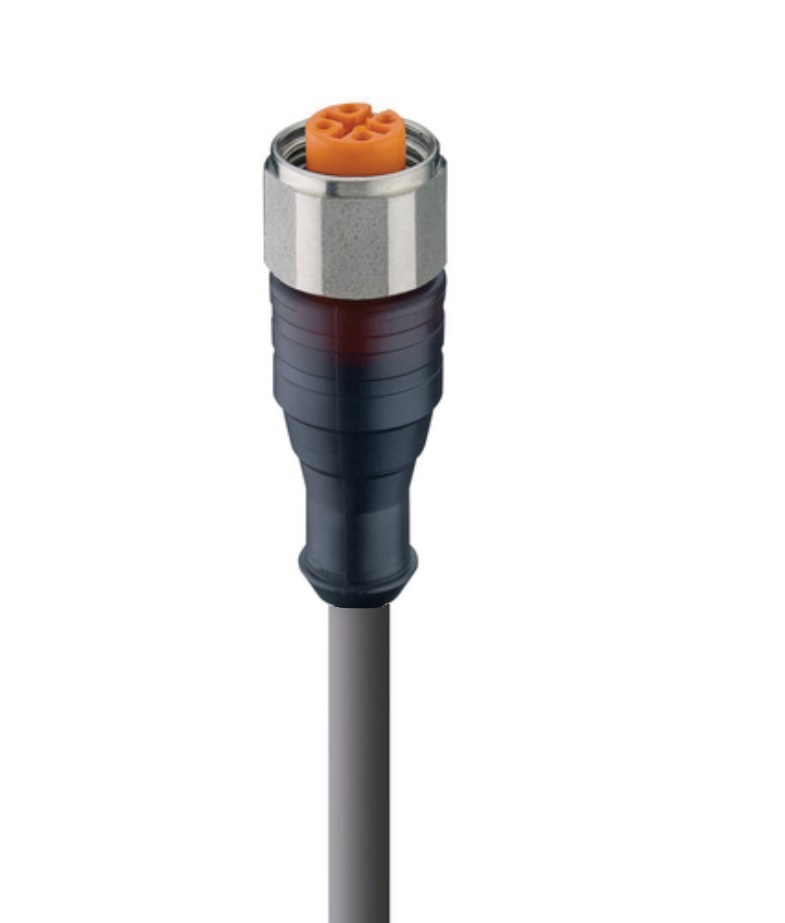

Sensor / Actuator Connector: M12 Standard, Cordset, Single ended, Straight Female, 4-pole; with Grey PVC 22 AWG cable with Stainless Steel Coupling Nuts
Sensor / Actuator Connector: M12 Standard, Cordset, Single ended, Straight Female, 4-pole, 250 V | 4 A; with Grey PVC 4x22 AWG cable with Stainless Steel Coupling Nuts
- Availability
- Americas
- Status
- Active
Specifications
Face View
| Product Family | Sensor / Actuator Connector |
|---|---|
| Side 1 Product Sub Family | M12 Standard |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Female |
| Connector Design | Straight |
| Number of Pins | 4 |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Coupling Nut |
| Voltage Rating | 250 V |
| Rated Impulse Voltage | 2.5 kV |
| Operating Voltage | 230 V AC/DC |
| Current Rating | 4 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | II acc. to DIN EN 60664-1 (VDE 0110-1) |
Materials
| Contact Base Material | CuSn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | TPU |
| Contact Bearer Color | Orange |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Grey Transluscent |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | 316 grade: Stainless Steel, Hex Internal thread |
| O-Ring Material | FKM, green or black |
Circuitry
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 646 |
|---|---|
| Conductor Size | 22 AWG |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 7 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1 M |
| Conductor Material | Cu [Bare Copper] |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Grey |
| Cable Diameter D | Ø 5.10 mm |
| Wire Insulation Material | PVC-SR |
| Insulated Wire Diameter | Ø 1.25 mm |
| Ambient Temperature (Fixed Installation) | - 40 to 105°C |
| Ambient Temperature (Flex Installation) | - 15 to 105°C |
| Ambient Temperature (Drag Chain Inst) | - 15 to 105°C |
| UL Cable Type | AWM 2661, C(RU) AWM I/II A/B |
| Flammability Class (Cable Jacket) | UL VW-1, FT1 |
| Cable Characteristics | Mechanical Resistances, Abrasion, Impact, Weathering; Chemical Resistances to Oils, Acids, Alkalis |
Approvals
| UL-File | E315587 |
|---|---|
| UL | Yes |
| VDE | Yes |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product |
History
| Update and Revision | Revision Number: 0.15 Revision Date: 02-20-2026 |
|---|
