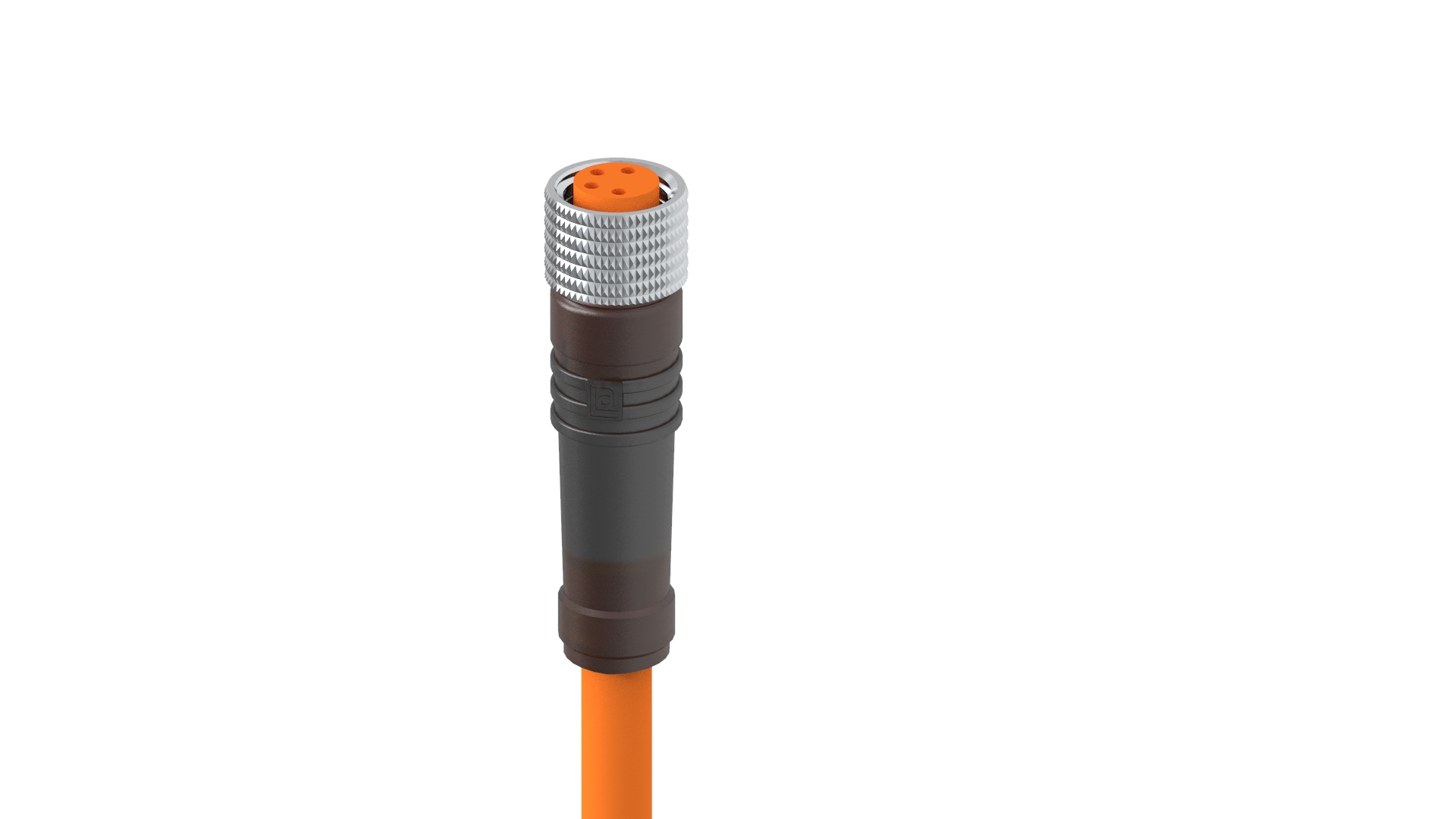

M8 pigtail, Automotive Line, female, 4-pin, A-coded, straight, PUR orange cable, unshielded, IP67
M8 pigtail connector, Automation Line, high welding spark resistance, female, 4-pin, A-coded, straight, PUR orange cable (similar to RAL 2003), unshielded, AWM 20549, rated voltage 30 V AC/DC, rated current 4A, suited for IP67 environment
- Availability
- Global
- Status
- Active
- Orderable items
- 12
Part numbers
RKMV 4-1006 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 35075 | RKMV 4-1006/10 M | Order online |
| 35074 | RKMV 4-1006/5 M | Order online |
| 35073 | RKMV 4-1006/4,5 M | Order online |
| 35072 | RKMV 4-1006/4 M | Order online |
| 35071 | RKMV 4-1006/3,5 M | Order online |
| 35030 | RKMV 4-1006/3 M | Order online |
| 35029 | RKMV 4-1006/2,5 M | Order online |
| 35028 | RKMV 4-1006/2 M | Order online |
| 35027 | RKMV 4-1006/1,5 M | Order online |
| 35026 | RKMV 4-1006/1 M | Order online |
| 35025 | RKMV 4-1006/0,6 M | Order online |
| 35024 | RKMV 4-1006/0,3 M | Order online |
Specifications
Information
| Product Family | Sensor / Actuator Connector |
|---|---|
| Side 1 Product Sub Family | Automotive |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Female |
| Connector Design | Straight |
| Number of Pins | 4 |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Coupling Nut |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C |
| Protection Degree / IP Rating** | IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Note Derating | Notice derating |
Face View
| Pin 1 | brown |
|---|---|
| Pin 2 | white |
| Pin 3 | blue |
| Pin 4 | black |
Materials
| Contact Base Material | CuSn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
Circuitry
| Fastening Torque (Attachment) | M 8x1: 30 Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 1006 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | 5 x D |
| Minimal Bending Radius (Flexible Inst) | 10 x D |
| Cycles (Bending) | 2 Mio. |
| Welding Resistance | Welding spark resistant |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | orange (similar to RAL 2003) |
| Cable Diameter D | ø 5.30 ± 0.15 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | ø 1.25 ±0.05 mm |
| Ambient Temperature (Fixed Installation) | - 50 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation) | - 25 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| UL Cable Type | AWM: 20549 |
| Flammability Class (Cable Jacket) | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT2 |
| Cable Characteristics | flame retardant, halogen-free, drag chains |
Approvals
| UL | cULus |
|---|
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | Yes, acc. to IEC 60754-1 |
|---|
Notes
| Note Derating | Notice derating |
|---|
Resources
