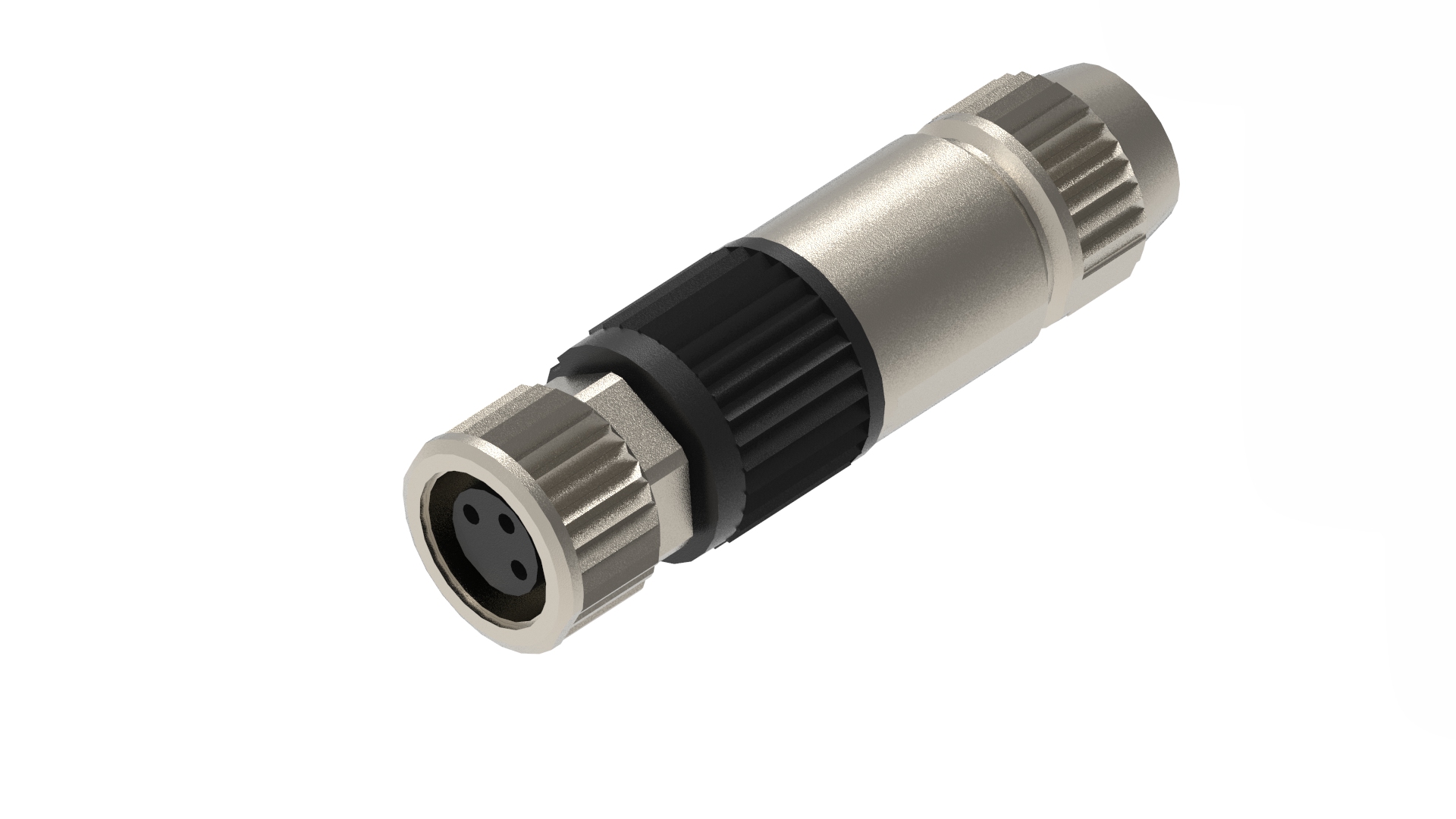

M8 Field Attachable Connector, IDC termination, slim metal housing, IP67, female, 3-pole, A-coded, unshielded, straight
M8 Field Attachable Connector for decentralized field assembly, insulation displacement contact termination method (IDC), straight, female, 3-pole, A-coded, slim design, zinc diecast metal housing for harsh environment, IP65/IP67, unshielded, 0,14...0,34mm2, AWG 22AWG26, rated voltage 32V, rated current 4A
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RKMCI 3A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 935070051 | RKMCI 3A | Order online |
Specifications
Face View
| Product Family | Sensor / Actuator Connectors |
|---|---|
| Side 1 Product Sub Family | M8 Standard |
| Connector Type | Field attachable |
| Side 1 Type of Contact/Gender | female |
| Connector Design | straight |
| Number of Pins | 3 |
| Coding, Side 1 | A |
| Attachment Type | Coupling Nut |
| Rated Impulse Voltage | 1,5 kV |
| Operating Voltage | 32 V AC/DC |
| Current Rating | 4 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Type of Connection | insulation displacement contact (IDC) |
| Maximum Wire Cross Section | 0,14mm2...0,34 mm2 |
| Strain-Relief | clamping cage |
| Suitable Cables | Ø2,5...Ø5,1 mm |
| Ambient Temperature (Operation)* | -40°C to +85°C |
| Operating Temperature (UL) | max. 85 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-104 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | AuNi |
| Contact Bearer Material | PBT |
| Contact Bearer Color | black |
| Housing Material | zinc diecast |
| Housing Color | grey metallic |
| Attachment Material | CuZn |
| Attachment Plating | nickel-plated |
Circuitry
| Fastening Torque (Attachment) | 50-60 Ncm |
|---|
Approvals
| UL-File | E95522 |
|---|---|
| UL | cURus |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
