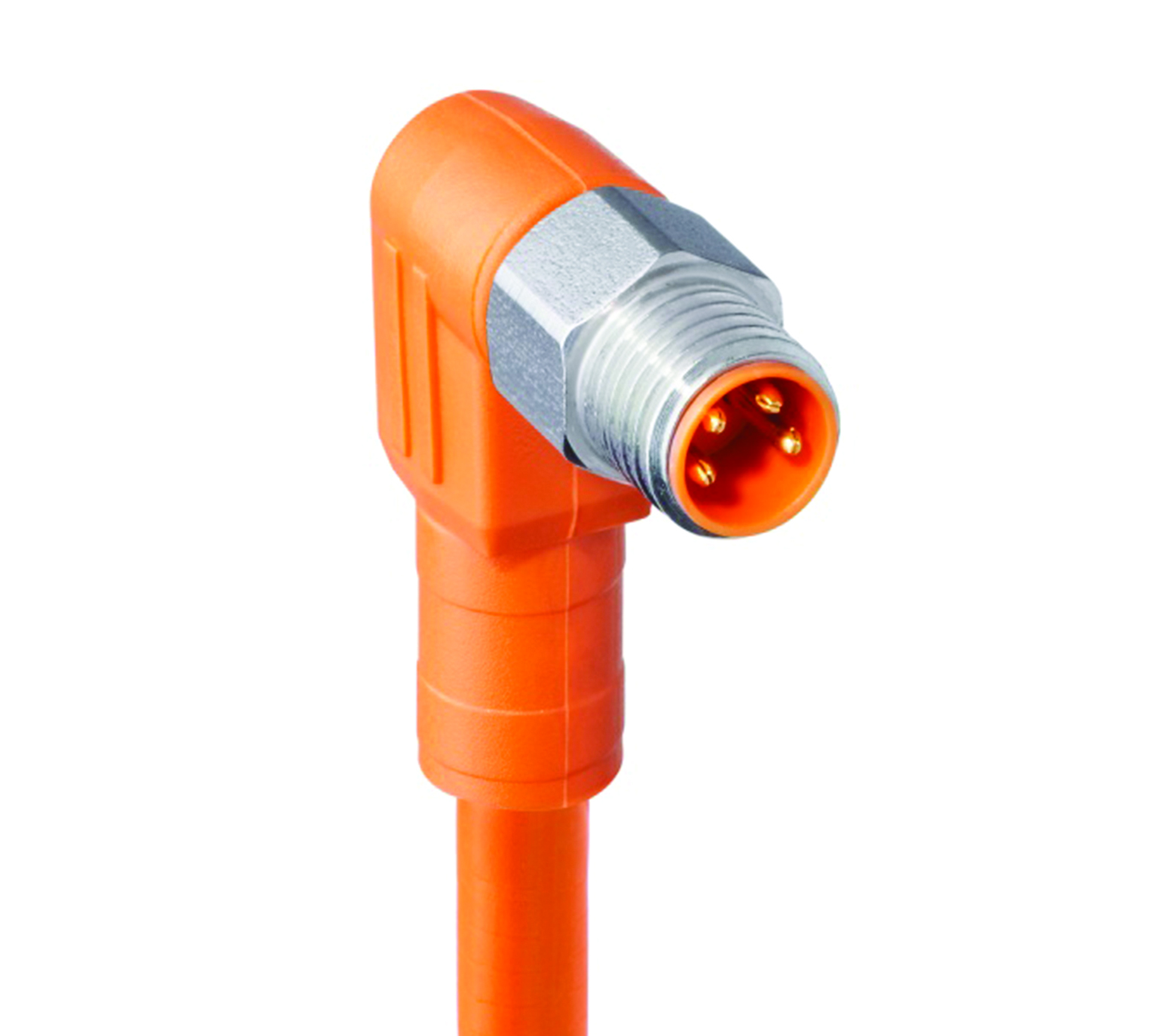

M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset: Male, angled, 4-pin, A-coded, orange body, 30 V AC/DC, 4 A; PVC orange cable, 4-wires, 0.25 mm2
M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset: Male, angled, 4-pin, A-coded, orange body, 30 V AC/DC, 4 A; PVC orange cable, 4-wires, 0.25 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 5
Part numbers
PRSMWV 4-07 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 934775006 | PRSMWV 4-07/2 M - 69K | 2 m | Order online |
| 934775007 | PRSMWV 4-07/5 M - 69K | 5 m | Order online |
| 934775008 | PRSMWV 4-07/10 M - 69K | 10 m | Order online |
| 934775009 | PRSMWV 4-07/15 M - 69K | 15 m | Order online |
| 934775010 | PRSMWV 4-07/20 M - 69K | 20 m | Order online |
Specifications
Information
| Product Family | Sensor / Actuator Connectors |
|---|---|
| Side 1 Product Sub Family | M8 F&B (PVC) |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Angled |
| Number of Pins | 4 |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Coupling Screw |
| Voltage Rating | 30 V |
| Rated Impulse Voltage | 0.8 kV |
| Operating Voltage | 30 V AC/DC |
| Current Rating | 4 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 25 °C - + 70 °C |
| Protection Degree / IP Rating** | IP65, IP67, IP69K |
| Side 1 Design Standard | IEC 61076-2-104 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
Face View
| Pin 1 | brown |
|---|---|
| Pin 2 | white |
| Pin 3 | blue |
| Pin 4 | black |
Materials
| Contact Base Material | CuSn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PVC |
| Contact Bearer Color | Orange |
| Molded Body Material | PVC |
| Molded Body Color | Orange |
| Attachment Material | Stainless Steel |
Circuitry
| Fastening Torque (Attachment) | M 8x1: 30 Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 007 |
|---|---|
| Conductor Size | 0.25 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1 M |
| Conductor Material | Cu |
| Cable Jacket Material | PVC |
| Cable Jacket Color | orange |
| Cable Diameter D | ø 5.0 ± 0.2 mm |
| Wire Insulation Material | PVC |
| Insulated Wire Diameter | ø 1.35 mm |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation) | + 5 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Drag Chain Inst) | + 5 °C - + 60 °C |
| UL Cable Type | AWM: 2464 |
| Flammability Class (Cable Jacket) | DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1 |
| Cable Characteristics | Free of lacquer wetting disturbing substances; Exclusion of silicone |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Oil Resistance | Good chemical and oil resistance |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
