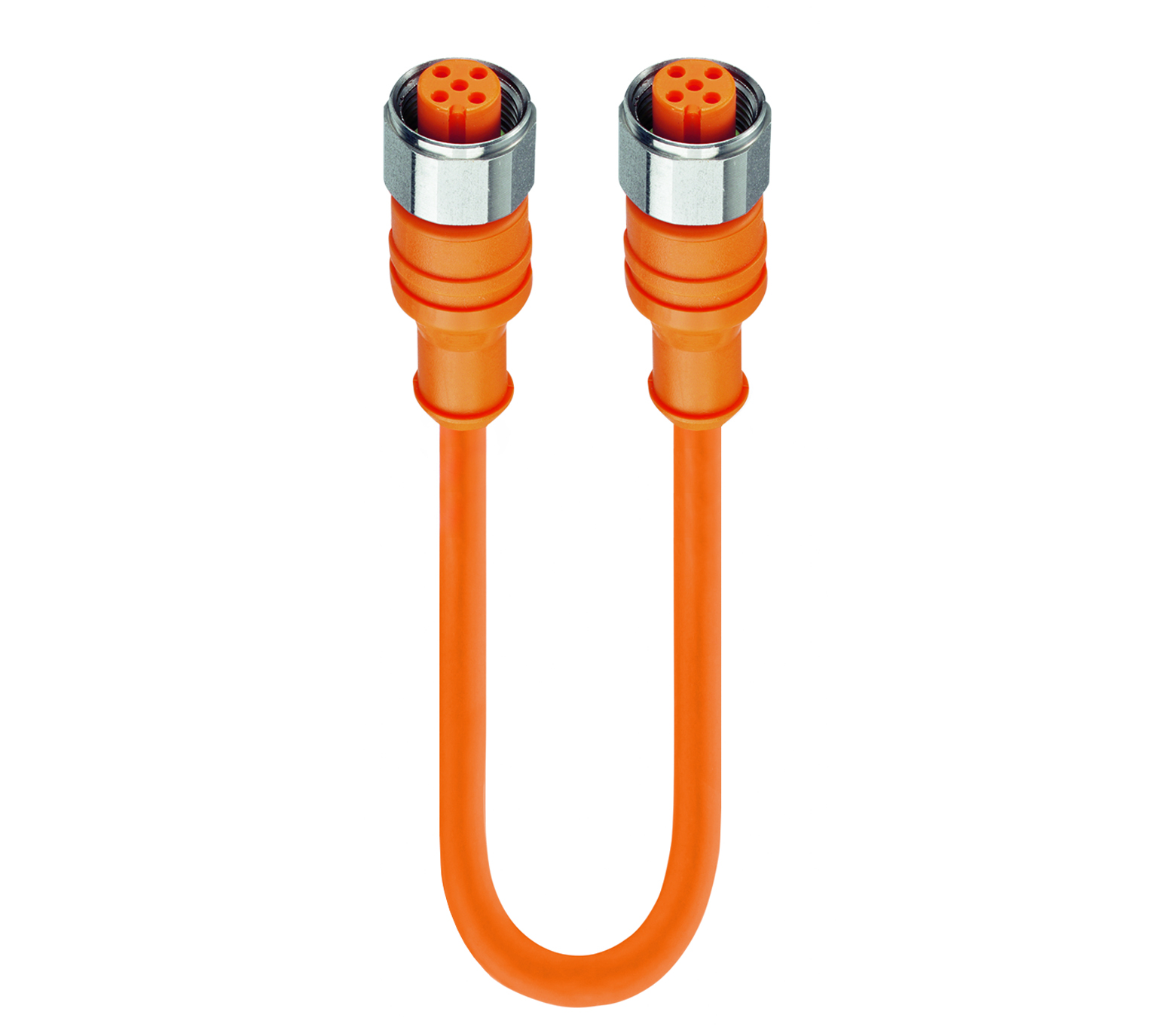

Sensor/Actuator Double-Ended Cordset: Female straight A-coded orange 5-pin M12 F&B (PVC) connector to female straight A-coded orange 5-pin M12 F&B (PVC) connector, 50 V AC / 60 V DC, 4 A; PVC orange cable, 5-wires, 0.34 mm2
Sensor/Actuator Double-Ended Cordset: Female straight A-coded orange 5-pin M12 F&B (PVC) connector to female straight A-coded orange 5-pin M12 F&B (PVC) connector, 50 V AC / 60 V DC, 4 A; PVC orange cable, 5-wires, 0.34 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
PRKT 5-PRKT 5-56 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 22286 | PRKT 5-PRKT 5-56/0,4 M | 0.4 m | Order online |
Specifications
Information
| Product Family | Sensor / Actuator Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Unshielded |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note Derating | Notice derating |
Face View Side 1
| Pin 1 | brown |
|---|---|
| Pin 2 | white |
| Pin 3 | blue |
| Pin 4 | black |
| Pin 5 | grey |
Face View Side 2
| Pin 1 | brown |
|---|---|
| Pin 2 | white |
| Pin 3 | blue |
| Pin 4 | black |
| Pin 5 | grey |
Technical Data Side 1
| Side 1 Product Sub Family | M12 F&B (PVC) |
|---|---|
| Side 1 Type of Contact/Gender | Female |
| Connector Design | Straight |
| Attachment Type | Coupling Nut |
| Number of Pins | 5 |
| Coding, Side 1 | A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 25 °C - + 50 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuSn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PVC |
| Contact Bearer Color | Orange |
| Molded Body Material | PVC |
| Molded Body Color | Orange |
| Attachment Material | Stainless Steel |
| O-Ring Material | EPDM, black |
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
| Note | Do not connect or disconnect under load. |
Cable Data
| Cable Number | 056 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 5 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1 M |
| Conductor Material | Cu |
| Cable Jacket Material | PVC class 43 |
| Cable Jacket Color | orange |
| Cable Diameter D | ø 5.70 ± 0.20 mm |
| Wire Insulation Material | PVC class 43 |
| Insulated Wire Diameter | ø 1.50 mm |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | + 5 °C - + 80 °C |
| Ambient Temperature (Drag Chain Inst) | + 5 °C - + 60 °C |
| UL Cable Type | AWM: 2464 |
| Flammability Class (Cable Jacket) | DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1 |
| Cable Characteristics | LABS-free of lacquer wetting disturbing substances; Exclusion of silicone |
Technical Data Side 2
| Side 2 Product Sub Family | M12 F&B (PVC) |
|---|---|
| Side 2 Type of Contact/Gender | Female |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Coupling Nut |
| Number of Pins, Side 2 | 5 |
| Coding, Side 2 | A |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Ambient Temperature (Operation), Side 2* | - 25 °C - + 50 °C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Design Standard, Side 2 | IEC 61076-2-101 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | CuSn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | PVC |
| Contact Bearer Color, Side 2 | Orange |
| Molded Body Material, Side 2 | PVC |
| Molded Body Color, Side 2 | Orange |
| Attachment Material, Side 2 | Stainless Steel |
| O-Ring Material, Side 2 | EPDM, black |
| Fastening Torque (Attachment), Side 2 | M 12x1: (50-60) Ncm, hand-tight |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Oil Resistance | Good chemical and oil resistance |
|---|
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| Note Derating | Notice derating |
