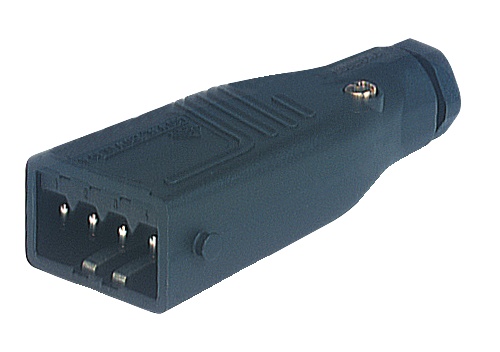

Rectangular Field Attachable Power Connector (ST Series): Male, straight with strain relief , 4-pin+PE, black housing, 400 V AC/230 V DC, 10 A
Rectangular Field Attachable Power Connector (ST Series): Male, straight with strain relief , 4-pin+PE, black housing, 400 V AC/230 V DC, 10 A
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
STAS 4 N black is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 934442100 | STAS 4 N black | Order online |
Specifications
Face View
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | ST-Series |
| Connector Type | Field attachable |
| Side 1 Type of Contact/Gender | male |
| Connector Design | Straight with strain relief |
| Number of Pins | 4+PE |
| Shielding Type | Unshielded |
| Attachment Type | safety bracket |
| Voltage Rating | 400 V AC / 250 V DC |
| Rated Impulse Voltage | 2.5 kV |
| Operating Voltage | 400 V AC / 230 V DC |
| Current Rating | 10 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Mating Cycles | max. 50 |
| Type of Connection | screw terminal |
| Cable Gland | M16 x 1.5 |
| Cross Section | 0.25 mm2 to 1.50 mm2 |
| Strain-Relief | Cable clamp |
| Suitable Cables | Ø6 mm to Ø10 mm |
| Ambient Temperature (Operation)* | -30°C to +90°C, notice Derating |
| Protection Degree / IP Rating** | IP54 |
| Side 1 Design Standard | DIN EN 61984 (VDE 0627) |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Sn |
| Contact Bearer Material | PA GF |
| Contact Bearer Color | black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Housing Material | PA GF |
| Housing Color | black |
| Flammability Class (Housing) | UL 94 HB |
| Cable Gland Material | PA GF |
| Cable Gland Gasket | NBR (cable gland) |
| Cable Gland Color | black |
| Flammability Class (Cable Gland) | UL 94 V-0 |
| Strain-Relief Material | PA GF |
Circuitry
| Fastening Torque (Contact Screw) | M3: (25-30) Ncm |
|---|---|
| Fastening Torque (Cable Gland) | M 16x1.5: (250-375) Ncm |
| Fastening torque (strain relief screw) | BZ 2.9x14: (40-50) Ncm |
| Fastening Torque (Attachment) | BZ 2.9x14: (40-50) Ncm |
| Accessories to Order Separately | STASI 4, 732-049-..., safety bracket |
Approvals
| UL-File | E95522 |
|---|---|
| UL | UL |
| VDE | VDE 61984 |
| SEV | SEV |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
