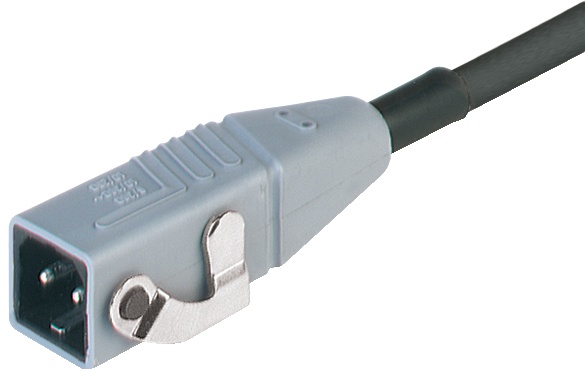

Sinlge-Ended Cordset (ST Series): Male, straight with safety bracket, 2-pin+PE, grey housing, 230 V AC/DC, 10 A AC/6 A DC
Sinlge-Ended Cordset (ST Series): Male, straight with safety bracket, 2-pin+PE, grey housing, 230 V AC/DC, 10 A AC/6 A DC
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
STAS 2 K 075 SI is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 972246008 | STAS 2 K 075 SI 1000mm | 1 m | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | ST-Series |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | male |
| Connector Design | Straight with safety bracket |
| Number of Pins | 2+PE |
| Shielding Type | Unshielded |
| Attachment Type | safety bracket |
| Voltage Rating | 250 V AC/DC |
| Rated Impulse Voltage | 2.5 kV |
| Operating Voltage | 230 V AC/DC |
| Current Rating | 10 A AC / 6 A DC |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Mating Cycles | max. 50 |
| Type of Connection | solder |
| Cross Section | 0.75 mm2 |
| Ambient Temperature (Operation)* | -30°C to +90°C, notice Derating |
| Protection Degree / IP Rating** | IP54 |
| Side 1 Design Standard | DIN EN 61984 (VDE 0627) |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
Face View
| Pin 1 | blue |
|---|---|
| Pin 2 | brown |
| PE | green-yellow |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Sn |
| Contact Bearer Material | PA GF |
| Contact Bearer Color | black |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | PA GF |
| Housing Color | grey |
| Flammability Class (Housing) | UL 94 HB |
Circuitry
| Accessories to Order Separately | STASI 2, 732-044-..., safety bracket |
|---|
Cable Data
| Cable Number | H05RR-F 3G0.75 |
|---|---|
| Cable Length | 1 m |
| Conductor Size | 0.75 mm2 |
| Number of Wires | 3 |
| Cable Jacket Material | EM 3 (EPDM) |
| Wire Insulation Material | EI 4 (EPDM) |
| Ambient Temperature (Fixed Installation) | -25°C to +60°C |
Approvals
| VDE | VDE 61984 |
|---|---|
| SEV | SEV |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
