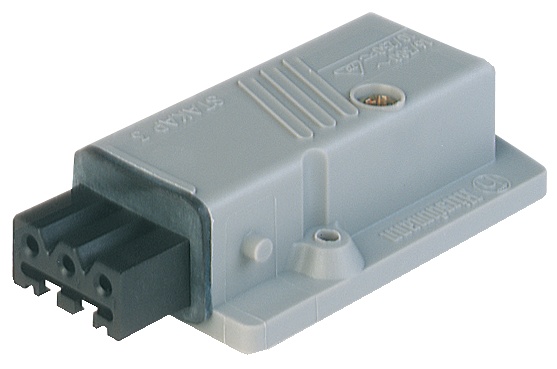

Rectangular Receptacle Power Connector (ST Series): Female, panel mount, 3-pin+PE, grey housing, 400 V AC / 230 V DC, 16 A AC/10 A DC
Rectangular Receptacle Power Connector (ST Series): Female, panel mount, 3-pin+PE, grey housing, 400 V AC / 230 V DC, 16 A AC/10 A DC
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
STAKAP 3 N is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 932513106 | STAKAP 3 N | Order online |
Specifications
Face View
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | ST-Series |
| Connector Type | Receptacle |
| Side 1 Type of Contact/Gender | female |
| Connector Design | Panel Mount with flange |
| Number of Pins | 3+PE |
| Shielding Type | Unshielded |
| Attachment Type | safety bracket |
| Voltage Rating | 400 V AC / 250 V DC |
| Rated Impulse Voltage | 2.5 / 4.0 kV |
| Operating Voltage | 400 V AC / 230 V DC |
| Current Rating | 16 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Mating Cycles | max. 50 |
| Type of Connection | screw terminal |
| Cross Section | 0.25 mm2 to 1.50 mm2 |
| Ambient Temperature (Operation)* | -30°C to +90°C, notice Derating |
| Temperature Range (Gasket) | -30°C to +90°C |
| Protection Degree / IP Rating** | IP54 |
| Side 1 Design Standard | DIN EN 61984 (VDE 0627) |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Sn |
| Contact Bearer Material | PA GF |
| Contact Bearer Color | black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Housing Material | PA GF |
| Housing Color | grey |
| Flammability Class (Housing) | UL 94 HB |
| Gasket Material | NBR |
Circuitry
| Fastening Torque (Contact Screw) | M3: (25-30) Ncm |
|---|---|
| Fastening torque (mounting screw) | M 2.5: (40-50) Ncm, flange |
| Fastening Torque (Attachment) | BZ 2.9x14: (40-50) Ncm |
| Mount Type | Screw: M 2.5 (3x) |
| Accessories to Order Separately | STASI 3, 732-045-..., safety bracket |
Approvals
| UL-File | E95522 |
|---|---|
| UL | UL |
| VDE | VDE 61984 |
| SEV | SEV |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
