Sinlge-Ended Cordset (ST Series): Female, straight, 3-pin+PE, black housing, 400 V AC/230 V DC, 10 A
Sinlge-Ended Cordset (ST Series): Female, straight, 3-pin+PE, black housing, 400 V AC/230 V DC, 10 A
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers

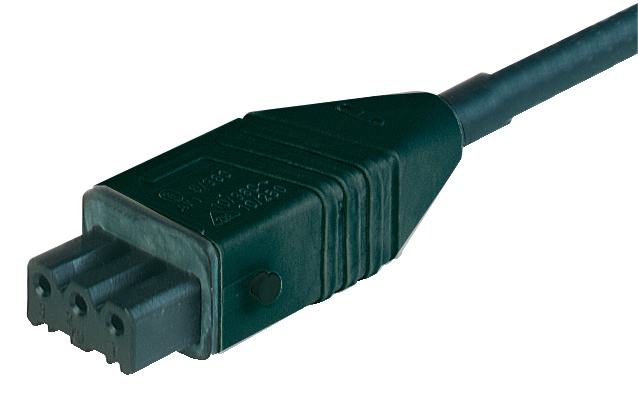

STAK 3 K 075 black is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 932187041 | STAK 3 K 075 1m | 1 m | Order online |
| 932187011 | STAK 3 K 075 3025MM | 3 m | Order online |
| 932187015 | STAK 3 K 075 5 M | 5 m | Order online |
| 932187016 | STAK 3 K 075 10 M | 10 m | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | ST-Series |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | female |
| Connector Design | straight |
| Number of Pins | 3+PE |
| Shielding Type | Unshielded |
| Attachment Type | safety bracket |
| Voltage Rating | 400 V AC / 250 V DC |
| Rated Impulse Voltage | 2.5 / 4.0 kV |
| Operating Voltage | 400 V AC / 230 V DC |
| Current Rating | 10 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Mating Cycles | max. 50 |
| Type of Connection | solder |
| Cross Section | 0.75 mm2 |
| Ambient Temperature (Operation)* | -30°C to +90°C, notice Derating |
| Temperature Range (Gasket) | -30°C to +90°C |
| Protection Degree / IP Rating** | IP54 |
| Side 1 Design Standard | DIN EN 61984 (VDE 0627) |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
Face View
| Pin 1 | brown |
|---|---|
| Pin 2 | blue |
| Pin 3 | black |
| PE | green-yellow |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Sn |
| Contact Bearer Material | PA GF |
| Contact Bearer Color | black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Molded Body Material | PA GF |
| Housing Color | black |
| Flammability Class (Housing) | UL 94 HB |
| Gasket Material | NBR |
Circuitry
| Accessories to Order Separately | STASI 3, 732-045-..., safety bracket |
|---|
Cable Data
| Cable Number | H05RR-F 4G0.75 |
|---|---|
| Conductor Size | 0.75 mm2 |
| Number of Wires | 4 |
| Cable Jacket Material | EM 3 (EPDM) |
| Wire Insulation Material | EI 4 (EPDM) |
| Ambient Temperature (Fixed Installation) | -25°C to +60°C |
Approvals
| VDE | VDE 61984 |
|---|---|
| SEV | SEV |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
