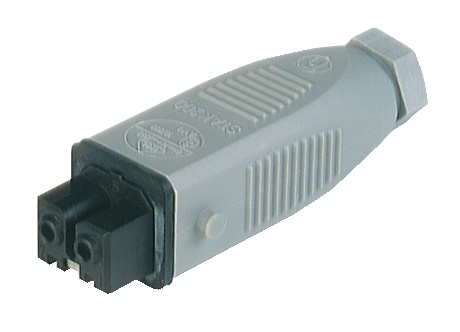

Rectangular Field Attachable Power Connector (ST Series): Female, straight with strain relief and coding slot , 2-pin+PE, grey housing, 230 V AC/DC, 16 A AC/6 A DC
Rectangular Field Attachable Power Connector (ST Series): Female, straight with strain relief and coding slot , 2-pin+PE, grey housing, 230 V AC/DC, 16 A AC/6 A DC
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
STAK 200 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 932037106 | STAK 200 | Order online |
Specifications
Face View
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | ST-Series |
| Connector Type | Field attachable |
| Side 1 Type of Contact/Gender | female |
| Connector Design | Straight with strain relief and coding slot |
| Number of Pins | 2+PE |
| Coding, Side 1 | coding slot |
| Shielding Type | Unshielded |
| Attachment Type | safety bracket |
| Voltage Rating | 250 V AC/DC |
| Rated Impulse Voltage | 2.5 kV |
| Operating Voltage | 230 V AC/DC |
| Current Rating | 16 A AC / 10 A DC |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Mating Cycles | max. 50 |
| Type of Connection | screw terminal |
| Cable Gland | PG 7 |
| Cross Section | 0.25 mm2 to 1.50 mm2 |
| Strain-Relief | Cable clamp |
| Suitable Cables | Ø4 mm to Ø6.5 mm |
| Ambient Temperature (Operation)* | -30°C to +90°C, notice Derating |
| Temperature Range (Gasket) | -30°C to +90°C |
| Protection Degree / IP Rating** | IP54 |
| Side 1 Design Standard | DIN EN 61984 (VDE 0627) |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Sn |
| Contact Bearer Material | PA GF |
| Contact Bearer Color | black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Housing Material | PA GF |
| Housing Color | grey |
| Flammability Class (Housing) | UL 94 HB |
| Cable Gland Material | PA GF |
| Cable Gland Gasket | NBR (cable gland) |
| Cable Gland Color | grey |
| Flammability Class (Cable Gland) | UL 94 V-0 |
| Strain-Relief Material | CuZn, nickel-plated |
| Gasket Material | NBR (flat gasket) |
Circuitry
| Fastening Torque (Contact Screw) | M3: (25-30) Ncm |
|---|---|
| Fastening Torque (Cable Gland) | PG 7:(150-250) Ncm |
| Fastening torque (strain relief screw) | M 2: (30-40) Ncm |
| Fastening Torque (Attachment) | M 2.5: (40-50) Ncm, housing |
| Accessories to Order Separately | STASI 2, 732-044-..., safety bracket |
Approvals
| UL-File | E95522 |
|---|---|
| UL | UL |
| VDE | VDE 61984 |
| SEV | SEV |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
