7/8 - Male 90° | #Contacts: 4 | 300 V | Cable TPE YE, 18 AWG, IEC | cURus"

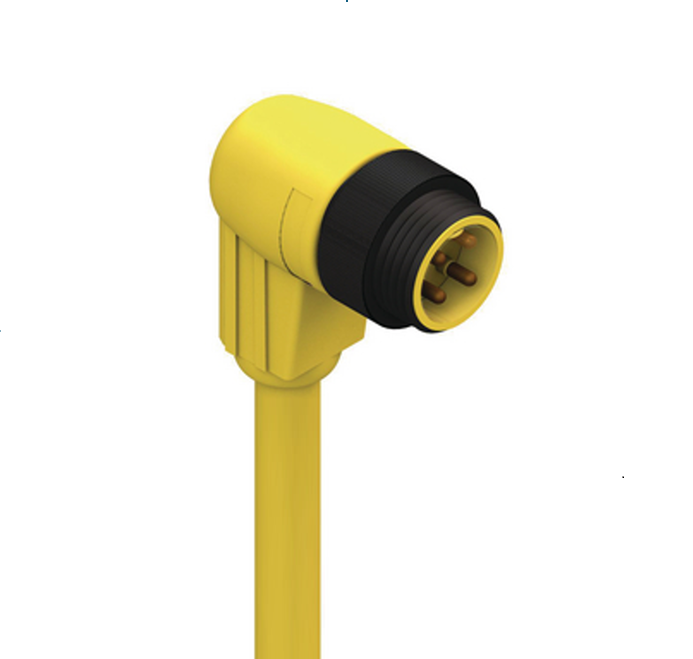

7/8 Molded Cordset Male Angled | #Contacts: 4 | 300 V / 5.6 A | Cable TPE Yellow, 4x18 AWG, IEC | cURus 2238"
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
RSW 40-637 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 500002954 | RSW 40-637/3F | 3 ft | Order online |
| 500002778 | RSW 40-637/15F | 15 ft | Order online |
| 500004068 | RSW 40-637/33F | 33 ft | Order online |
Specifications
Face View
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | MINI 7/8" |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | Molded | 7/8" Male | Angled |
| Number of Pins | 4 |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Male Thread, Coupling Screw |
| Rated Voltage (UL) | 300 V |
| Rated Current (UL)* | 5.6 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C to + 90°C |
| Protection Degree / IP Rating** | IP65, IP67, NEMA 6P |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
Materials
| Contact Base Material | Copper Alloy (CuZn) |
|---|---|
| Side 1 Contact Plating | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color | Yellow |
| Molded Body Material | Thermoplastic polyurethane (TPU) |
| Molded Body Color | Yellow |
| Attachment Material | Aluminum (Al) |
| Attachment Plating | Anodized Black |
Circuitry
| Fastening Torque (Attachment) | MINI: 70 Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 637 |
|---|---|
| Conductor Size | 18 AWG |
| Number of Wires | 4 |
| Conductor Material | Cu |
| Cable Jacket Material | TPE |
| Cable Jacket Color | Yellow |
| Cable Diameter D | .280" (7.1 mm) |
| Overall Shield (Cable) | Unshielded |
| UL Cable Type | PLTC |
| Cable Characteristics | See downloads tab for details |
Approvals
| UL | UL 2238; cURus |
|---|
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
