RSUF 19-RKU 19-355

Product Number: RSUF 19-RKU 19-355

Obsolete | Replacement: RSUF 19-RKU 19-242

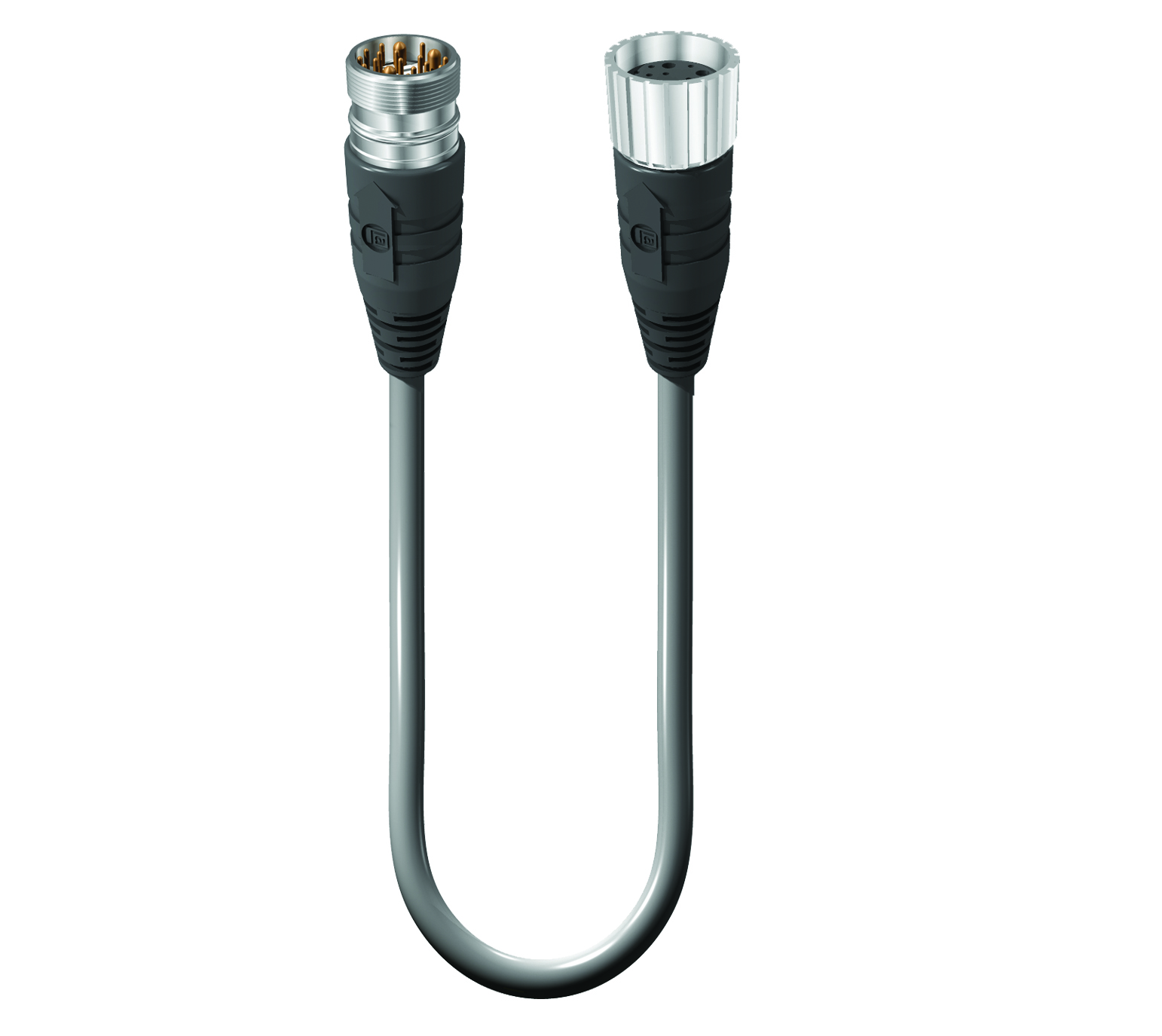

M23 - Double-Ended Cordset: M23 - Male Straight | #Contacts: 19 | M23 - Female Straight | #Contacts: 19 |120 V / 16x8 A + 3x10 A | Grey PUR Jacket, 16x0.5 mm2 (20 AWG) + 3x1.0 mm2 (17 AWG), IEC

Availability
Global
Status
Obsolete
Orderable items
3
Request a quoteOrder options (3)

Ships from and sold by A5 IT.

Part numbers

RSUF 19-RKU 19-355 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #Item DescriptionCable LengthOrder
5946RSUF 19-RKU 19-355/3 M3 mOrder online
6003RSUF 19-RKU 19-355/5 M5 mOrder online
6759RSUF 19-RKU 19-242/10 M10 mOrder online

Specifications

Information

Product FamilyPower Connector
Connector TypeCordset, double ended
Shielding TypeUnshielded
Voltage Rating125 V
Rated Impulse Voltage1.5 kV
Operating Voltage120 V AC/DC
Current Rating16 x 8 A (pin-Ø 1 mm), 3 x 10 A (contact-Ø 1.5 mm)
Protection Degree / IP Rating NoteIP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating* Notice derating
ParticularitiesWhen the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.

Face View Side 1

Pin 1violet
Pin 2red
Pin 3grey
Pin 4red-blue
Pin 5green
Pin 6blue
Pin 7grey-pink
Pin 8white-green
Pin 9white-yellow
Pin 10white-grey
Pin 11black
Pin 12green-yellow
Pin 13yellow-brown
Pin 14brown-green
Pin 15white
Pin 16yellow
Pin 17pink
Pin 18grey-brown
Pin 19brown

Face View Side 2

Pin 1violet
Pin 2red
Pin 3grey
Pin 4red-blue
Pin 5green
Pin 6blue
Pin 7grey-pink
Pin 8white-green
Pin 9white-yellow
Pin 10white-grey
Pin 11black
Pin 12green-yellow
Pin 13yellow-brown
Pin 14brown-green
Pin 15white
Pin 16yellow
Pin 17pink
Pin 18grey-brown
Pin 19brown

Technical Data Side 1

Side 1 Product Sub FamilyM23 Power
Side 1 Type of Contact/GenderPin Contact / Male
Connector DesignM23 | Male |19 Pole | 0° | Fixed Thread
Attachment TypeExternal thread fixed
Number of Pins19
Insulation Resistance˃ 10^9 Ohm
Mating Cycles≤ 100
Cross Section16x0.5mm2 + 3x1.0 mm2
Ambient Temperature (Operation)*- 25 °C to + 80 °C
Protection Degree / IP Rating**IP67
Side 1 Pollution Degree3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distanceacc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage CategoryII acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base MaterialBrass (CuZn)
Side 1 Contact PlatingGold over Copper (Cu/Au)
Contact Bearer MaterialPolybutylene terephthalate (PBT)
Contact Bearer ColorWhite
Flammability Class (Contact Bearer)UL 94 V0
Molded Body MaterialThermoplastic Polyurethane (TPU)
Molded Body ColorBlack
Flammability Class (Molded Body)UL 94-HB
Attachment MaterialBrass (CuZn)
Attachment PlatingNickel (Ni)
O-Ring MaterialFluorocarbon rubber (FKM)
NoteDo not connect / disconnect under load.

Cable Data

Cable Number355
Conductor Size16x0.5mm2 + 3x1.0 mm2
Number of Wires19
Minimal Bending Radius (Fixed Inst)˃ 5 x D
Minimal Bending Radius (Flexible Inst)˃ 10 x D
Cycles (Bending)˃ 5 M
Cycles (Torsion)˃ 5 M @ ± 360 °/1 m
Conductor MaterialCu
Cable Jacket MaterialPolyurethane (PUR)
Cable Jacket ColorGrey
Cable Diameter DØ 11.60
Wire Insulation MaterialThermoplastic elastomers (TPE)
Insulated Wire Diameter16 x Ø 1.60 mm [0.063"] + 3 x Ø 2.00 mm [0.079"]
Ambient Temperature (Fixed Installation)- 50 °C to + 80 °C
Ambient Temperature (Flex Installation)- 25 °C to + 80 °C
UL Cable TypeAWM: 20549
Flammability Class (Cable Jacket)IEC 60332-2 , VDE 0482-265-2-2 , EN 50265-2-2, CSA-FT2; non fire propagating and self-extinguishing
Cable CharacteristicsFlexibility: Excellent | Abrasion Resistance: Excellent | Oil & Chemical Resistance: Excellent | UV Resistance: Excellent | Low Temp Performance: Excellent (flexible to -40°C) | Flame Retardance: Good | Halogen-Free: Yes | Mechanical Durability: Excellent (resists impact, tear, and flex) |Drag Chain | Environmental Suitability: Outdoor, oily, wet, or rough environments

Technical Data Side 2

Side 2 Product Sub FamilyM23 Power
Side 2 Type of Contact/GenderSocket Contact / Female
Connector Design, Side 2M23 | Female |19 Pole | 0°
Attachment Type, Side 2Coupling Nut
Number of Pins, Side 219
Insulation Resistance, Side 2˃ 10^9 Ohm
Mating Cycles, Side 2≤ 100
Conductor Cross Section, Side 216x0.5mm2 + 3x1.0 mm2
Ambient Temperature (Operation), Side 2*- 25 °C to + 80 °C
Protection Degree / IP Rating, Side 2**IP67
Pollution Degree, Side 23 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance, Side 2acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2II acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2Brass (CuZn)
Contact Plating, Side 2Gold over Copper (Cu/Au)
Contact Bearer Material, Side 2Polyamide (Nylon), PA 6.6
Contact Bearer Color, Side 2Black
Flammability Class (Contact Bearer), Side 2UL 94-HB
Molded Body Material, Side 2Thermoplastic Polyurethane (TPU)
Molded Body Color, Side 2Black
Flammability Class (Molded Body), Side 2UL 94-HB
Attachment Material, Side 2Brass (CuZn)
Attachment Plating, Side 2Nickel (Ni)
O-Ring Material, Side 2Fluorocarbon rubber (FKM)
Note, Side 2Do not connect / disconnect under load.

Safety & Environmental Compliance

RoHS CompliantYes

Resistances

HalogenfreeYes
Oil ResistanceYes

Notes

Protection Degree / IP Rating NoteIP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating* Notice derating
ParticularitiesWhen the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.

Resources

Belden RSUF 19-RKU 19-355 technical datasheetIndustrial Power Connectors
