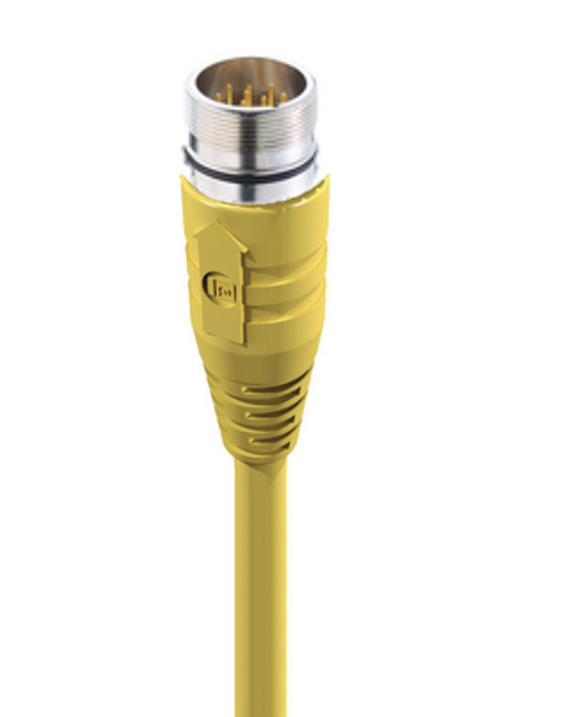

M23 - Male 0° | #Contacts: 12 | 120 V | Cable: Yellow (TPE); 8x0.5 mm2 + 3x1.0 mm2; IEC
M23 - Male Straight Cordset | #Contacts: 12 | 120 V / 8 A | Yellow TPE Jacket, 8x0.5 mm2 (20 AWG) + 3x1.0 mm2 (17 AWG), IEC
- Availability
- Global
- Status
- Active
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | M23 Power |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | M23 | Male |12 Pole | 0° | Fixed Thread |
| Number of Pins | 12 |
| Shielding Type | Unshielded |
| Attachment Type | Male Thread (coupling screw) |
| Voltage Rating | 125 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 110 V AC/DC |
| Current Rating | 8 A |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Cross Section | 8x0.5mm2 + 3x1.0 mm2 |
| Ambient Temperature (Operation)* | - 25 °C to + 80 °C |
| Protection Degree / IP Rating** | IP67 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | Do not connect / disconnect under load. |
| Particularities | When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54. |
Face View
| Pin 1 | white |
|---|---|
| Pin 2 | green |
| Pin 3 | yellow |
| Pin 4 | grey |
| Pin 5 | grey-pink |
| Pin 6 | red-blue |
| Pin 7 | white-green |
| Pin 8 | brown-green |
| Pin 9 | blue |
| Pin 10 | blue (bridge to pin 9) |
| Pin 11 | brown |
| Pin 12 | green-yellow |
Materials
| Contact Base Material | Brass (CuZn) |
|---|---|
| Side 1 Contact Plating | Gold over Copper (Cu/Au) |
| Contact Bearer Material | Polybutylene terephthalate (PBT) |
| Contact Bearer Color | White |
| Flammability Class (Contact Bearer) | UL 94 V0 |
| Molded Body Material | Thermoplastic Polyurethane (TPU) |
| Molded Body Color | Yellow |
| Flammability Class (Molded Body) | UL 94-HB |
| Attachment Material | Brass (CuZn) |
| Attachment Plating | Nickel (Ni) |
| O-Ring Material | Fluorocarbon rubber (FKM) |
| Gasket Material | Fluorocarbon rubber (FKM) |
Cable Data
| Cable Number | S4741 |
|---|---|
| Conductor Size | 8x0.5mm2 + 3x1.0 mm2 |
| Number of Wires | 11 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 2 M |
| Conductor Material | Cu |
| Cable Jacket Material | Thermoplastic elastomers (TPE) |
| Cable Jacket Color | Yellow |
| Cable Diameter D | Ø 10.00 [0.39]" |
| Wire Insulation Material | Polypropylene (PP) |
| Insulated Wire Diameter | 8 x Ø 1.45 mm [ 0.6 ] + 3 x Ø 1.95 mm[ 0.8" ]" |
| Ambient Temperature (Fixed Installation) | - 25 °C to + 80 °C (PLTC 75 °C) |
| Ambient Temperature (Flex Installation) | - 5 °C to + 80 °C (PLTC 75 °C) |
| Ambient Temperature (Drag Chain Inst) | - 25 °C to + 60 °C |
| UL Cable Type | PLTC |
| Flammability Class (Cable Jacket) | DIN EN 60332-1-2, VDE 0482-332-2-2, IEC 60332-1-2, UL 1685 vertical tray |
| Cable Characteristics | Flexibility: Excellent | Abrasion Resistance: Good | Oil & Chemical Resistance: Excellent | UV Resistance: Good | Low Temp Performance: Good (flexible to -40°C) | Flame Retardance: Fair to Good | Halogen-Free: Yes | Mechanical Durability: Good (resists impact, tear, and flex) |Drag Chain: Yes | Environmental Suitability: Outdoor, oily, wet, or rough environments |
Safety & Environmental Compliance
| REACH | Yes |
|---|---|
| RoHS Compliant | Yes |
Resistances
| Halogenfree | No |
|---|---|
| Oil Resistance | Yes |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | Do not connect / disconnect under load. |
| Particularities | When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54. |
