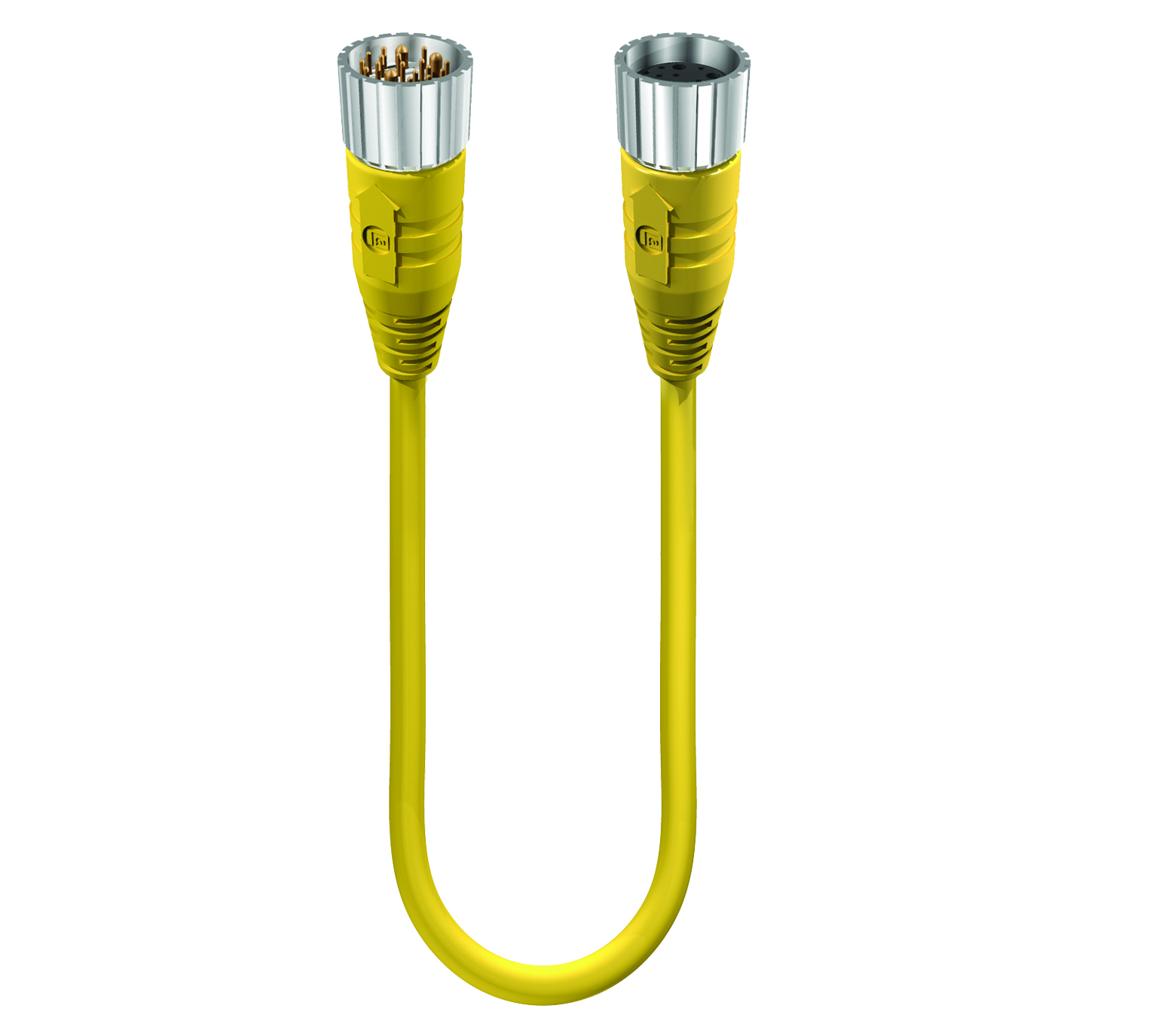

M23 - Male 0° to Female 0° | #Contacts: 19 |120 V | Cable: Yellow (TPE); 16x0.5 mm2 + 3x1.0 mm2; IEC
M23 - Double-Ended Cordset: M23 - Male Straight | #Contacts: 19 | M23 - Female Straight | #Contacts: 19 |120 V / 16x8 A + 3x10 A | Yellow TPE Jacket, 16x0.5 mm2 (20 AWG) + 3x1.0 mm2 (17 AWG), IEC
- Availability
- Global
- Status
- Active
- Orderable items
- 14
Part numbers
RSU 19-RKU 19-S4740 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 6279 | RSU 19-RKU 19-S4740/1 M | 1 m | Order online |
| 6280 | RSU 19-RKU 19-S4740/2 M | 2 m | Order online |
| 6281 | RSU 19-RKU 19-S4740/3 M | 3 m | Order online |
| 6282 | RSU 19-RKU 19-S4740/4 M | 4 m | Order online |
| 2343 | RSU 19-RKU 19-S4740/5 M | 5 m | Order online |
| 6283 | RSU 19-RKU 19-S4740/6 M | 6 m | Order online |
| 6284 | RSU 19-RKU 19-S4740/7 M | 7 m | Order online |
| 6285 | RSU 19-RKU 19-S4740/8 M | 8 m | Order online |
| 6286 | RSU 19-RKU 19-S4740/9 M | 9 m | Order online |
| 2344 | RSU 19-RKU 19-S4740/10 M | 10 m | Order online |
| 6287 | RSU 19-RKU 19-S4740/15 M | 15 m | Order online |
| 6288 | RSU 19-RKU 19-S4740/20 M | 20 m | Order online |
| 16710 | RSU 19-RKU 19-S4740/22 M | 22 m | Order online |
| 6289 | RSU 19-RKU 19-S4740/25 M | 25 m | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Unshielded |
| Voltage Rating | 125 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 120 V AC/DC |
| Current Rating | 16 x 8 A (pin-Ø 1 mm), 3 x 10 A (contact-Ø 1.5 mm) |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note Derating | * Notice derating |
| Particularities | When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54. |
Face View Side 1
| Pin 1 | violet |
|---|---|
| Pin 2 | red |
| Pin 3 | grey |
| Pin 4 | red-blue |
| Pin 5 | green |
| Pin 6 | blue |
| Pin 7 | grey-pink |
| Pin 8 | white-green |
| Pin 9 | white-yellow |
| Pin 10 | white-grey |
| Pin 11 | black |
| Pin 12 | green-yellow |
| Pin 13 | yellow-brown |
| Pin 14 | brown-green |
| Pin 15 | white |
| Pin 16 | yellow |
| Pin 17 | pink |
| Pin 18 | grey-brown |
| Pin 19 | brown |
Face View Side 2
| Pin 1 | violet |
|---|---|
| Pin 2 | red |
| Pin 3 | grey |
| Pin 4 | red-blue |
| Pin 5 | green |
| Pin 6 | blue |
| Pin 7 | grey-pink |
| Pin 8 | white-green |
| Pin 9 | white-yellow |
| Pin 10 | white-grey |
| Pin 11 | black |
| Pin 12 | green-yellow |
| Pin 13 | yellow-brown |
| Pin 14 | brown-green |
| Pin 15 | white |
| Pin 16 | yellow |
| Pin 17 | pink |
| Pin 18 | grey-brown |
| Pin 19 | brown |
Technical Data Side 1
| Side 1 Product Sub Family | M23 Power |
|---|---|
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | M23 | Male |19 Pole | 0° |
| Attachment Type | Coupling Nut |
| Number of Pins | 19 |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Cross Section | 16x0.5mm2 + 3x1.0 mm2 |
| Ambient Temperature (Operation)* | - 25 °C to + 80 °C |
| Protection Degree / IP Rating** | IP67 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | Brass (CuZn) |
| Side 1 Contact Plating | Gold over Copper (Cu/Au) |
| Contact Bearer Material | Polybutylene terephthalate (PBT) |
| Contact Bearer Color | White |
| Flammability Class (Contact Bearer) | UL 94 V0 |
| Molded Body Material | Thermoplastic Polyurethane (TPU) |
| Molded Body Color | Yellow |
| Flammability Class (Molded Body) | UL 94-HB |
| Attachment Material | Brass (CuZn) |
| Attachment Plating | Nickel (Ni) |
| O-Ring Material | Nitrile Butadiene Rubber (NBR) |
| Note | Do not connect / disconnect under load. |
Cable Data
| Cable Number | S4740 |
|---|---|
| Conductor Size | 16x0.5mm2 + 3x1.0 mm2 |
| Number of Wires | 19 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 2 M |
| Conductor Material | Cu |
| Cable Jacket Material | Thermoplastic elastomers (TPE) |
| Cable Jacket Color | Yellow |
| Cable Diameter D | Ø 11.60 |
| Wire Insulation Material | Polypropylene (PP) |
| Insulated Wire Diameter | 16 x Ø 1.45 mm [0.057"] + 3 x Ø 1.95 mm [0.077"] |
| Ambient Temperature (Fixed Installation) | - 25 °C to + 80 °C |
| Ambient Temperature (Flex Installation) | - 5 °C to + 80 °C |
| UL Cable Type | UL13 PLTC 75C and AWM-Style 20841 80C |
| Flammability Class (Cable Jacket) | Vertical tray test UL 1685 |
| Cable Characteristics | Flexibility: Excellent | Abrasion Resistance: Good | Oil & Chemical Resistance: Excellent | UV Resistance: Good | Low Temp Performance: Good (flexible to -40°C) | Flame Retardance: Fair to Good | Halogen-Free: Yes | Mechanical Durability: Good (resists impact, tear, and flex) |Drag Chain: Yes | Environmental Suitability: Outdoor, oily, wet, or rough environments |
Technical Data Side 2
| Side 2 Product Sub Family | M23 Power |
|---|---|
| Side 2 Type of Contact/Gender | Socket Contact / Female |
| Connector Design, Side 2 | M23 | Female |19 Pole | 0° |
| Attachment Type, Side 2 | Coupling Nut |
| Number of Pins, Side 2 | 19 |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Conductor Cross Section, Side 2 | 16x0.5mm2 + 3x1.0 mm2 |
| Ambient Temperature (Operation), Side 2* | - 25 °C to + 80 °C |
| Protection Degree / IP Rating, Side 2** | IP67 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance, Side 2 | acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | Brass (CuZn) |
| Contact Plating, Side 2 | Gold over Copper (Cu/Au) |
| Contact Bearer Material, Side 2 | Polyamide (Nylon), PA 6.6 |
| Contact Bearer Color, Side 2 | Black |
| Flammability Class (Contact Bearer), Side 2 | UL 94-HB |
| Molded Body Material, Side 2 | Thermoplastic Polyurethane (TPU) |
| Molded Body Color, Side 2 | Yellow |
| Flammability Class (Molded Body), Side 2 | UL 94-HB |
| Attachment Material, Side 2 | Brass (CuZn) |
| Attachment Plating, Side 2 | Nickel (Ni) |
| O-Ring Material, Side 2 | Fluorocarbon rubber (FKM) |
| Note, Side 2 | Do not connect / disconnect under load. |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | Yes |
|---|---|
| Oil Resistance | Yes |
Notes
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
|---|---|
| Note Derating | * Notice derating |
| Particularities | When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54. |
