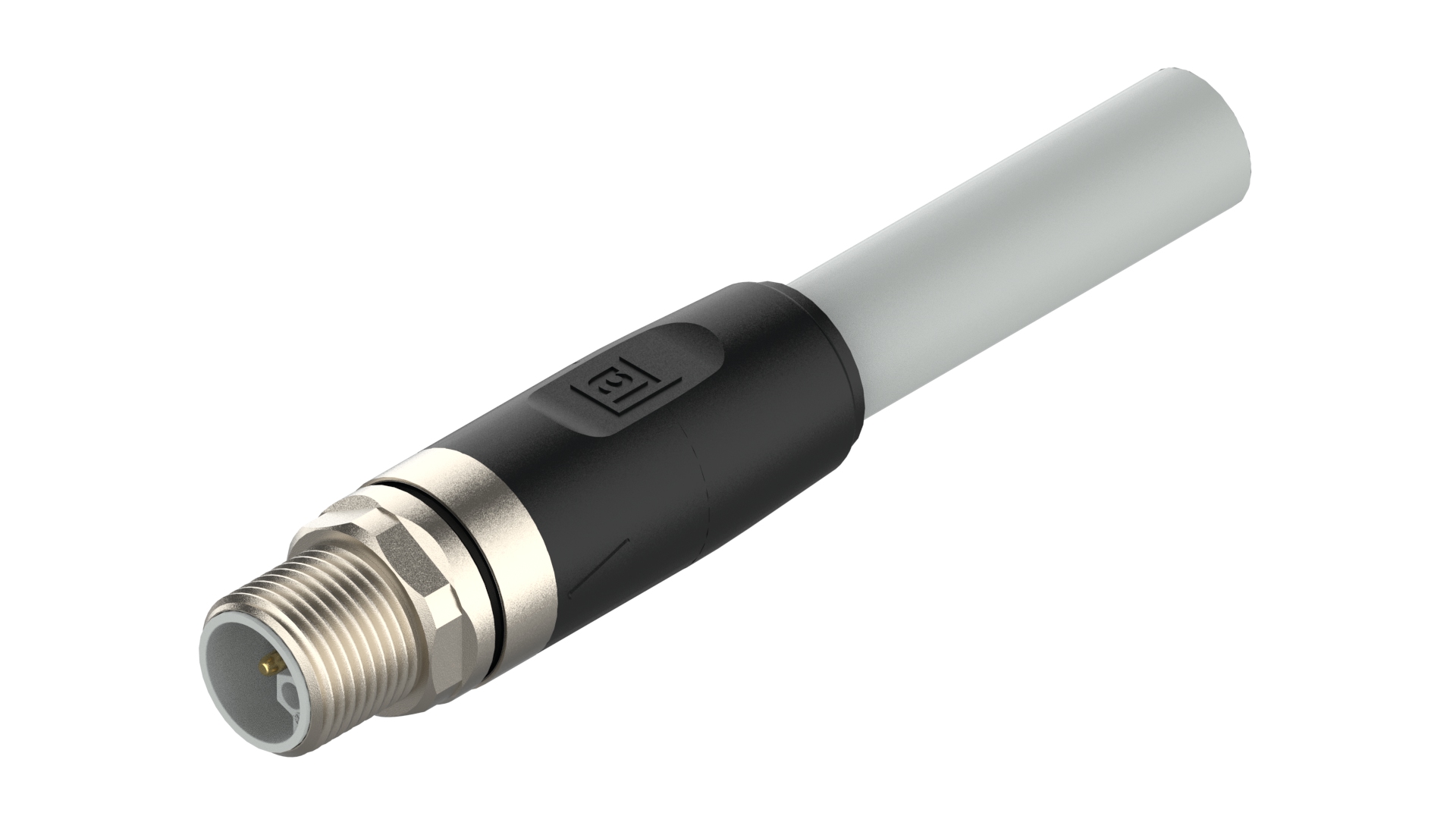

M12 Power | Cordset | Male Straight → Open End, 5-pin L-code, PUR (1.50 mm2) 16 AWG, 63 V / 16 A
M12 Power | Single-Ended Cordset | M12 Male Straight, #Contacts 5 (4+FE), L-code → Open End | Cable: Grey PUR; 1.50 mm2 (16 AWG) | 63 V / 16 A
- Availability
- Global
- Status
- Active
- Orderable items
- 11
Part numbers
RST 5L-949 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 934851094 | RST 5L-949/1,5 M | 1.5 m | Order online |
| 934851075 | RST 5L-949/2 M | 2 m | Order online |
| 26363 | RST 5L-949/0,3 M | 3 m | Order online |
| 934851098 | RST 5L-949/3 M | 3 m | Order online |
| 934851076 | RST 5L-949/5 M | 5 m | Order online |
| 934851093 | RST 5L-949/1 M | 5 m | Order online |
| 934851099 | RST 5L-949/7,5 M | 5 m | Order online |
| 934851110 | RST 5L-949/8 M | 8 m | Order online |
| 934851077 | RST 5L-949/10 M | 10 m | Order online |
| 934851078 | RST 5L-949/15 M | 15 m | Order online |
| 28662 | RST 5L-949/20 M | 20 m | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | M12 Power |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | Molded | M12 Male | Straight |
| Number of Pins | 5 (4+FE) |
| Coding, Side 1 | L |
| Shielding Type | Unshielded |
| Attachment Type | Coupling Screw |
| Voltage Rating | 63 V |
| Rated Voltage (UL) | 63 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 60 V AC/DC |
| Current Rating | 16 A |
| Rated Current (UL)* | 16 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C to + 125 °C, notice derating |
| Protection Degree / IP Rating** | IP65, IP67, IP69k |
| Side 1 Design Standard | IEC 61076-2-111 |
| Side 1 Pollution Degree | 3 acc. to IEC 60664-1 |
| Clearance / Creepage Distance | IEC 60664-1 (2020-05) |
| Overvoltage Category | III acc. to IEC 60664-1 |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | 1. Do not connect or disconnect under load. |
| Product Characteristics | To ensure ingress protection, please check the O-ring’s position before connecting. Improperly positioned O-ring leads to ingress protection potential failure. |
Face View
| Pin 1 | brown |
|---|---|
| Pin 2 | white |
| Pin 3 | blue |
| Pin 4 | black |
| FE | pink |
Materials
| Contact Base Material | Copper Alloy (CuNi) |
|---|---|
| Side 1 Contact Plating | Gold over Copper (Cu/Au) |
| Contact Bearer Material | Glass-filled Polybutylene Terephthalate (PBT GF) |
| Contact Bearer Color | Grey |
| Flammability Class (Contact Bearer) | UL 94 V-2 |
| Molded Body Material | Thermoplastic Elastomer (TPE) |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | Copper Alloy (CuZn) |
| Attachment Plating | Nickel (Ni) |
Circuitry
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 949 |
|---|---|
| Conductor Size | 1.50 mm2 |
| Number of Wires | 5 |
| Minimal Bending Radius (Fixed Inst) | ˃ 4 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 7.5 x D |
| Cycles (Bending) | ˃ 10 Mio, max. 50 m/s2 |
| Cycles (Torsion) | ˃ 5 Mio @ ± 30 °/1 m |
| Conductor Material | Cu |
| Cable Jacket Material | Polyurethane (PUR) |
| Cable Jacket Color | Grey |
| Cable Diameter D | Ø 8.0 | 0.314" |
| Wire Insulation Material | Polypropylene (PP) |
| Insulated Wire Diameter | Ø 2.35 mm | 0.092" |
| Overall Shield (Cable) | Unshielded |
| Ambient Temperature (Fixed Installation) | - 40° C to + 90° C |
| Ambient Temperature (Flex Installation) | - 30° C to + 90° C |
| Ambient Temperature (Fixed Installation short-term 100h) | - 40° C to + 125° C |
| Ambient Temperature (Drag Chain Inst) | - 20° C to + 60° C |
| UL Cable Type | AWM Style 20939 |
| Flammability Class (Cable Jacket) | VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 / UL VW-1, CSA FT1 |
| Cable Characteristics | Flexibility: Excellent | Abrasion Resistance: Excellent | Oil & Chemical Resistance: Excellent | UV Resistance: Good to excellent | Low Temp Performance: Excellent (flexible to -40°C) | Flame Retardance: VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 | Halogen-Free: Yes, DIN VDE 0472 T.815 | Mechanical Durability: High (resists impact, tear, and flex) | Environmental Suitability: Outdoor, oily, wet, or rough environments |
Approvals
| UL-File | E497237 |
|---|---|
| UL | UL 2237; cULus |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | DIN VDE 0472 T.815 |
|---|---|
| Oil Resistance | HD 22.10 Appendix A, DIN EN 60811-404 |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | 1. Do not connect or disconnect under load. |
| Product Characteristics | To ensure ingress protection, please check the O-ring’s position before connecting. Improperly positioned O-ring leads to ingress protection potential failure. |
