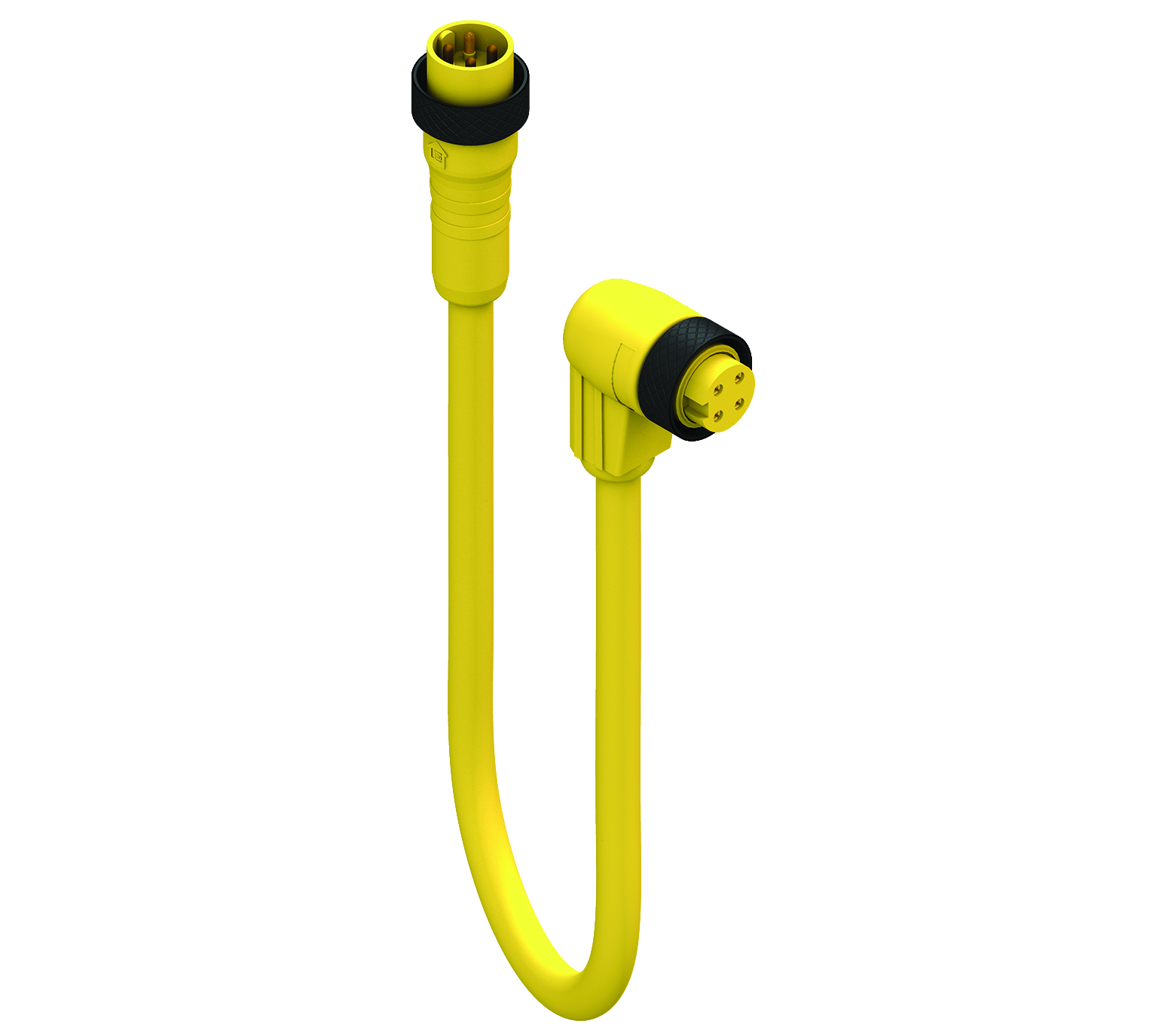

7/8" Power Double-Ended Cordset: Male straight to female angled, 4-pin, yellow body, 600 V (UL), 10 A (UL); TPE yellow cable, 16 AWG
RSRKW 401-839 - 7/8" Power Double-Ended Cordset: Male straight to female angled, 4-pin, yellow body, 600 V (UL), 10 A (UL); TPE yellow cable, 16 AWG
- Availability
- Global
- Status
- Active
- Orderable items
- 9
Part numbers
RSRKW 401-839 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 600006029 | RSRKW 401-839/0.3M | 0.3 m | Order online |
| 500003232 | RSRKW 401-839/1M | 1 m | Order online |
| 500003233 | RSRKW 401-839/2M | 2 m | Order online |
| 500003234 | RSRKW 401-839/3M | 3 m | Order online |
| 540002814 | RSRKW 401-839/4M | 4 m | Order online |
| 500003235 | RSRKW 401-839/5M | 5 m | Order online |
| 540002816 | RSRKW 401-839/6M | 6 m | Order online |
| 500003236 | RSRKW 401-839/10M | 10 m | Order online |
| 500003237 | RSRKW 401-839/20M | 20 m | Order online |
Specifications
Face View Side 1
| Product Family | Power Connector |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Unshielded |
| Voltage Rating | 600 V |
| Rated Voltage (UL) | 600 V |
| Current Rating | 10 A |
| Rated Current (UL)* | 10 A |
Technical Data Side 1
| Side 1 Product Sub Family | MINI 7/8" |
|---|---|
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | Molded | 7/8" Male | Straight |
| Attachment Type | Female Thread, Coupling Nut |
| Number of Pins | 4 (3+PE) |
| Coding, Side 1 | A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Ambient Temperature (Operation)* | -40°C to +90°C |
| Protection Degree / IP Rating** | IP65, IP67, NEMA 6P |
| Contact Base Material | Copper Alloy (CuZn) |
| Side 1 Contact Plating | Au over Ag |
| Contact Bearer Material | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color | Yellow |
| Molded Body Material | Thermoplastic polyurethane (TPU) |
| Molded Body Color | Yellow |
| Attachment Material | Aluminum (Al) |
| Attachment Plating | Anodized Black |
Cable Data
| Cable Number | 839 |
|---|---|
| Conductor Size | 16 AWG |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 5 mio |
| Conductor Material | Cu |
| Cable Jacket Material | Thermoplastic Elastomers (TPE) |
| Cable Jacket Color | Yellow |
| Cable Diameter D | Ø 8.70 mm | 0.342" |
| Wire Insulation Material | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter | Ø 2.56 mm | 0.101" |
| Ambient Temperature (Fixed Installation) | -30 °C to +90°C |
| Ambient Temperature (Flex Installation) | + 5 °C to +90 °C |
| Ambient Temperature (Fixed Installation short-term 100h) | -30 °C to +90°C |
| Ambient Temperature (Drag Chain Inst) | + 5 °C to +90 °C |
| UL Cable Type | UL: NEC Type TC-ER (UL 1277) |
| Flammability Class (Cable Jacket) | UL 1685, CSA FT4, IEEC 1202 |
| Cable Characteristics | Oil and Coolant, Vibration, UV, Abrasion, and Weld Spark resistant, Continuous Flex |
Technical Data Side 2
| Side 2 Product Sub Family | MINI 7/8" |
|---|---|
| Side 2 Type of Contact/Gender | Socket Contact / Female |
| Connector Design, Side 2 | Molded | 7/8" Female | Angled |
| Attachment Type, Side 2 | Female Thread, Coupling Nut |
| Number of Pins, Side 2 | 4 (3+PE) |
| Coding, Side 2 | A |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Ambient Temperature (Operation), Side 2* | -40°C to +90°C |
| Operating Temperature (UL), Side 2 | - 30 °C - + 90 °C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67, NEMA 6P |
| Contact Base Material, Side 2 | Copper Alloy (CuZn) |
| Contact Plating, Side 2 | Au/Ag |
| Contact Bearer Material, Side 2 | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color, Side 2 | Yellow |
| Molded Body Material, Side 2 | Thermoplastic polyurethane (TPU) |
| Molded Body Color, Side 2 | Yellow |
| Attachment Material, Side 2 | Aluminum (Al) |
| Attachment Plating, Side 2 | Anodized Black |
| Note, Side 2 | Do not connect or disconnect under load |
Approvals
| UL-File | E104696 |
|---|---|
| UL | UL recognized |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | No |
|---|---|
| Oil Resistance | Oil Res II |
Notes
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
|---|---|
| Note Derating | Notice derating |
