RSRKW 30-838

Product Number: RSRKW 30-838

7/8" - Male 0° | #Contacts: 3 | 7/8" - Female 90° | #Contacts: 3 | 600 V | Cable: Yellow (TPE); 16 AWG; US | cURus

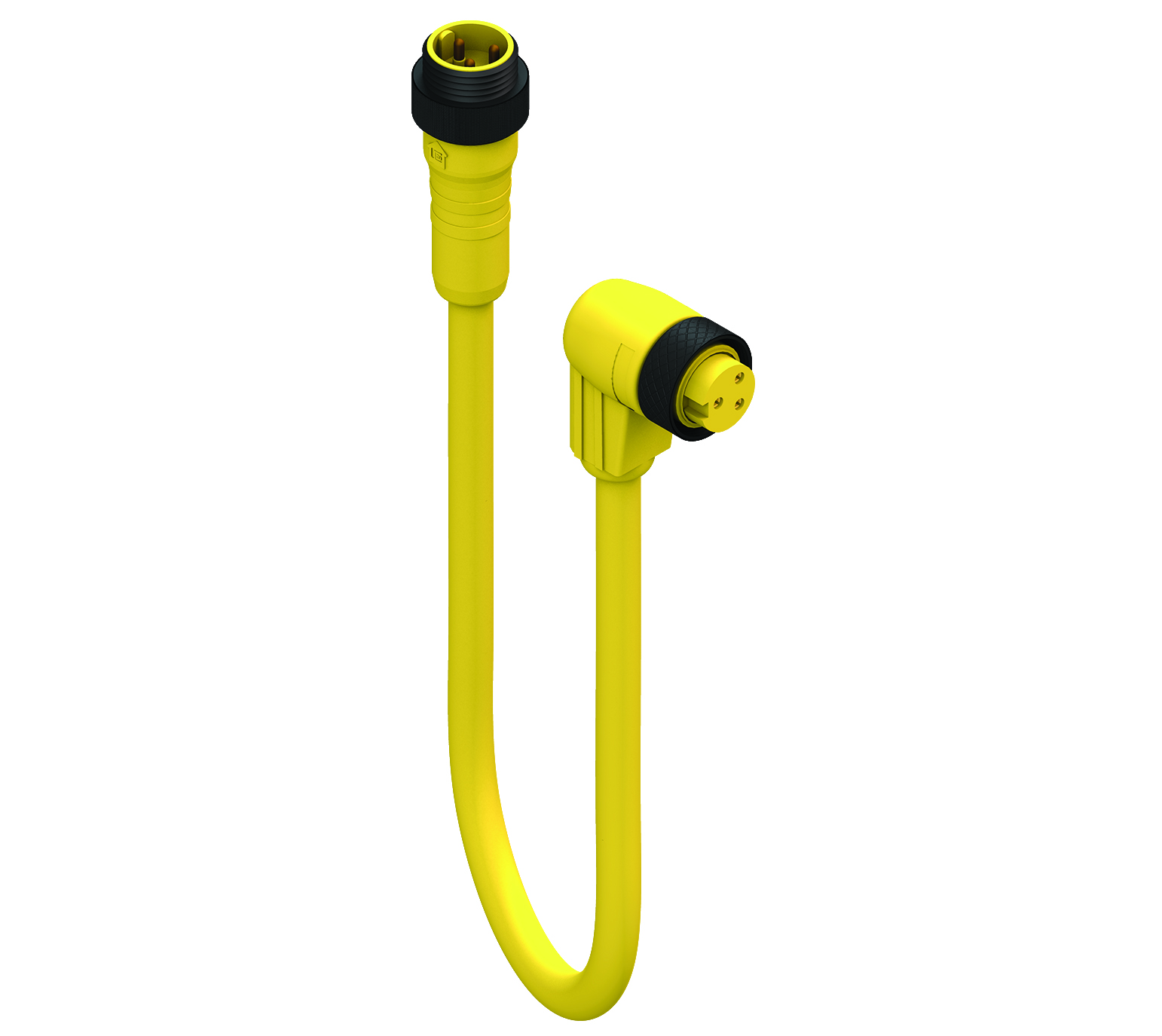

Double-Ended Cordset | 7/8"- Male Straight | #Contacts: 3 | 7/8"- Female Angled | #Contacts: 3 | 600 V / 10 A | Cable: TPE Yellow; 3x16 AWG; US | UL 2238; cURus

Availability
Global
Status
Active
Orderable items
9
Request a quoteOrder options (9)

Ships from and sold by A5 IT.

Part numbers

RSRKW 30-838 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #Item DescriptionCable LengthOrder
500004143RSRKW 30-838/1M1 mOrder online
500004144RSRKW 30-838/2M2 mOrder online
500004145RSRKW 30-838/3M3 mOrder online
500004146RSRKW 30-838/5M5 mOrder online
500004147RSRKW 30-838/10M10 mOrder online
500004148RSRKW 30-838/15M15 mOrder online
500004149RSRKW 30-838/20M20 mOrder online
500004150RSRKW 30-838/25M25 mOrder online
500004151RSRKW 30-838/30M30 mOrder online

Specifications

Information

Product FamilyPower Connector
Connector TypeCordset, double ended
Shielding TypeUnshielded
Voltage Rating600 V
Rated Voltage (UL)600 V
Operating Voltage600 V AC/DC
Current Rating10 A
Rated Current (UL)*10 A
Protection Degree / IP Rating NoteIP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating* Notice derating

Face View Side 1

Pin 1green
Pin 2black
Pin 3white

Face View Side 2

Pin 1green
Pin 2black
Pin 3white

Technical Data Side 1

Side 1 Product Sub FamilyMINI 7/8"
Side 1 Type of Contact/GenderPin Contact / Male
Connector DesignMolded | 7/8" Male | Straight
Attachment TypeMale Thread, Coupling Screw
Number of Pins3 (2+PE)
Coding, Side 1A
Side 1 Contact Resistance≤ 10 mOhm
Insulation Resistance˃ 10^9 Ohm
Mating Cycles≤ 100
Ambient Temperature (Operation)*- 40 °C to + 90°C
Protection Degree / IP Rating**IP65, IP67
Side 1 Pollution Degree3 acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base MaterialCopper Alloy (CuZn)
Side 1 Contact PlatingCopper-Silver-Gold-Alloy (Cu/Ag/Au)
Contact Bearer MaterialThermoplastic polyurethane (TPU)
Contact Bearer ColorYellow
Flammability Class (Contact Bearer)UL 94 HB
Molded Body MaterialThermoplastic polyurethane (TPU)
Molded Body ColorYellow
Flammability Class (Molded Body)UL 94 HB
Attachment MaterialAluminum (Al)
Attachment PlatingAnodized Black
Fastening Torque (Attachment)7/8'': 70 Ncm, hand-tight
NoteDo not connect / disconnect under load.

Cable Data

Cable Number838
Conductor Size16 AWG
Number of Wires3
Minimal Bending Radius (Fixed Inst)˃ 5 x D
Minimal Bending Radius (Flexible Inst)˃ 10 x D
Cycles (Bending)˃ 5 mio
Conductor MaterialCu
Cable Jacket MaterialThermoplastic Elastomers (TPE)
Cable Jacket ColorYellow
Cable Diameter DØ 8.02 mm | 0.316"
Wire Insulation MaterialPolyvinyl Chloride (PVC)
Insulated Wire DiameterØ 2.56 mm | 0.101"
Overall Shield (Cable)Unshielded
Ambient Temperature (Fixed Installation)- 30 °C to +90 °C
Ambient Temperature (Flex Installation)+ 5 °C to +90 °C
Ambient Temperature (Fixed Installation short-term 100h)- 30 °C to +90 °C
Ambient Temperature (Drag Chain Inst)+ 5 °C to +90 °C
UL Cable TypeUL: NEC Type TC-ER (UL 1277)
Flammability Class (Cable Jacket)UL 1685, CSA FT4, IEEC 1202
Cable CharacteristicsFlexibility: Excellent | Abrasion Resistance: Very Good | Chemical Resistance: resists water, oils, greases, acids, alkalis, and solvents| Flame Retardance: Good | Halogen-Free: No | Mechanical Durability: Good (resists impact, tear, and flex) | Environmental Suitability: outdoor, oily, wet, or rough environments

Technical Data Side 2

Side 2 Product Sub FamilyMINI 7/8"
Side 2 Type of Contact/GenderSocket Contact / Female
Connector Design, Side 2Molded | 7/8" Female | Angled
Attachment Type, Side 2Female Thread, Coupling Nut
Number of Pins, Side 23 (2+PE)
Coding, Side 2A
Contact Resistance, Side 2≤ 10 mOhm
Insulation Resistance, Side 2˃ 10^9 Ohm
Mating Cycles, Side 2≤ 100
Ambient Temperature (Operation), Side 2*- 40 °C to + 90°C
Operating Temperature (UL), Side 2- 30 °C - + 90 °C
Protection Degree / IP Rating, Side 2**IP65, IP67
Pollution Degree, Side 23 acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2Copper Alloy (CuZn)
Contact Plating, Side 2Copper-Silver-Gold-Alloy (Cu/Ag/Au)
Contact Bearer Material, Side 2Thermoplastic polyurethane (TPU)
Contact Bearer Color, Side 2Yellow
Flammability Class (Contact Bearer), Side 2UL 94 HB
Molded Body Material, Side 2Thermoplastic polyurethane (TPU)
Molded Body Color, Side 2Yellow
Flammability Class (Molded Body), Side 2UL 94 HB
Attachment Material, Side 2Aluminum (Al)
Attachment Plating, Side 2Anodized Black
Fastening Torque (Attachment), Side 27/8'': 70 Ncm, hand-tight
Note, Side 2Do not connect / disconnect under load.

Approvals

UL-FileE315587
ULUL 2238; cURus

Safety & Environmental Compliance

RoHS CompliantYes

Resistances

HalogenfreeNo
Oil ResistanceOil Res II

Notes

Protection Degree / IP Rating NoteIP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating* Notice derating

Resources

Belden RSRKW 30-838 technical datasheetIndustrial Power Connectors
