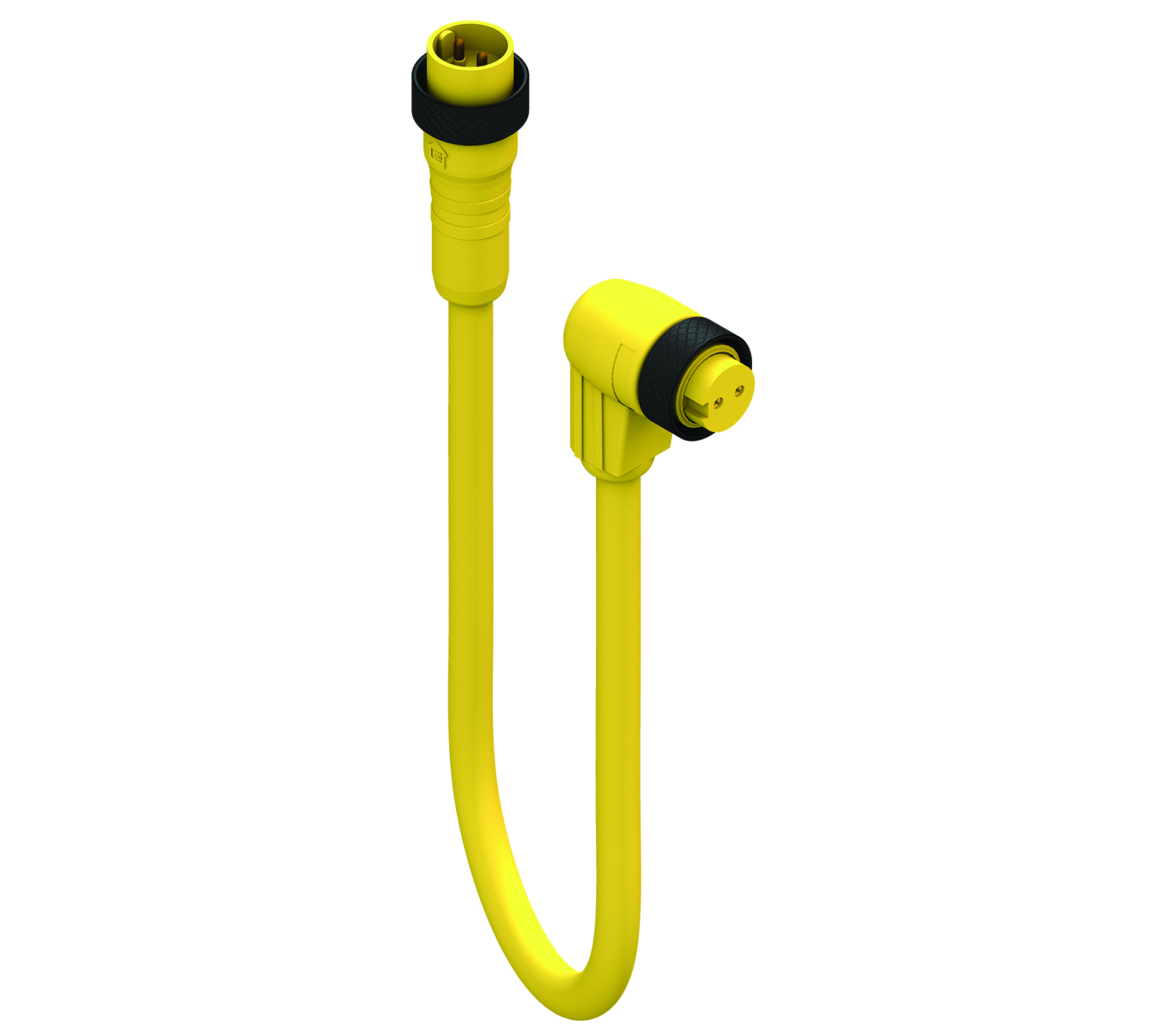

7/8" Power Double-Ended Cordset: Male straight to female angled, 2-pin, yellow body, 600 V (UL), 12 A (UL); PVC yellow cable, 16 AWG
7/8" Power Double-Ended Cordset: Male straight to female angled, 2-pin, yellow body, 600 V (UL), 12 A (UL); PVC yellow cable, 16 AWG
- Availability
- Global
- Status
- Active
- Orderable items
- 5
Part numbers
RSRKW 201-678 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 500001173 | RSRKW 201-678/6F | 6 ft | Order online |
| 500001174 | RSRKW 201-678/12F | 12 ft | Order online |
| 500001175 | RSRKW 201-678/15F | 15 ft | Order online |
| 500001176 | RSRKW 201-678/20F | 20 ft | Order online |
| 500001178 | RSRKW 201-678/30F | 30 ft | Order online |
Specifications
Face View Side 1
| Product Family | Power Connector |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Unshielded |
| Rated Voltage (UL) | 600 V |
| Rated Current (UL)* | 12 A |
Technical Data Side 1
| Side 1 Product Sub Family | MINI 7/8" |
|---|---|
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | Molded | 7/8" Male | Straight |
| Attachment Type | Female Thread, Coupling Nut |
| Number of Pins | 2 |
| Coding, Side 1 | A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Ambient Temperature (Operation)* | -40°C to +90°C |
| Protection Degree / IP Rating** | IP 67 / NEMA 6P |
| Contact Base Material | Copper Alloy (CuZn) |
| Side 1 Contact Plating | gold over silver plated |
| Contact Bearer Material | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color | Yellow |
| Molded Body Material | Thermoplastic polyurethane (TPU) |
| Molded Body Color | Yellow |
| Attachment Material | Aluminum (Al) |
| Attachment Plating | Anodized Black |
Cable Data
| Cable Number | 678 |
|---|---|
| Conductor Size | 16 AWG |
| Number of Wires | 2 |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Yellow |
| Cable Diameter D | .375” (9.5 mm) |
| UL Cable Type | STOW |
Technical Data Side 2
| Side 2 Product Sub Family | MINI 7/8" |
|---|---|
| Side 2 Type of Contact/Gender | Socket Contact / Female |
| Connector Design, Side 2 | Molded | 7/8" Female | Angled |
| Attachment Type, Side 2 | Female Thread, Coupling Nut |
| Number of Pins, Side 2 | 2 |
| Coding, Side 2 | A |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Ambient Temperature (Operation), Side 2* | -40°C to +90°C |
| Protection Degree / IP Rating, Side 2** | * only if mounted and locked in combination with Hirschmann / Lumberg connector. |
| Contact Base Material, Side 2 | Copper Alloy (CuZn) |
| Contact Plating, Side 2 | gold over silver plated |
| Contact Bearer Material, Side 2 | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color, Side 2 | Yellow |
| Molded Body Material, Side 2 | Thermoplastic polyurethane (TPU) |
| Molded Body Color, Side 2 | Yellow |
| Attachment Material, Side 2 | Aluminum (Al) |
| Attachment Plating, Side 2 | Anodized Black |
Approvals
| UL | UL 2238 Recognized |
|---|
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
|---|
