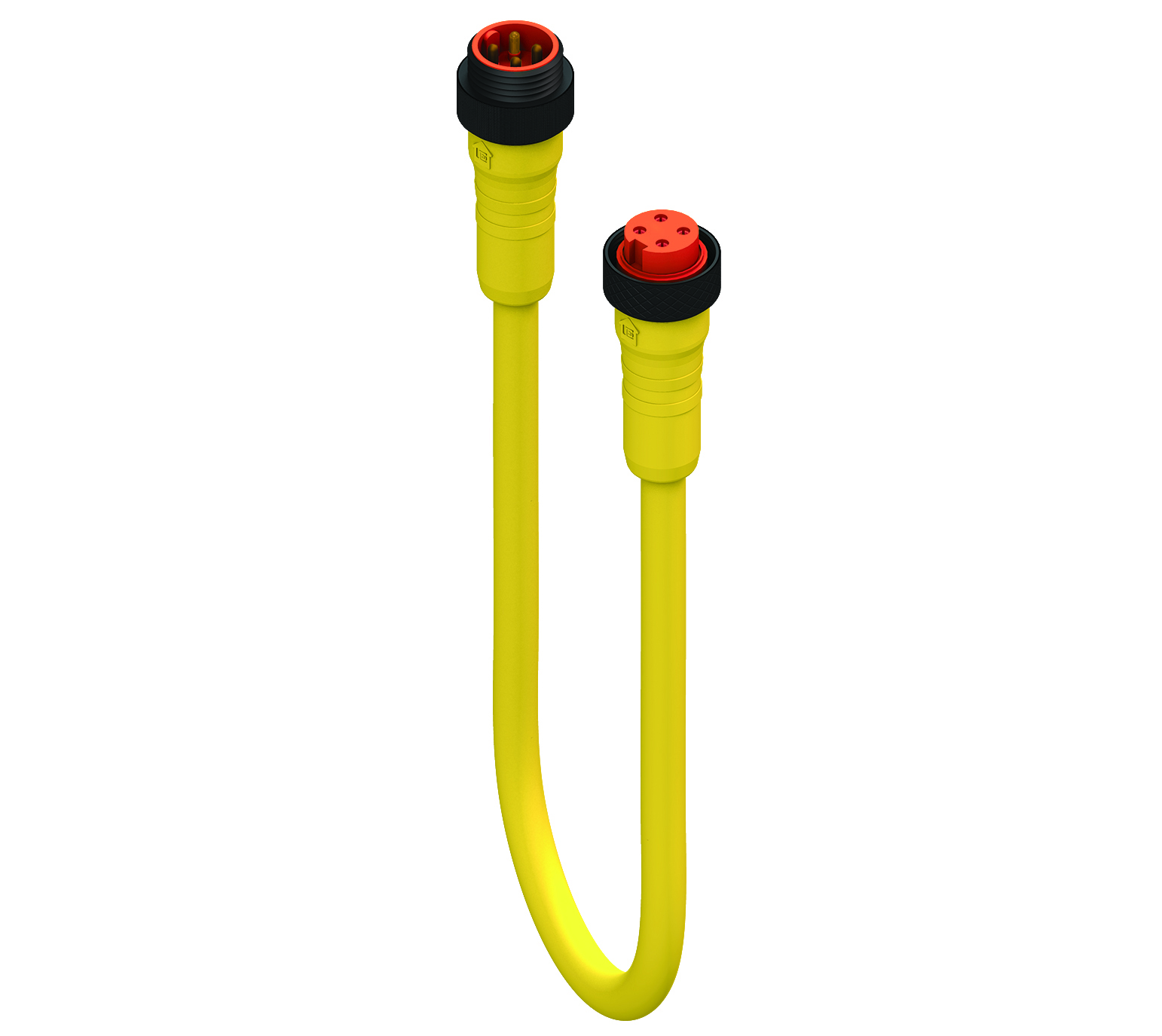

7/8" Power Double-Ended Cordset: Male straight to female straight, 4-pin, yellow body, 600 V(UL Referenced) AC/DC, 9 A; PVC yellow cable, 1.0 mm2
7/8" Power Double-Ended Cordset: Male straight to female straight, 4-pin, yellow body, 600 V(UL Referenced) AC/DC, 9 A; PVC yellow cable, 1.0 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
RSRK 40-6048 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 960481101 | RSRK 40-6048/1 M | 1.0 m | Order online |
| 960481102 | RSRK 40-6048/2 M | 2.0 m | Order online |
| 960481105 | RSRK 40-6048/5 M | 5 m | Order online |
| 9604811010 | RSRK 40-6048/10 M | 10 m | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Unshielded |
| Voltage Rating | 600 V AC/DC |
| Operating Voltage | 300 V DC/AC |
| Current Rating | 9 A |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note Derating | * Notice derating |
Face View Side 1
| Pin 1 | black |
|---|---|
| Pin 2 | white |
| Pin 3 | red |
| Pin 4 | green |
Face View Side 2
| Pin 1 | black |
|---|---|
| Pin 2 | white |
| Pin 3 | red |
| Pin 4 | green |
Technical Data Side 1
| Side 1 Product Sub Family | MINI 7/8" |
|---|---|
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | Molded | 7/8" Male | Straight |
| Attachment Type | Male Thread, Coupling Screw |
| Number of Pins | 4 |
| Coding, Side 1 | A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Ambient Temperature (Operation)* | -40 °C to +90 °C |
| Protection Degree / IP Rating** | IP68 |
| Contact Base Material | Copper Alloy (CuZn) |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color | Yellow |
| Molded Body Material | Thermoplastic polyurethane (TPU) |
| Molded Body Color | Orange |
| Attachment Material | Polyamide (PA) |
| Note | Do not connect / disconnect under load. |
Cable Data
| Cable Number | 6048 |
|---|---|
| Conductor Size | 1 mm2 |
| Number of Wires | 4 |
| Cycles (Bending) | ≥ 5 million cycles (1m Travel Distance, 20cycles/min, 1.5m/s) |
| Conductor Material | Cu |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Yellow |
| Cable Diameter D | ø 7.20 mm |
| Wire Insulation Material | PE |
| Insulated Wire Diameter | ø 2.15 mm |
| Ambient Temperature (Fixed Installation) | - 40 °C to +80 °C |
| UL Cable Type | AWM: 22438 |
| Flammability Class (Cable Jacket) | FT2, IEC 60332-1-2 |
Technical Data Side 2
| Side 2 Product Sub Family | MINI 7/8" |
|---|---|
| Side 2 Type of Contact/Gender | Socket Contact / Female |
| Connector Design, Side 2 | Molded | 7/8" Female | Straight |
| Attachment Type, Side 2 | Female Thread, Coupling Nut |
| Number of Pins, Side 2 | 4 |
| Coding, Side 2 | A |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Ambient Temperature (Operation), Side 2* | -40 °C to +90 °C |
| Protection Degree / IP Rating, Side 2** | IP68 |
| Contact Base Material, Side 2 | Copper Alloy (CuZn) |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color, Side 2 | Yellow |
| Molded Body Material, Side 2 | Thermoplastic polyurethane (TPU) |
| Molded Body Color, Side 2 | Orange |
| Attachment Material, Side 2 | Polyamide (PA) |
| Note, Side 2 | Do not connect / disconnect under load. |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
|---|---|
| Note Derating | * Notice derating |
