7/8" - Male 0° | #Contacts: 3 | 7/8" - Female 0° | #Contacts: 3 | 250 V | Cable: Orange (PVC); 0.75mm2; IEC

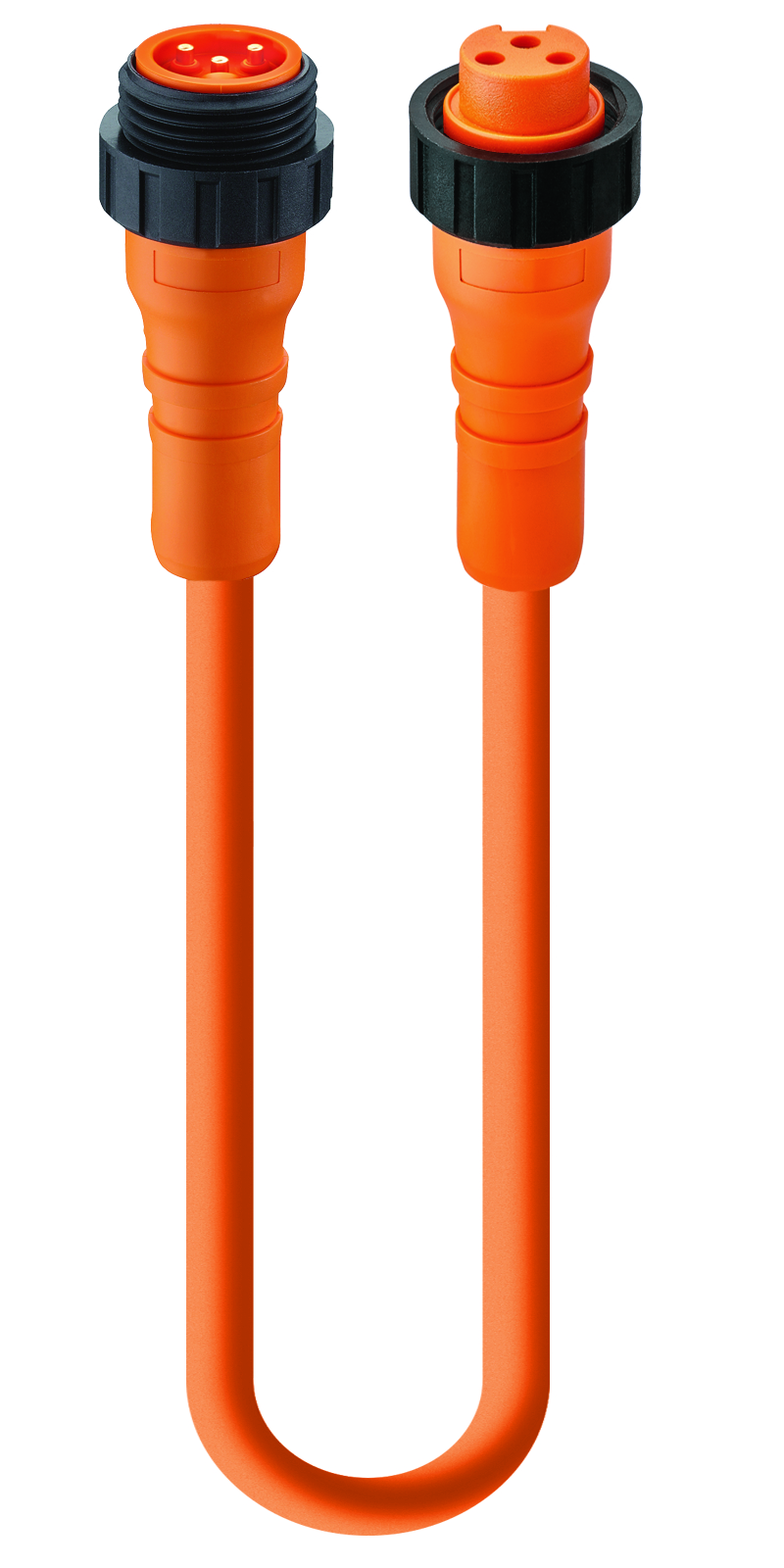

Double-Ended Cordset | 7/8"- Male Straight | #Contacts: 3 | 7/8"- Female Straight | #Contacts: 3 | 250 V / 12 A | Cable: PVC Orange; 3x0.75mm2; IEC
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
RSRK 30-01 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 20251 | RSRK 30-01/0,6 M | 0.6 m | Order online |
| 108247 | RSRK 30-01/2 M | 2 m | Order online |
| 108249 | RSRK 30-01/4 M | 4 m | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Unshielded |
| Voltage Rating | 250 V |
| Operating Voltage | 230 V AC/DC |
| Current Rating | 12 A |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note Derating | * Notice derating |
Face View Side 1
| Pin 1 | brown |
|---|---|
| Pin 2 | green-yellow |
| Pin 3 | blue |
Face View Side 2
| Pin 1 | brown |
|---|---|
| Pin 2 | green-yellow |
| Pin 3 | blue |
Technical Data Side 1
| Side 1 Product Sub Family | MINI 7/8" |
|---|---|
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | Molded | 7/8" Male | Straight |
| Attachment Type | Male Thread, Coupling Screw |
| Number of Pins | 3 |
| Coding, Side 1 | A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C to + 90°C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | Copper Alloy (CuZn) |
| Side 1 Contact Plating | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color | Orange |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | Thermoplastic polyurethane (TPU) |
| Molded Body Color | Orange |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | Polyamide (PA) |
| Fastening Torque (Attachment) | 7/8'': 70 Ncm, hand-tight |
| Note | Do not connect / disconnect under load. |
Cable Data
| Cable Number | 01 |
|---|---|
| Conductor Size | 0.75 mm2 |
| Number of Wires | 3 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1 mio |
| Conductor Material | Cu |
| Cable Jacket Material | Polyvinyl Chloride (PVC) |
| Cable Jacket Color | Orange |
| Cable Diameter D | Ø 7.20 mm (.283") |
| Wire Insulation Material | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter | Ø 2.40 mm (0.094") |
| Ambient Temperature (Fixed Installation) | - 40 °C to +90 °C |
| Ambient Temperature (Flex Installation) | + 5 °C to +90 °C |
| UL Cable Type | AWM: 2654 |
| Flammability Class (Cable Jacket) | DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1; flame-retardant and self-extinguishing |
| Cable Characteristics | Flexibility: Good | Abrasion Resistance: Good | Chemical Resistance: resists water, oil, acids, and alkalis| Flame Retardance: Good | Halogen-Free: No | Mechanical Durability: Good (resists impact, tear, and flex) | Environmental Suitability: Indoor, excellent balance of performance, cost, and versatility |
Technical Data Side 2
| Side 2 Product Sub Family | MINI 7/8" |
|---|---|
| Side 2 Type of Contact/Gender | Socket Contact / Female |
| Connector Design, Side 2 | Molded | 7/8" Female | Straight |
| Attachment Type, Side 2 | Female Thread, Coupling Nut |
| Number of Pins, Side 2 | 3 |
| Coding, Side 2 | A |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Ambient Temperature (Operation), Side 2* | - 40 °C to + 90°C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | Copper Alloy (CuZn) |
| Contact Plating, Side 2 | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material, Side 2 | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color, Side 2 | Orange |
| Flammability Class (Contact Bearer), Side 2 | UL 94 HB |
| Molded Body Material, Side 2 | Thermoplastic polyurethane (TPU) |
| Molded Body Color, Side 2 | Orange |
| Flammability Class (Molded Body), Side 2 | UL 94 HB |
| Attachment Material, Side 2 | Polyamide (PA) |
| Fastening Torque (Attachment), Side 2 | 7/8'': 70 Ncm, hand-tight |
| Note, Side 2 | Do not connect / disconnect under load. |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | No |
|---|
Notes
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
|---|---|
| Note Derating | * Notice derating |
