M12 Power | Receptacle | Male Front Mount → Open End, 4-pin S-code, (1.50 mm2) 16 AWG, 630 V / 16 A, Shielded

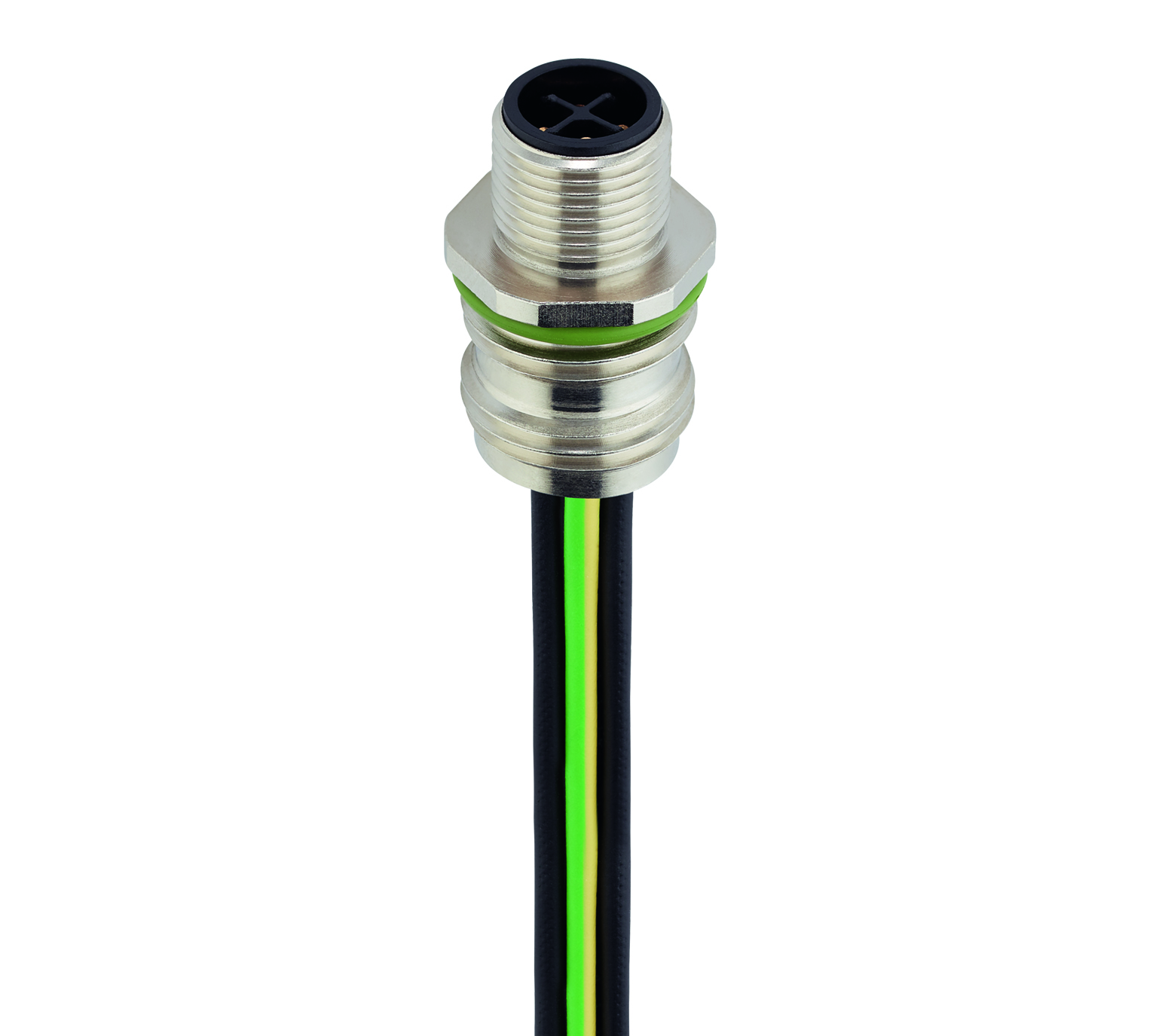

M12 Power | Receptacle | M12 Male Front Mount, #Contacts: 4, S-code → Open End | Hookup Wire(s): mPPE; 1.50 mm2 (16 AWG) | 630 V / 16 A | 360° Shield Protection
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
RSP6S 4S-033 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 934980103 | RSP6S 4S-033/0,2 M | 0.2 m | Order online |
| 934980107 | RSP6S 4S-033/0,2 M | 0.5 m | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | M12 Power |
| Connector Type | Receptacle |
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | Receptacle | M12 Male | Front Mount |
| Number of Pins | 4 (3+PE) |
| Coding, Side 1 | S |
| Shielding Type | Shielded |
| Attachment Type | Coupling Screw |
| Voltage Rating | 630 V |
| Rated Voltage (UL) | 600 V |
| Rated Impulse Voltage | 6.0 kV |
| Operating Voltage | 600 V AC/DC |
| Current Rating | 16 A |
| Rated Current (UL)* | 16 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | -40 °C to +125 °C, notice derating |
| Protection Degree / IP Rating** | IP65, IP67, IP69K |
| Side 1 Design Standard | IEC 61076-2-111 |
| Side 1 Pollution Degree | 3 acc. to IEC 60664-1 |
| Clearance / Creepage Distance | IEC 60664-1 (2020-05) |
| Overvoltage Category | III acc. to IEC 60664-1 |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | 1. Do not connect or disconnect under load. |
| Product Characteristics | To ensure ingress protection, please check the O-ring’s position before connecting. Improperly positioned O-ring leads to ingress protection potential failure. |
Face View
| Pin 1 | black 1 |
|---|---|
| Pin 2 | black 2 |
| Pin 3 | black 3 |
| PE | green-yellow |
Materials
| Contact Base Material | Copper Alloy (CuNi) |
|---|---|
| Side 1 Contact Plating | Gold over Copper (Cu/Au) |
| Contact Bearer Material | Glass-filled Polybutylene Terephthalate (PBT GF) |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-2 |
| Housing Material | Copper Alloy (CuZn) |
| Housing Plating | Nickel (Ni) |
| Housing Color | Siliver |
| Attachment Material | Copper Alloy (CuZn) |
| Attachment Plating | Nickel (Ni) |
| Shielding Material | CuZn, plating: Ni |
| Gasket Material | Fluoroelastomer (FKM) | Panel Gasket,Included with packaging |
Circuitry
| Mount Type | M16x1,5 |
|---|
Cable Data
| Cable Number | 033 |
|---|---|
| Conductor Size | 1.50 mm2 |
| Number of Wires | 4 |
| Conductor Material | Cu |
| Wire Insulation Material | Modified Polyphenylene Ether (mPPE) |
| Insulated Wire Diameter | Ø 2.25 mm | 0.089" |
| UL Cable Type | AWM Style 11028 |
| Flammability Class (Cable Jacket) | UL 1581 VW-1 |
Approvals
| UL-File | E497237 |
|---|---|
| UL | UL 2237; cULus |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | DIN VDE 0472 T.815 |
|---|---|
| Oil Resistance | Yes |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | 1. Do not connect or disconnect under load. |
| Product Characteristics | To ensure ingress protection, please check the O-ring’s position before connecting. Improperly positioned O-ring leads to ingress protection potential failure. |
