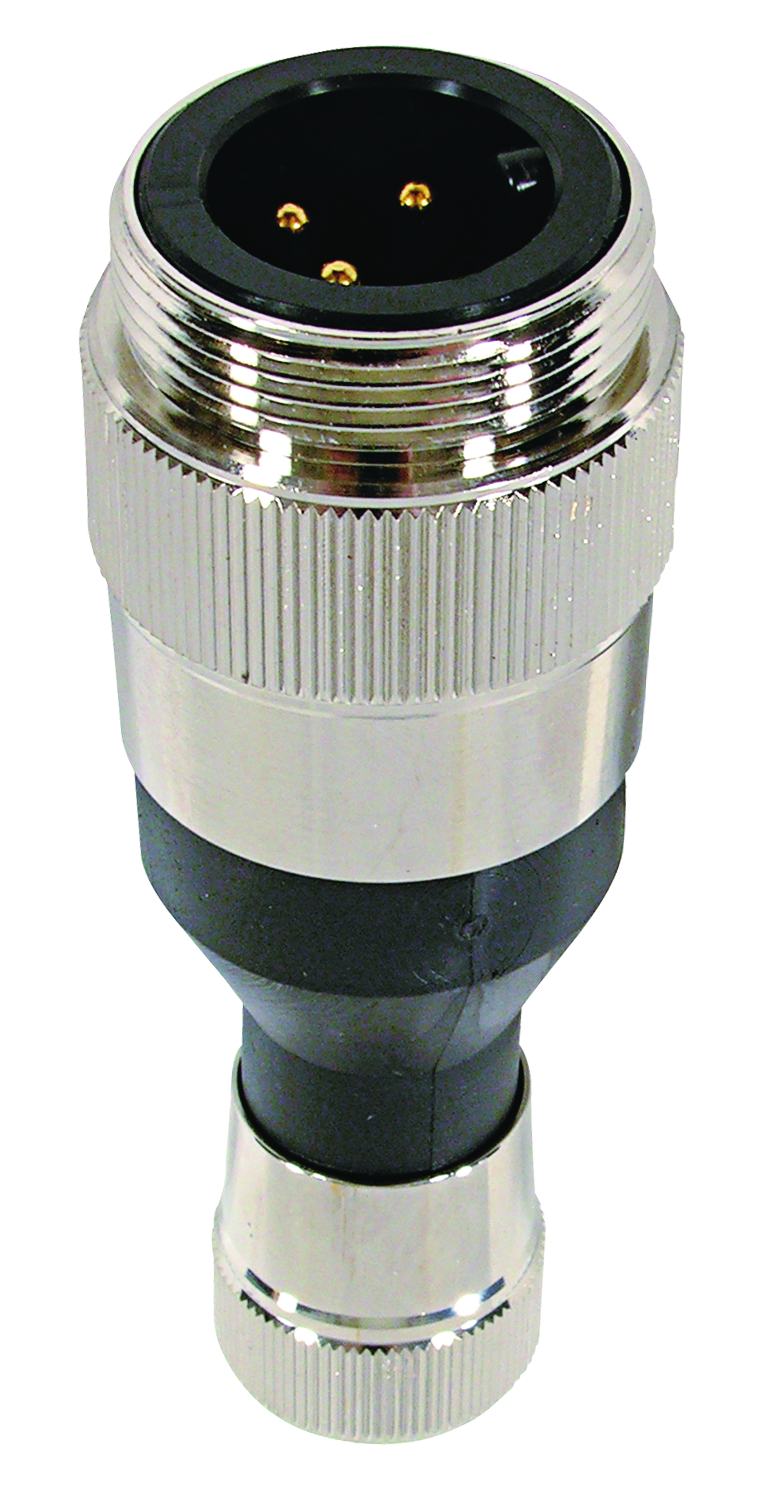

Mini Power Reducer Connector: 1 3/8" male straight to 7/8" female straight, 3-pin(2+PE), black body, 600 V, 18 A
Mini Power Reducer Connector: 1 3/8" male straight to 7/8" female straight, 3-pin(2+PE), black body, 600 V, 18 A
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RSP 3-RKPA 3 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 511000765 | RSP 3-RKPA 3 | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Connector Type | Reducer |
| Shielding Type | Unshielded |
| Rated Voltage (UL) | 600 V |
| Rated Current (UL)* | 18 A |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
Technical Data Side 1
| Side 1 Product Sub Family | Mini Power 1-3/8" |
|---|---|
| Side 1 Type of Contact/Gender | male |
| Connector Design | straight |
| Attachment Type | Coupling Nut |
| Number of Pins | 3(2+PE) |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | -40°C to +90°C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Contact Base Material | Cu Alloy |
| Side 1 Contact Plating | Au |
| Contact Bearer Material | PVC |
| Contact Bearer Color | black |
| Molded Body Material | PVC |
| Molded Body Color | Black |
Technical Data Side 2
| Side 2 Product Sub Family | Mini Power 7/8" |
|---|---|
| Side 2 Type of Contact/Gender | female |
| Connector Design, Side 2 | straight |
| Attachment Type, Side 2 | Coupling Nut |
| Number of Pins, Side 2 | 3(2+PE) |
| Mating Cycles, Side 2 | ≤ 100 |
| Ambient Temperature (Operation), Side 2* | -40°C to +90°C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Contact Base Material, Side 2 | Cu Alloy |
| Contact Plating, Side 2 | Au |
| Contact Bearer Material, Side 2 | PVC |
| Contact Bearer Color, Side 2 | black |
| Molded Body Material, Side 2 | PVC |
| Molded Body Color, Side 2 | Black |
Approvals
| UL-File | UL: E482233 |
|---|---|
| UL | UL 2237 |
| CSA | C-UL LISTED: E482233 |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|
