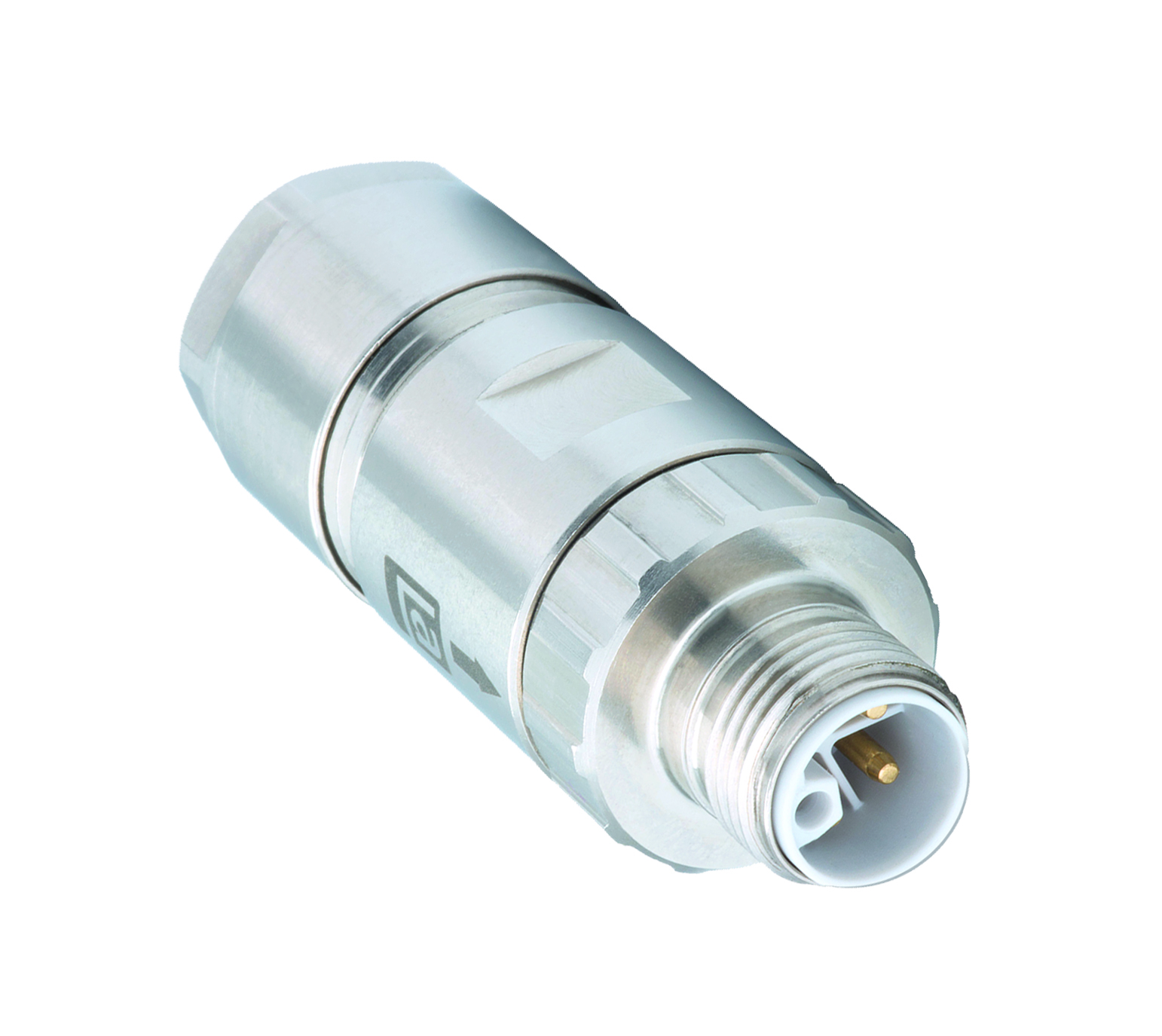

M12 Power | Field Attachable | Male Straight, 5-pin L-coded, 63 V / 16 A
M12 Power | Field Attachable | Male Straight, 5-pin L-coded, Shieldable, Crimp Type, 63 V / 16 A
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
RSCCS 5L is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Conductor Cross Section | Rated Current | Order |
|---|---|---|---|---|
| 934937005 | RSCCS 5L/11 1,5 | 1.5 mm2 | 16 A | Order online |
| 934937006 | RSCCS 5L/11 2,5 | 2.5 mm2 | 16 A | Order online |
Specifications
Face View
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | M12 Power |
| Connector Type | Field attachable |
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | Field Attachable | M12 Male | Straight |
| Number of Pins | 5 (4+FE) |
| Coding, Side 1 | L |
| Shielding Type | Shielded |
| Attachment Type | Coupling Screw |
| Voltage Rating | 63 V |
| Rated Voltage (UL) | 63 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 60 V AC/DC |
| Current Rating | 16 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Type of Connection | Crimp |
| Cable Gland | PG 11 |
| Maximum Wire Isolation Diameter | max. Ø2,9 mm |
| Strain-Relief | clamping cage |
| Suitable Cables | 3 gaskets enclosed (Ø3 - Ø6 mm, Ø5 - Ø9 mm, Ø8 - Ø11 mm) |
| Ambient Temperature (Operation)* | -40 °C to +125 °C, notice derating |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-111 |
| Side 1 Pollution Degree | 3 acc. to IEC 60664-1 |
| Clearance / Creepage Distance | IEC 60664-1 (2020-05) |
| Overvoltage Category | III acc. to DIN EN 60664-1 |
Materials
| Contact Base Material | Copper Alloy (CuNi) |
|---|---|
| Side 1 Contact Plating | Gold over Copper (Cu/Au) |
| Contact Bearer Material | Glass-filled Polybutylene Terephthalate (PBT GF) |
| Contact Bearer Color | Grey |
| Flammability Class (Contact Bearer) | UL 94 V-2 |
| Housing Material | Copper Alloy (CuZn) |
| Housing Plating | Nickel (Ni) |
| Housing Color | Siliver |
| Cable Gland Material | CuZn |
| Cable Gland Plating | Ni |
| Cable Gland Gasket | NBR |
| Strain-Relief Material | PBT GF |
| Flammability Class (Strain Relief) | UL 94 V-2 |
| Attachment Material | Copper Alloy (CuZn) |
| Attachment Plating | Nickel (Ni) |
| Shielding Material | CuZn, plating: Ni |
Circuitry
| Fastening Torque (Cable Gland) | 250-375 Ncm |
|---|---|
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
Approvals
| UL-File | E497237 |
|---|---|
| UL | UL 2237; cULus |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | 1. Do not connect or disconnect under load. |
