7/8" - Male 0° | #Contacts: 4 | 600 V | Black Housing, Black PG11 Cable Gland | cURus

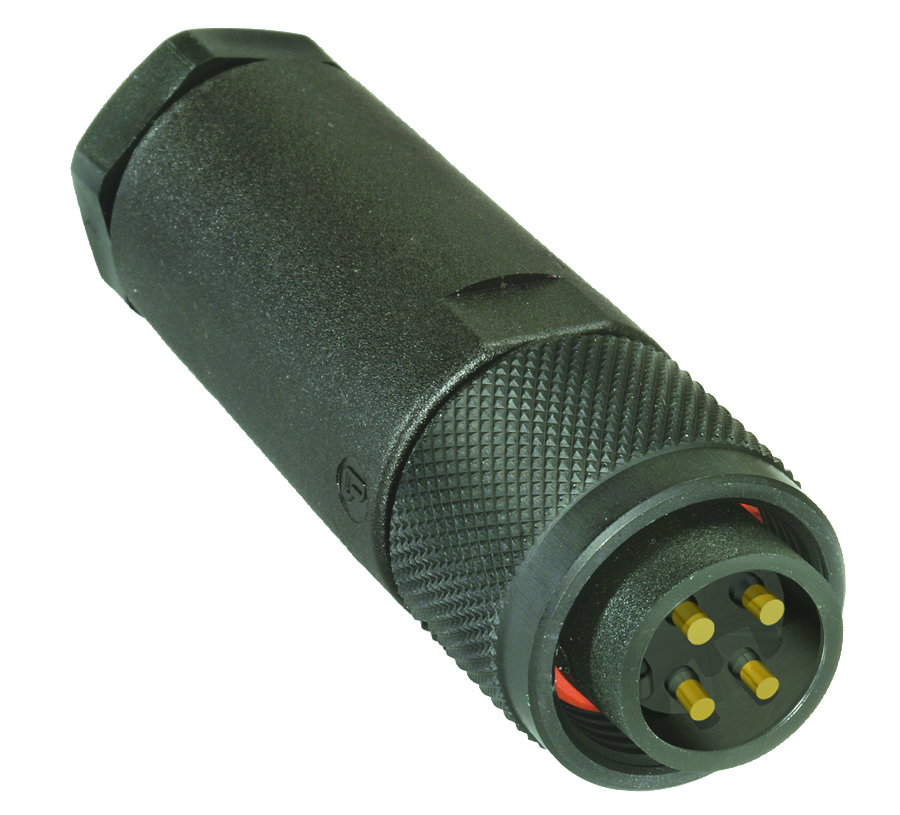

7/8" - Field Attachable Male Straight Connector | #Contacts: 4 (3+PE) | 600 V / 12 A | Black Housing, Black PG11 Cable Gland | cURus
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RSC 401/11 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Gland Material | Order |
|---|---|---|---|
| 59160 | RSC 401/11 | Nylon 66 (PA 66) | Order online |
Specifications
Information
| Item Description | RSC 401/11 |
|---|---|
| Product Family | Power Connector |
| Side 1 Product Sub Family | 7/8" (2, 3, 4, 5, 6 contacts) |
| Connector Type | Field Attachable |
| Connector Sub Type | 7/8" |
| Side 1 Type of Contact/Gender | Pin Contacts / Male |
| Connector Design | 7/8" | Male | 4 Pole | 0° |
| Number of Pins | 4 (3+PE) |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Female Thread (coupling nut) |
| Voltage Rating | 250 V (IEC Standard) |
| Rated Voltage (UL) | 600 V |
| Current Rating | 9 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Type of Connection | Screw terminal |
| Cable Gland | PG 11 |
| Cross Section | max. 1.0 mm2 |
| Suitable Cables | Ø 8.0-10.0 mm |
| Ambient Temperature (Operation)* | - 40 °C to + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | Do not connect / disconnect under load. |
Materials
| Contact Base Material | Brass (CuZn) |
|---|---|
| Side 1 Contact Plating | Copper-Gold Alloy (Cu/Au) |
| Contact Bearer Material | Thermoplastic Polyurethane (TPU) |
| Contact Bearer Color | Black |
| Housing Material | Nylon 66 (PA 66) |
| Housing Color | Black |
| Cable Gland Material | Nylon 66 (PA 66) |
| Cable Gland Gasket | Nitrile Butadiene Rubber (NBR) |
| Cable Gland Color | Black |
| Attachment Material | Aluminum (Al) |
| Attachment Plating | Anodized black |
| O-Ring Material | Nitrile Butadiene Rubber (NBR) |
Approvals
| UL-File | E104696 |
|---|---|
| UL | cURus |
Safety & Environmental Compliance
| RoHS Compliant | Compliant |
|---|
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | Do not connect / disconnect under load. |
