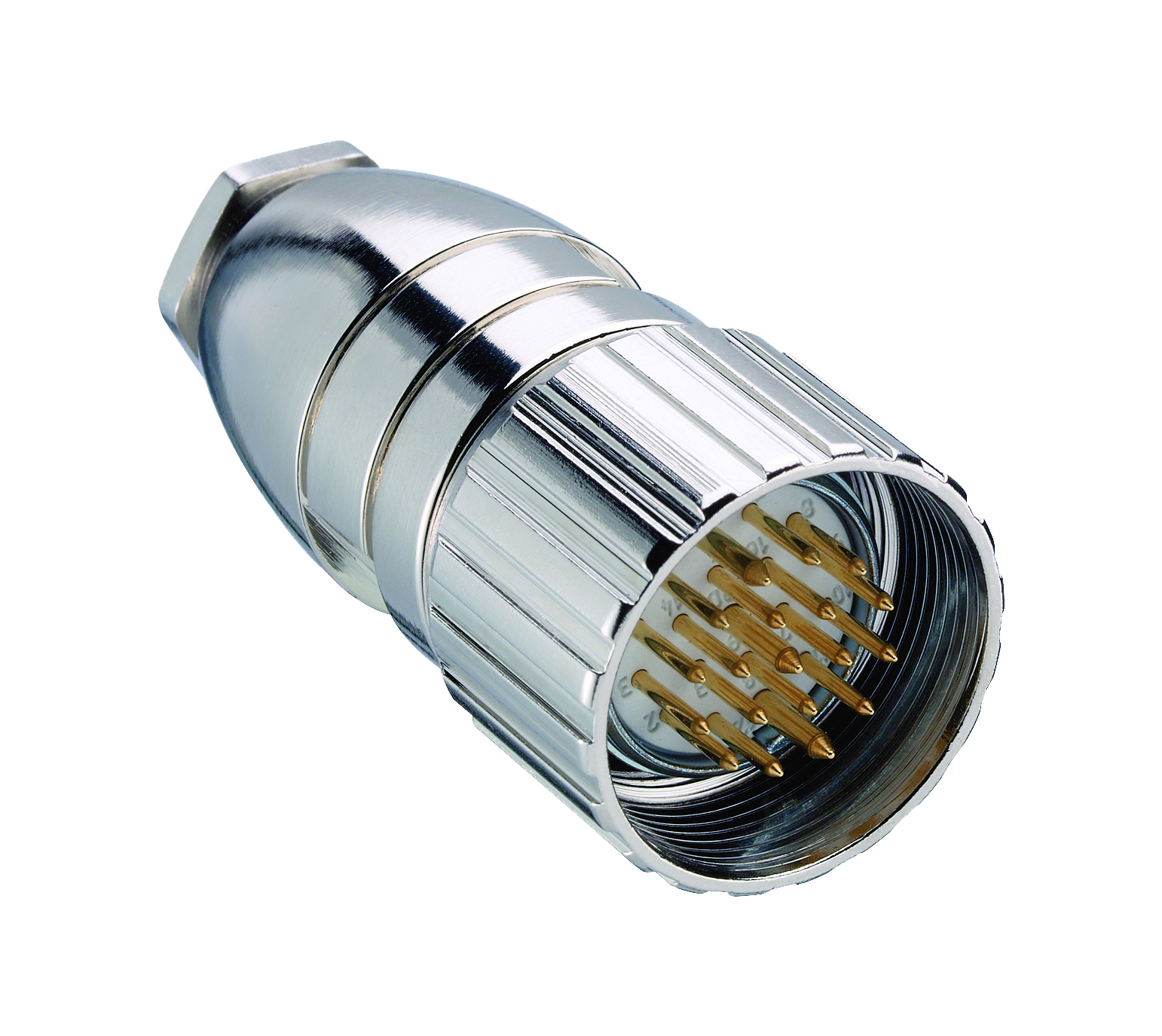

M23 Power Field Attachable Connector: Male, straight, 12-pin, silver housing, 120 V AC/DC
M23 Power Field Attachable Connector: Male, straight, 12-pin, silver housing, 120 V AC/DC
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RSC 120/9 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 104068 | RSC 120/9 | Order online |
Specifications
Face View
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | M23 Power |
| Connector Type | Field attachable |
| Side 1 Type of Contact/Gender | male |
| Connector Design | straight |
| Number of Pins | 12 |
| Shielding Type | Unshielded |
| Attachment Type | Coupling Nut |
| Voltage Rating | 125 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 120 V AC/DC |
| Current Rating | 8 A |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Type of Connection | solder |
| Cable Gland | PG 9 |
| Cross Section | max. 1.0 mm2 |
| Suitable Cables | Ø6 mm to Ø8 mm |
| Ambient Temperature (Operation)* | -40°C to +70°C |
| Protection Degree / IP Rating** | IP65 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PBT |
| Contact Bearer Color | white |
| Flammability Class (Contact Bearer) | UL 94 V0 |
| Housing Material | GD-Zn / CuZn Ni |
| Housing Color | silver |
| Attachment Material | CuZn, nickel-plated |
| O-Ring Material | FPM / NBR |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect / disconnect under load. |
| Particularities | When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54. |
