7/8 - Male 0° | #Contacts: 3 | 300 V | Cable: Yellow (PVC); 18 AWG; IEC | cURus"

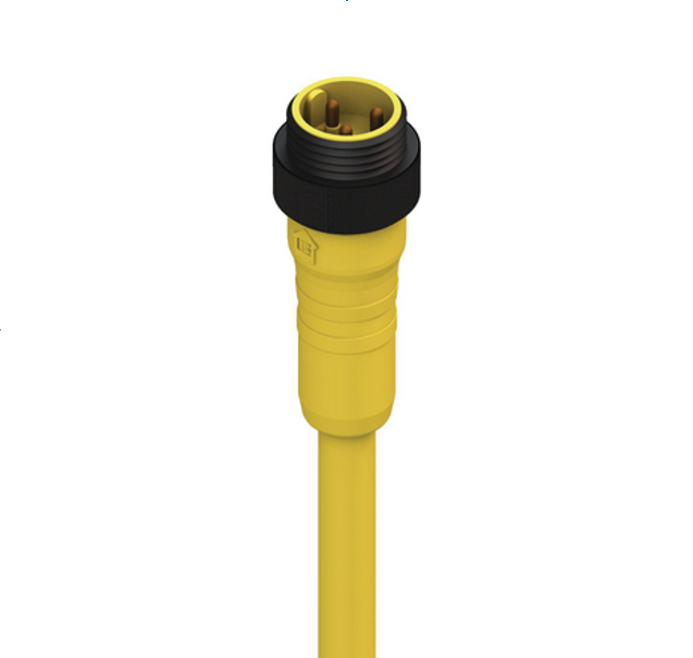

Single-Ended Cordset | 7/8- Male Straight | #Contacts: 3 | 300 V / 8 A | Cable: PVC Yellow; 3x18 AWG; IEC | UL 2238; cURus"
- Availability
- Global
- Status
- Active
- Orderable items
- 5
Part numbers
RS 30-731 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 500002676 | RS 30-731/6F | 6 ft | Order online |
| 500002673 | RS 30-731/12F | 12 ft | Order online |
| 500002792 | RS 30-731/15F | 15 ft | Order online |
| 500002674 | RS 30-731/20F | 20 ft | Order online |
| 500002675 | RS 30-731/30F | 30 ft | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | MINI 7/8" |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | Molded | 7/8" Male | Straight |
| Number of Pins | 3 |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Male Thread, Coupling Screw |
| Voltage Rating | 300 V |
| Rated Voltage (UL) | 300 V |
| Current Rating | 8 A |
| Rated Current (UL)* | 8 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C to + 90°C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
Face View
| Pin 1 | black |
|---|---|
| Pin 2 | brown |
| Pin 3 | blue |
Materials
| Contact Base Material | Copper Alloy (CuZn) |
|---|---|
| Side 1 Contact Plating | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color | Yellow |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | Thermoplastic polyurethane (TPU) |
| Molded Body Color | Yellow |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | Aluminum (Al) |
| Attachment Plating | Anodized Black |
Circuitry
| Fastening Torque (Attachment) | MINI: 70 Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 731 |
|---|---|
| Conductor Size | 18 AWG |
| Number of Wires | 3 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 5 mio |
| Conductor Material | Cu |
| Cable Jacket Material | Thermoplastic Elastomers (TPE) |
| Cable Jacket Color | Yellow |
| Cable Diameter D | Ø 7.2 mm (.284") |
| Wire Insulation Material | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter | Ø 1.83 mm [0.072”] |
| Overall Shield (Cable) | Unshielded |
| Ambient Temperature (Fixed Installation) | - 25 °C to +105 °C (PLTC 90 °C) |
| Ambient Temperature (Flex Installation) | - 10 °C to +105 °C (PLTC 90 °C) |
| UL Cable Type | UL: PLTC / AWM 20327 / CSA: AWM I/II A/B |
| Flammability Class (Cable Jacket) | UL VW-1 CSA FT-1 |
| Cable Characteristics | Flexibility: Excellent | Abrasion Resistance: Very Good | Chemical Resistance: resists water, oils, greases, acids, alkalis, and solvents| Flame Retardance: Good | Halogen-Free: No | Mechanical Durability: Good (resists impact, tear, and flex) | Environmental Suitability: outdoor, oily, wet, or rough environments |
Approvals
| UL-File | E315587 |
|---|---|
| UL | UL 2238; cURus |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | No |
|---|---|
| Oil Resistance | Yes |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
