Obsolete | Replacement: RKWU 19-242

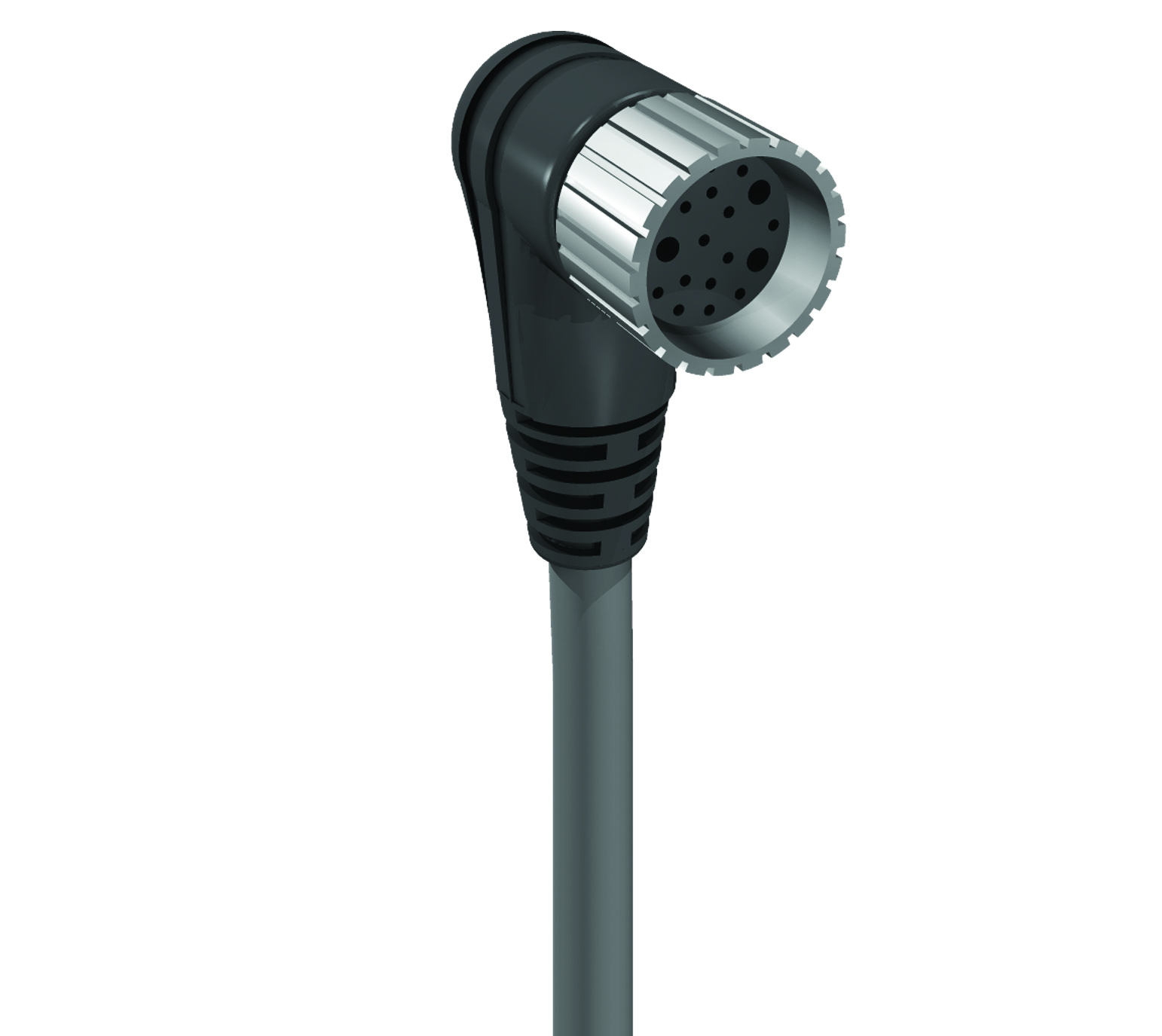

M23 - Singled-Ended Female Angled Cordset | #Contacts: 19 | 120 V / 16x8 A + 3x10 A | Grey PUR Jacket, 16x0.5 mm2 (20 AWG) + 3x1.0 mm2 (17 AWG), IEC
- Availability
- Global
- Status
- Obsolete
- Orderable items
- 3
Part numbers
RKWU 19-355 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 89215 | RKWU 19-355/5 M | 5 m | Order online |
| 74622 | RKWU 19-355/10 M | 10 m | Order online |
| 104773 | RKWU 19-355/15 M | 15 m | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | M23 Power |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Socket Contact / Female |
| Connector Design | M23 | Female |19 Pole | 90° |
| Number of Pins | 19 |
| Shielding Type | Unshielded |
| Attachment Type | Coupling Nut |
| Voltage Rating | 125 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 120 V AC/DC |
| Current Rating | 16 x 8 A (pin-Ø 1 mm), 3 x 10 A (contact-Ø 1.5 mm) |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Cross Section | 16x0.5mm2 + 3x1.0 mm2 |
| Ambient Temperature (Operation)* | - 25 °C to + 80 °C |
| Protection Degree / IP Rating** | IP67 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect / disconnect under load. |
| Particularities | When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54. |
Face View
| Pin 1 | violet |
|---|---|
| Pin 2 | red |
| Pin 3 | grey |
| Pin 4 | red-blue |
| Pin 5 | green |
| Pin 6 | blue |
| Pin 7 | grey-pink |
| Pin 8 | white-green |
| Pin 9 | white-yellow |
| Pin 10 | white-grey |
| Pin 11 | black |
| Pin 12 | green-yellow |
| Pin 13 | yellow-brown |
| Pin 14 | brown-green |
| Pin 15 | white |
| Pin 16 | yellow |
| Pin 17 | pink |
| Pin 18 | grey-brown |
| Pin 19 | brown |
Materials
| Contact Base Material | Brass (CuZn) |
|---|---|
| Side 1 Contact Plating | Gold over Copper (Cu/Au) |
| Contact Bearer Material | Polyamide (Nylon), PA 6.6 |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94-HB |
| Molded Body Material | Thermoplastic Polyurethane (TPU) |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94-HB |
| Attachment Material | Brass (CuZn) |
| Attachment Plating | Nickel (Ni) |
| O-Ring Material | Fluorocarbon rubber (FKM) |
Cable Data
| Cable Number | 355 |
|---|---|
| Conductor Size | 16x0.5mm2 + 3x1.0 mm2 |
| Number of Wires | 19 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 5 M |
| Cycles (Torsion) | ˃ 5 M @ ± 360 °/1 m |
| Conductor Material | Cu |
| Cable Jacket Material | Polyurethane (PUR) |
| Cable Jacket Color | Grey |
| Cable Diameter D | Ø 11.60 |
| Wire Insulation Material | Thermoplastic elastomers (TPE) |
| Insulated Wire Diameter | 16x Ø1.60 mm + 3x Ø2.0 mm |
| Ambient Temperature (Fixed Installation) | - 50 °C to + 80 °C |
| Ambient Temperature (Flex Installation) | - 25 °C to + 80 °C |
| UL Cable Type | AWM: 20549 |
| Flammability Class (Cable Jacket) | IEC 60332-2 , VDE 0482-265-2-2 , EN 50265-2-2, CSA-FT2; non fire propagating and self-extinguishing |
| Cable Characteristics | Flexibility: Excellent | Abrasion Resistance: Excellent | Oil & Chemical Resistance: Excellent | UV Resistance: Excellent | Low Temp Performance: Excellent (flexible to -40°C) | Flame Retardance: Good | Halogen-Free: Yes | Mechanical Durability: Excellent (resists impact, tear, and flex) |Drag Chain | Environmental Suitability: Outdoor, oily, wet, or rough environments |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | Yes |
|---|
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect / disconnect under load. |
| Particularities | When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54. |
