7/8 - Female 90° | #Contacts: 3 | 250 V | Cable: Orange (PVC); 0.75mm2; IEC"
Single-Ended Cordset | 7/8- Female Angled | #Contacts: 3 | 250 V / 12 A | Cable: PVC Orange; 3x0.75mm2; IEC"
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers

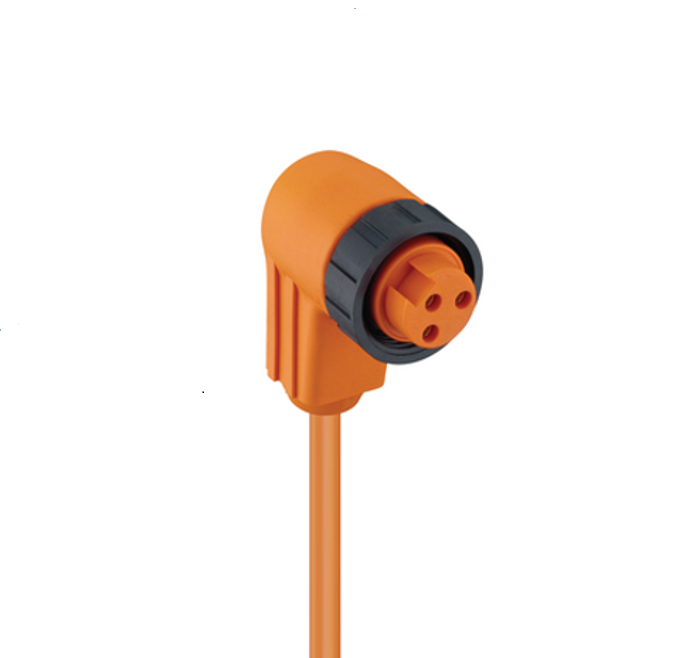

RKW 30-01 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 8155 | RKW 30-01/0,5 M | 0.5 m | Order online |
| 13758 | RKW 30-01/5 M | 5 m | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | MINI 7/8" |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Socket Contact / Female |
| Connector Design | Molded | 7/8" Female | Angled |
| Number of Pins | 3 |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Female Thread, Coupling Nut |
| Voltage Rating | 250 V |
| Operating Voltage | 230 V AC/DC |
| Current Rating | 12 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C to + 90°C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
Face View
| Pin 1 | brown |
|---|---|
| Pin 2 | green-yellow |
| Pin 3 | blue |
Materials
| Contact Base Material | Copper Alloy (CuZn) |
|---|---|
| Side 1 Contact Plating | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color | Orange |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | Thermoplastic polyurethane (TPU) |
| Molded Body Color | Orange |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | Polyamide (PA) |
Circuitry
| Fastening Torque (Attachment) | MINI: 70 Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 01 |
|---|---|
| Conductor Size | 0.75 mm2 |
| Number of Wires | 3 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1 mio |
| Conductor Material | Cu |
| Cable Jacket Material | Polyvinyl Chloride (PVC) |
| Cable Jacket Color | Orange |
| Cable Diameter D | Ø 7.20 mm (.283") |
| Wire Insulation Material | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter | Ø 2.40 mm (0.094") |
| Overall Shield (Cable) | Unshielded |
| Ambient Temperature (Fixed Installation) | - 40 °C to +90 °C |
| Ambient Temperature (Flex Installation) | + 5 °C to +90 °C |
| UL Cable Type | AWM: 2654 |
| Flammability Class (Cable Jacket) | DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1; flame-retardant and self-extinguishing |
| Cable Characteristics | Flexibility: Good | Abrasion Resistance: Good | Chemical Resistance: resists water, oil, acids, and alkalis| Flame Retardance: Good | Halogen-Free: No | Mechanical Durability: Good (resists impact, tear, and flex) | Environmental Suitability: Indoor, excellent balance of performance, cost, and versatility |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | No |
|---|
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
