Mini Power Receptacle Connector: 1 3/8", female, front mount, 4-pin(3+PE), silver housing, 600 V, 40 A, 10 AWG
Mini Power Receptacle Connector: 1 3/8", female, front mount, 4-pin(3+PE), silver housing, 600 V, 40 A, 10 AWG
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers

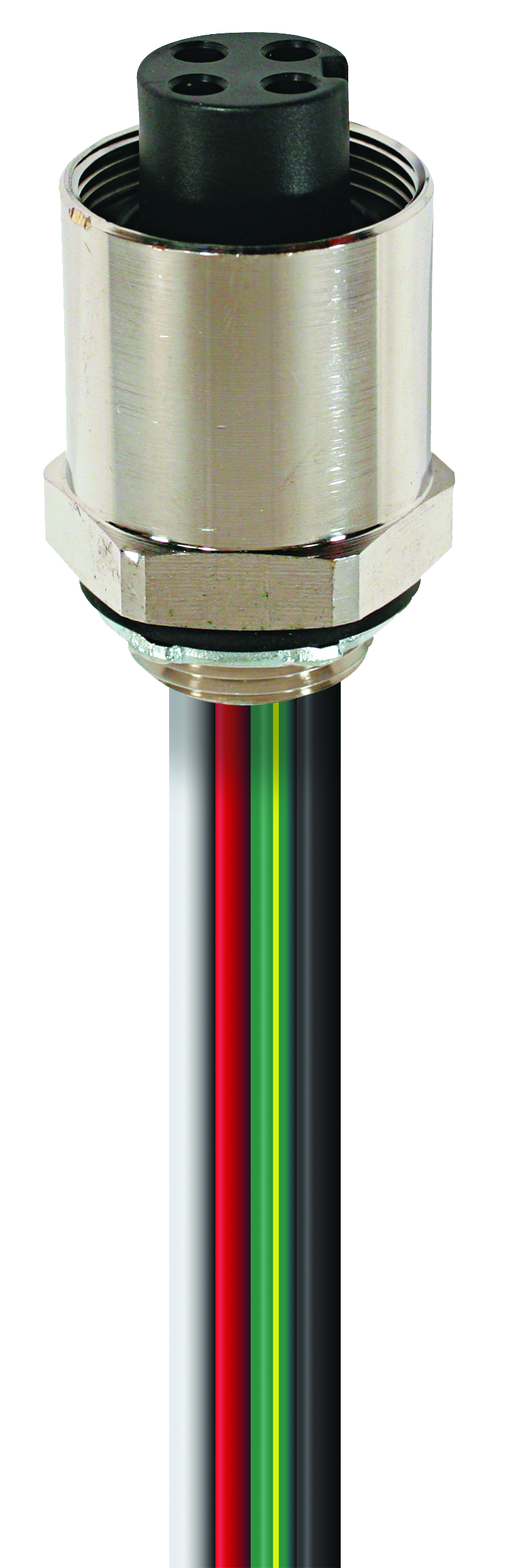

RKFP 4-3/4NPT-803 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 511000372 | RKFP 4-3/4NPT-803/0.5M | 0.5 m | Order online |
| 511000373 | RKFP 4-3/4NPT-803/1M | 1 m | Order online |
| 511000881 | RKFP 4-3/4NPT-803/2M | 2 m | Order online |
| 511000374 | RKFP 4-3/4NPT-803/3M | 3 m | Order online |
Specifications
Face View
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | Mini Power 1-3/8" |
| Connector Type | Receptacle |
| Side 1 Type of Contact/Gender | female |
| Connector Design | straight |
| Number of Pins | 4(3+PE) |
| Shielding Type | Unshielded |
| Rated Voltage (UL) | 600 V |
| Rated Current (UL)* | 40 A |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | -40°C to +90°C |
| Protection Degree / IP Rating** | IP65, IP67 |
Materials
| Contact Base Material | Cu Alloy |
|---|---|
| Side 1 Contact Plating | Au |
| Contact Bearer Material | PVC |
| Contact Bearer Color | black |
| Housing Material | Brass |
| Housing Plating | Ni |
| Housing Color | Silver |
Cable Data
| Conductor Size | 10 AWG |
|---|---|
| Number of Wires | 4 |
| Conductor Material | Cu |
| Wire Insulation Material | PVC |
| Insulated Wire Diameter | ø 0.175 in |
| Ambient Temperature (Fixed Installation) | -40 °C to +90 °C |
Approvals
| UL-File | UL: E482233 |
|---|---|
| UL | UL 2237 |
| CSA | C-UL LISTED: E482233 |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|
