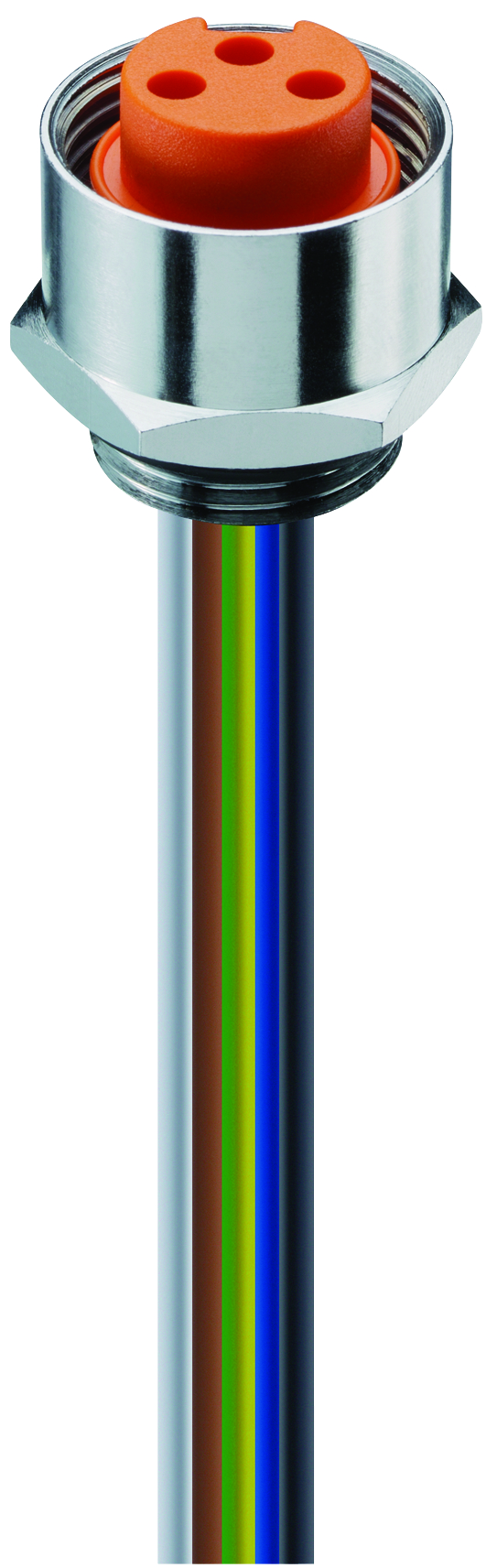

7/8" Power Receptacle Connector: Female, front mount, 3-pin(2+PE), silver housing, 230 V AC/DC, 12 A, 0.75 mm2
7/8" Power Receptacle Connector: Female, front mount, 3-pin(2+PE), silver housing, 230 V AC/DC, 12 A, 0.75 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RKF 30/13.5-01 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 11264 | RKF 30/13,5-01 | 0.3 m | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | 7/8" |
| Connector Type | Receptacle |
| Side 1 Type of Contact/Gender | female |
| Connector Design | front mount |
| Number of Pins | 3 |
| Shielding Type | Unshielded |
| Voltage Rating | 250 V AC/DC |
| Operating Voltage | 230 V AC/DC |
| Current Rating | 12 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Ambient Temperature (Operation)* | -25 °C to +90 °C |
| Protection Degree / IP Rating** | IP68 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect / disconnect under load. |
Face View
| Pin 1 | brown |
|---|---|
| Pin 2 | green-yellow |
| Pin 3 | blue |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | TPU |
| Contact Bearer Color | orange |
| Housing Material | CuZn, nickel-plated |
| O-Ring Material | Neoprene |
Cable Data
| Conductor Size | 0.75 mm2 |
|---|---|
| Number of Wires | 3 |
| Conductor Material | Cu |
| Wire Insulation Material | PVC |
| Insulated Wire Diameter | ø 2.40 mm |
| UL Cable Type | AWM: 1569 |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect / disconnect under load. |
