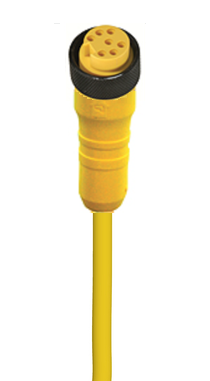

MINI B | Cordset | 1 Female Straight, 7-socket → Open End | Yellow TPE; 16 AWG | 600 V / 8 A
MINI B | Single-Ended Cordset | 1 Female Straight, 7-socket → Open End | Cable Yellow TPE; 16 AWG | 600 V / 8 A
- Availability
- Global
- Status
- Active
- Orderable items
- 8
Part numbers
RK 70M-822 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 540004469 | RK 70M-822/1M | 1 m | Order online |
| 540001252 | RK 70M-822/2M | 2 m | Order online |
| 540002525 | RK 70M-822/3M | 3 m | Order online |
| 540000013 | RK 70M-822/4M | 4 m | Order online |
| 540001253 | RK 70M-822/5M | 5 m | Order online |
| 540000018 | RK 70M-822/6M | 6 m | Order online |
| 540000151 | RK 70M-822/10M | 10 m | Order online |
| 540003332 | RK 70M-822/25M | 25 m | Order online |
Specifications
Information
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | MINI 1" |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Socket Contact / Female |
| Connector Design | Molded | 1" Female | Straight |
| Number of Pins | 7 (6+PE) |
| Coding, Side 1 | A |
| Shielding Type | Unshielded |
| Attachment Type | Female Thread, Coupling Nut |
| Voltage Rating | 600 V |
| Rated Voltage (UL) | 600 V |
| Operating Voltage | 540 V AC/DC |
| Current Rating | 8 A |
| Rated Current (UL)* | Power 8 A | Signal 8 A |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C to + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | Do not connect / disconnect under load. |
Face View
| Pin 1 | white/black |
|---|---|
| Pin 2 | black |
| Pin 3 | white |
| Pin 4 | red |
| Pin 5 | orange |
| Pin 6 | blue |
| Pin 7 | green |
Materials
| Contact Base Material | Copper Alloy (CuZn) |
|---|---|
| Side 1 Contact Plating | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color | Yellow |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | Thermoplastic polyurethane (TPU) |
| Molded Body Color | Yellow |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | Aluminum (Al) |
| Attachment Plating | Anodized Black |
Circuitry
| Fastening Torque (Attachment) | MINI: 70 Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 822 |
|---|---|
| Conductor Size | 16 AWG |
| Number of Wires | 7 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 5 mio |
| Conductor Material | Cu |
| Cable Jacket Material | Thermoplastic Elastomers (TPE) |
| Cable Jacket Color | Yellow |
| Cable Diameter D | Ø 10.55 mm | 0.415" |
| Wire Insulation Material | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter | Ø 2.56 mm | 0.101" |
| Overall Shield (Cable) | Unshielded |
| Ambient Temperature (Fixed Installation) | - 30 °C to + 90 °C |
| Ambient Temperature (Flex Installation) | + 5 °C to + 90 °C |
| Ambient Temperature (Fixed Installation short-term 100h) | - 30 °C to + 90 °C |
| Ambient Temperature (Drag Chain Inst) | - 5° C to + 90° C |
| UL Cable Type | UL: NEC Type TC-ER (UL 1277) |
| Flammability Class (Cable Jacket) | UL 1685, CSA FT4, IEEC 1202 |
| Cable Characteristics | Flexibility: Excellent | Abrasion Resistance: Very Good | Chemical Resistance: resists water, oils, greases, acids, alkalis, and solvents| Flame Retardance: Good | Halogen-Free: No | Mechanical Durability: Good (resists impact, tear, and flex) | Environmental Suitability: outdoor, oily, wet, or rough environments |
Approvals
| UL-File | E315587 |
|---|---|
| UL | UL 2238; cURus |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Halogenfree | No |
|---|---|
| Oil Resistance | Yes |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | Do not connect / disconnect under load. |
