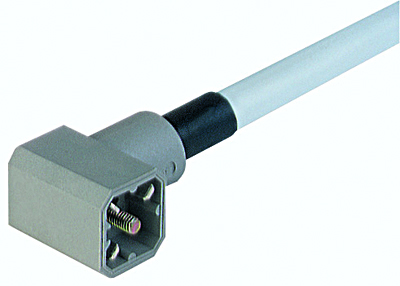

G Type - Male 90° | #Contacts: 3 | 50 V |Cable: Grey (PVC); 0.25 mm2; IEC
G Type - Male Angled | #Contacts: 3 | 50 V / 4 A |Cable: Grey (PVC); 3x0.25 mm2; IEC
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
G 3 KW 3 M is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 932119002 | G 3 KW 3 M 1M | 1 m | Order online |
Specifications
Information
| Product Family | Industrial Connectors |
|---|---|
| Side 1 Product Sub Family | G Series |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Pin Contact / Male |
| Connector Design | Angled (90°) Body |
| Number of Pins | 3 |
| Shielding Type | Unshielded |
| Attachment Type | Central Screw |
| Voltage Rating | 50 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 50 V AC/DC |
| Current Rating | 4 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Mating Cycles | ≤ 50 |
| Type of Connection | Solder |
| Cross Section | 0.25 mm2 |
| Ambient Temperature (Operation)* | -40°C to +90°C |
| Protection Degree / IP Rating** | IP65 |
| Side 1 Design Standard | DIN EN 61984 (VDE 0627) |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | Do not connect or disconnect under load. |
Face View
| Pin 1 | white |
|---|---|
| Pin 2 | brown |
| Pin 3 | green |
Materials
| Contact Base Material | Brass (CuZn) |
|---|---|
| Side 1 Contact Plating | Copper-Tin Alloy (Cu/Sn) |
| Contact Bearer Material | PA GF |
| Contact Bearer Color | Grey |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | Polyvinyl Chloride (PVC) |
| Molded Body Color | Grey |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | 4.8 , Fe/Zn B |
Circuitry
| Fastening Torque (Attachment) | M 3: (50-60) Ncm |
|---|---|
| Accessories to Order Separately | Central Screw Stainless Steel: 732750003 |
Cable Data
| Cable Number | LF-YY 3X0.25 |
|---|---|
| Conductor Size | 0.25 mm2 |
| Number of Wires | 3 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Conductor Material | Cu |
| Cable Jacket Material | Polyvinyl Chloride (PVC) |
| Cable Jacket Color | Grey |
| Cable Diameter D | ø 4.35 mm |
| Wire Insulation Material | Polyvinyl Chloride (PVC) |
| Ambient Temperature (Fixed Installation) | -25 °C to +70 °C |
| Ambient Temperature (Flex Installation) | -25 °C to +70 °C |
Approvals
| VDE | VDE-Reg.-Nr.: 3113 |
|---|
Safety & Environmental Compliance
| RoHS Compliant | Compliant |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note | Do not connect or disconnect under load. |
