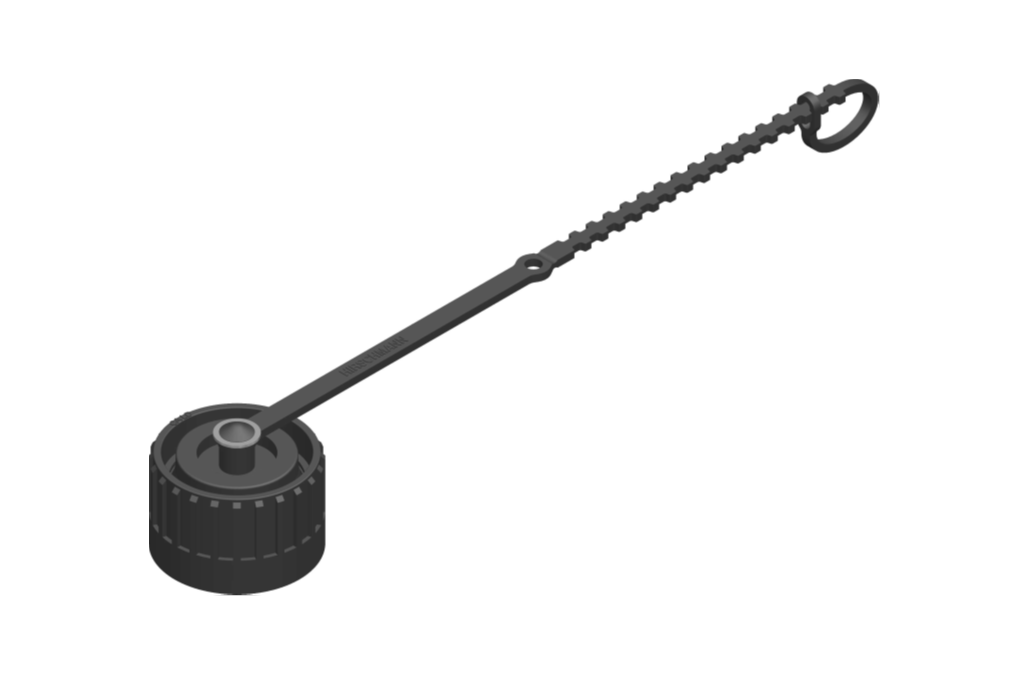

CA - Dust Cap
CA - Dust Cap Female Thread
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
CA 00 SD 1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Housing Color | Order |
|---|---|---|---|
| 831530400 | CA 00 SD 1 | black | Order online |
Specifications
Face View
| Product Family | Power Connector |
|---|---|
| Side 1 Product Sub Family | CA-Series |
| Connector Type | Dust Cap |
| Connector Sub Type | CA Power Series |
| Side 1 Type of Contact/Gender | Female Thread |
| Connector Design | CA (TR22)| Female | Dust Cap |
| Attachment Type | Female Thread (coupling nut) |
| Ambient Temperature (Operation)* | - 40 °C to + 90 °C |
| Protection Degree / IP Rating** | IP66, IP67 |
Materials
| Flammability Class (Attachment) | UL 94 V-0 |
|---|
Circuitry
| Mating Connectors / Fitting to | CA 3 LS; CA 3 W LS; CA 6 LS; CA 6 W LS; CA 3 GS; CA 6 GS |
|---|
Notes
| Protection Degree / IP Rating Note | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
|---|
Resources
Related power connectors

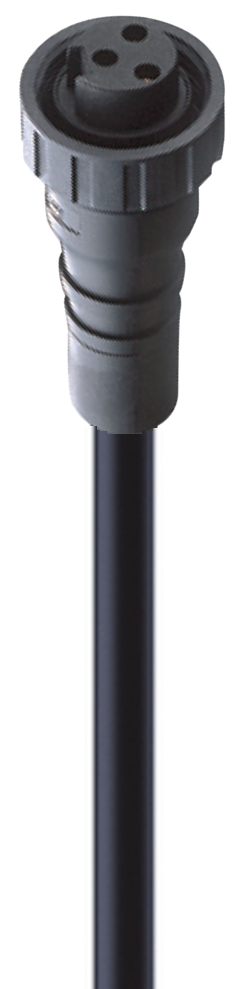

0905 203 301
DeviceNet Power Supply Cable, 7/8" Power Single-Ended Cordset: Female straight, 3-pin(2+PE), black body, 63 V, 12 A; PUR black cable, 1.00 mm2

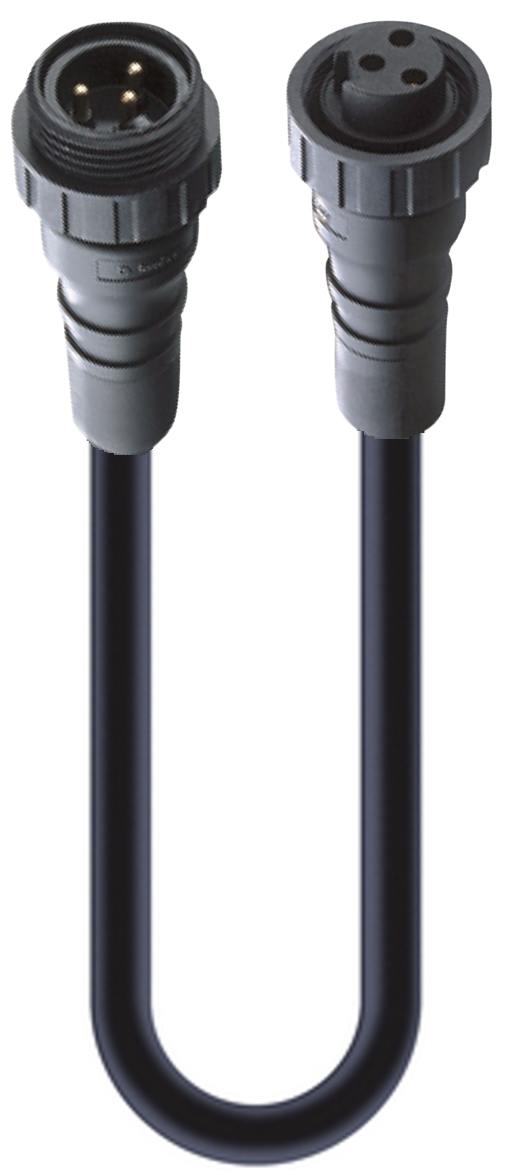

0905 203 302
