7/8 - Male x two 7/8" Female T | #Contacts: 3 | 600 V

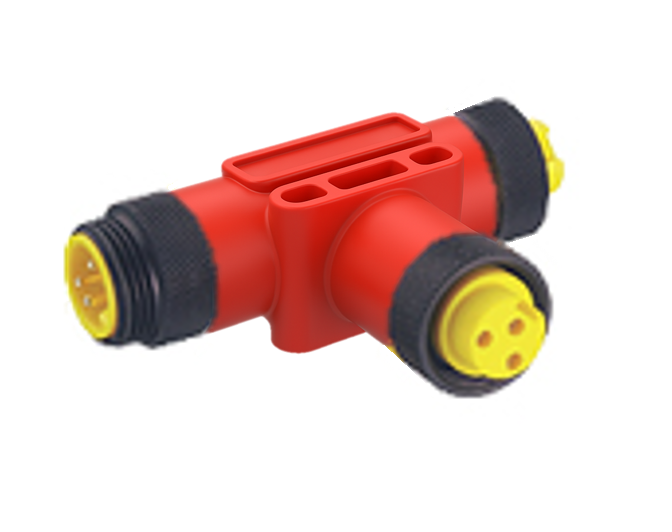

Molded Tee Connector | 7/8- Male x two 7/8"- Female | #Contacts: 3 | 600 V / 8 A (pending UL 10 A)
- Availability
- Global
- Status
- Active
Specifications
General Information
| Belden Brand | Lumberg Automation |
|---|---|
| Note | Do not connect / disconnect under load. |
Product description
| Housing Color | Red |
|---|---|
| Number of Pins | 3 |
| Type | Catalog Product |
Technical data
| Contact Bearer Color | Yellow |
|---|---|
| Contact Bearer Material | Thermoplastic polyurethane (TPU) |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Current Rating | 8 A |
| Voltage Rating | 600 V |
| Side 1 Type of Contact/Gender | Socket |
Product Materials
| Contact Base Material | Brass (CuZn) |
|---|---|
| Side 1 Contact Plating | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Coupling nut material | Aluminum (Al), Anodized Black |
| Housing Material | Thermoplastic polyurethane (TPU) |
Product Approvals
| UL | UL 2238 in preparation |
|---|
CR-data
| Customer | Catalog Product |
|---|
History
| Update and Revision | Revision Number: 0.8 Revision Date: 02-20-2026 |
|---|
