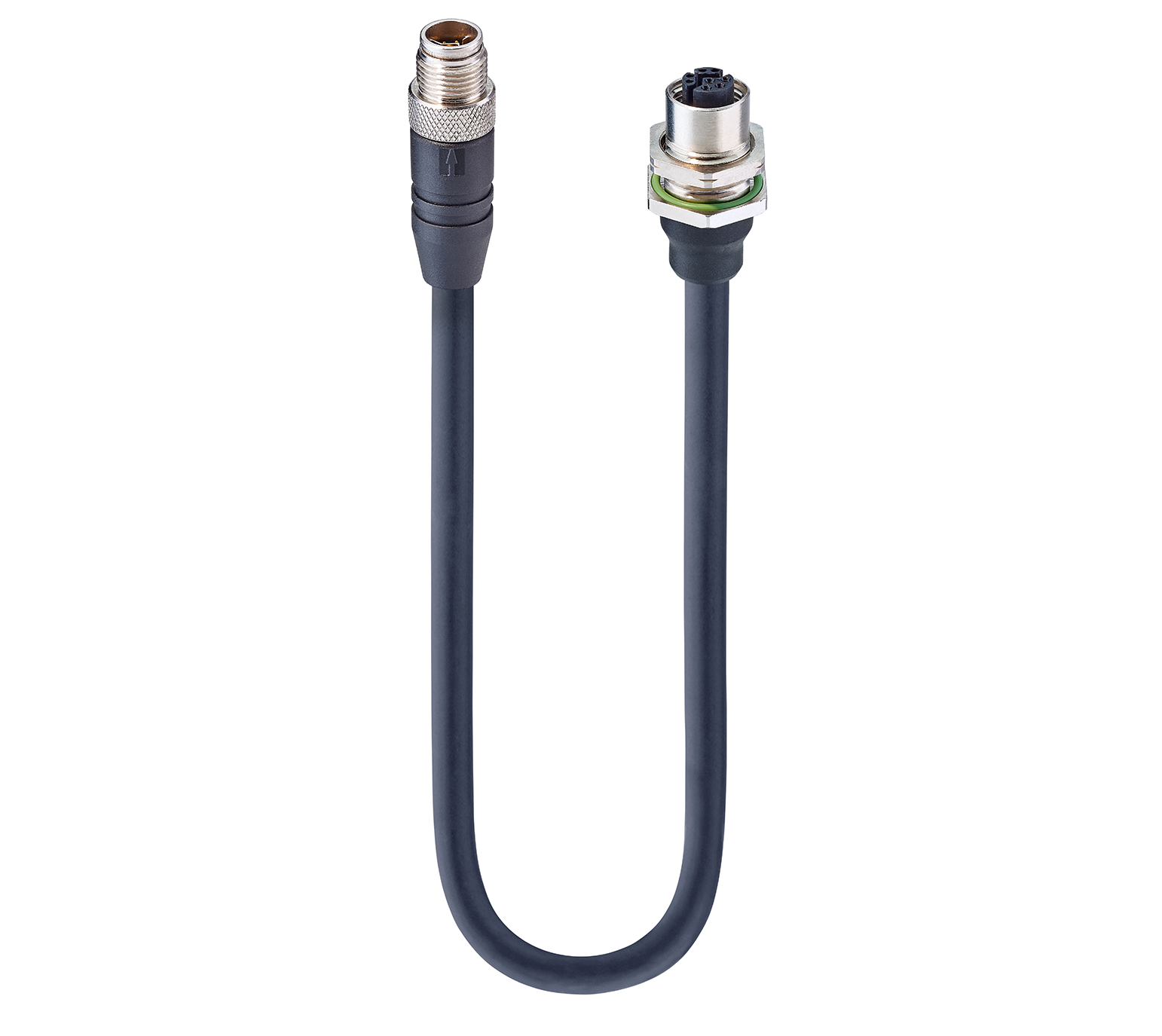

Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight Y-coded black M12 Hybrid to female straight Y-coded black M12 Hybrid Receptacle, shielded, 50 V AC/ DC, Power: 6 A; Data: 0.5 A; PUR black cable, 8-wires, Data: 4x0.15 mm2 + Power: 4x0.75...
Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight Y-coded black M12 Hybrid to female straight Y-coded black M12 Hybrid Receptacle, shielded, 50 V AC/ DC, Power: 6 A; Data: 0.5 A; PUR black cable, 8-wires, Data: 4x0.15 mm2 + Power: 4x0.75 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 8
Part numbers
RSTS 8Y-RKHS 8Y-922 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 934966201 | RSTS 8Y-RKHS 8Y-922/0,3 M | 0.3 m | Order online |
| 934966202 | RSTS 8Y-RKHS 8Y-922/0,6 M | 0.6 m | Order online |
| 934966203 | RSTS 8Y-RKHS 8Y-922/1 M | 1 m | Order online |
| 934966204 | RSTS 8Y-RKHS 8Y-922/2 M | 2 m | Order online |
| 934966205 | RSTS 8Y-RKHS 8Y-922/3 M | 3 m | Order online |
| 934966206 | RSTS 8Y-RKHS 8Y-922/5 M | 5 m | Order online |
| 934966207 | RSTS 8Y-RKHS 8Y-922/10 M | 10 m | Order online |
| 934966208 | RSTS 8Y-RKHS 8Y-922/15 M | 15 m | Order online |
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Voltage Rating | 50 V |
| Rated Voltage (UL) | 50 V AC/DC |
| Rated Impulse Voltage | 0.8 kV |
| Operating Voltage | 50 V AC/ DC |
| Current Rating | Power: 6 A; Data: 0.5 A |
| Rated Current (UL)* | Power: 6 A; Data: 0.5 A |
| Data Transmission Type | Fast Ethernet Cat5e |
| Data Transmission Rate | 100 Mbit/s |
| Update and Revision | Revision Number: 0.48 Revision Date: 02-20-2026 |
Face View Side 1
| Pin 1 | white-orange |
|---|---|
| Pin 2 | orange |
| Pin 3 | white-green |
| Pin 4 | green |
| Pin 5 | blue |
| Pin 6 | white |
| Pin 7 | brown |
| Pin 8 | black |
Face View Side 2
| Pin 1 | white-orange |
|---|---|
| Pin 2 | orange |
| Pin 3 | white-green |
| Pin 4 | green |
| Pin 5 | blue |
| Pin 6 | white |
| Pin 7 | brown |
| Pin 8 | black |
Technical Data Side 1
| Side 1 Product Sub Family | M12 Hybrid |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Coupling Screw |
| Number of Pins | 8 |
| Coding, Side 1 | Y |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 90 °C |
| Operating Temperature (UL) | max. + 80 °C |
| Protection Degree / IP Rating** | IP65, IP67, IP69K |
| Side 1 Design Standard | IEC 61076-2-113 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuZn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PBT-GF |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | Data: UL 94 V-2 + Power: UL 94 V-0 |
| Molded Body Material | TPU |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 HB |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Shielding Material | GD-Zn, nickel-plated |
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
| Note | Do not connect or disconnect under load. |
Cable Data
| Cable Number | 922 |
|---|---|
| Conductor Size | Data: 4x0.15 mm2 + Power: 4x0.75 mm2 |
| Number of Wires | 8 |
| Minimal Bending Radius (Fixed Inst) | ˃ 6 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1-2 M |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | black matt similarly RAL 9005 |
| Cable Diameter D | ø 8.00 ± 0.3 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | Data: ø 1.15 ± 0.03 mm + Power: ø 1.70 ± 0.05 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Element Shield | Shielding Foil |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation) | - 30 °C - + 70 °C |
| UL Cable Type | AWM: 20233 |
| Cable Characteristics | Exclusion of dangerous materials; Exclusion of PVC and Silicone |
| Core Colors | Data: green, orange, white-green, white-orange + Power: brown, black, white, blue |
Technical Data Side 2
| Side 2 Product Sub Family | M12 Hybrid Receptacle |
|---|---|
| Side 2 Type of Contact/Gender | Female |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Coupling Nut |
| Number of Pins, Side 2 | 8 |
| Coding, Side 2 | Y |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Ambient Temperature (Operation), Side 2* | - 40 °C - + 90 °C |
| Operating Temperature (UL), Side 2 | max. + 80 °C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67, IP69K |
| Design Standard, Side 2 | IEC 61076-2-113 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | CuZn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | PBT-GF |
| Contact Bearer Color, Side 2 | Black |
| Flammability Class (Contact Bearer), Side 2 | Data: UL 94 V-2 + Power: UL 94 V-0 |
| Molded Body Material, Side 2 | TPU |
| Molded Body Color, Side 2 | Black |
| Flammability Class (Molded Body), Side 2 | UL 94 HB |
| Housing Material, Side 2 | CuZn, Nickel-plated |
| Attachment Material, Side 2 | CuZn |
| Attachment Plating, Side 2 | Nickel-plated |
| Shielding Material, Side 2 | Housing: CuZn, tin-plated, Sleeve: GD-Zn, nickel-plated |
Approvals
| UL-File | E315587 |
|---|---|
| UL | UL 2238; cULus |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | EN 50267-2-1, IEC 60754-1 max. 0,5% HCI |
|---|---|
| Oil Resistance | IEC 60811-2-1, ASTM 1 standard oil requirement |
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| Note Derating | Notice derating |
History
| Update and Revision | Revision Number: 0.48 Revision Date: 02-20-2026 |
|---|
