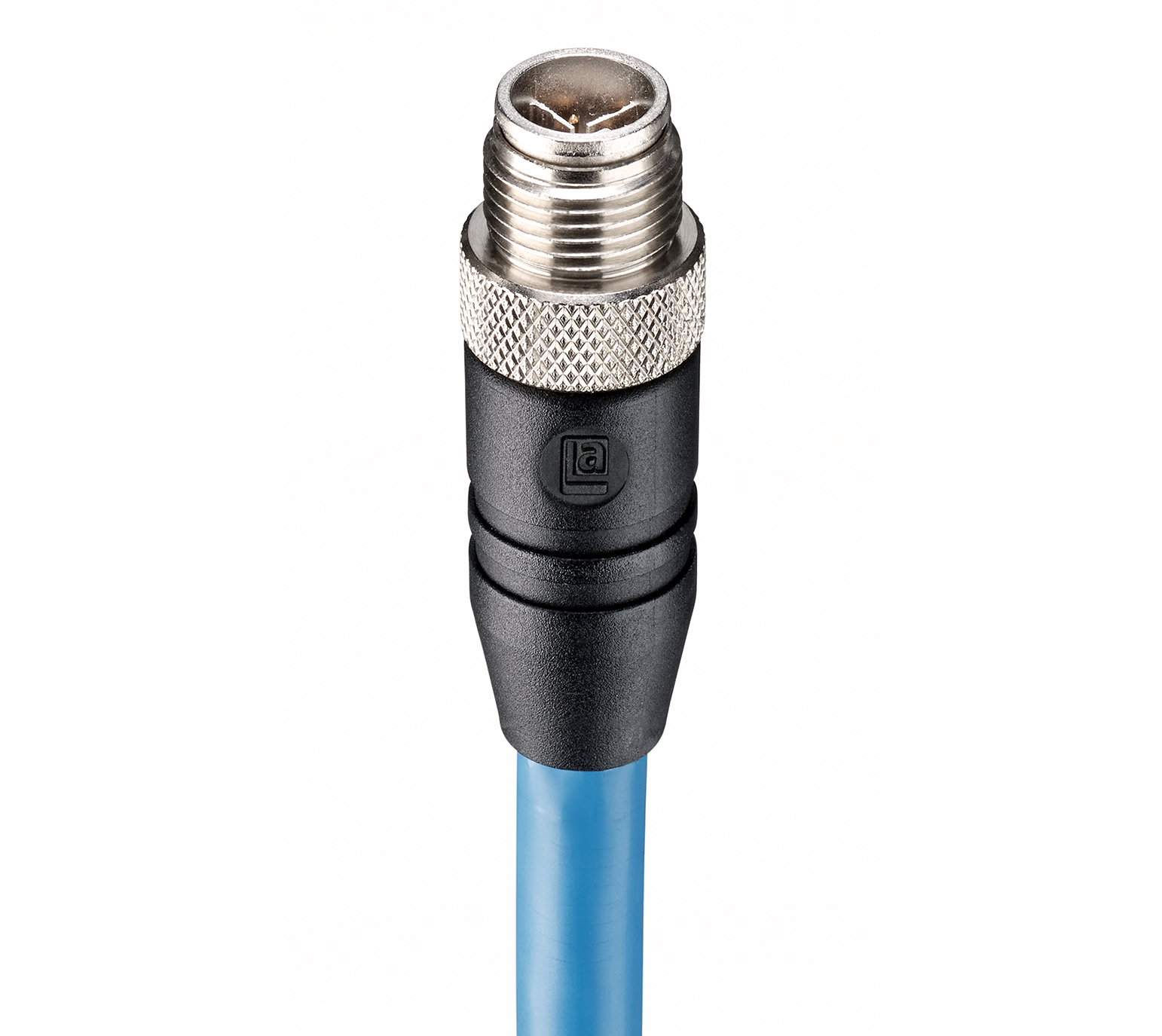

Gigabit Ethernet Cat7 Data Single-Ended Cordset: M12 Standard, male, straight, 8-pin, X-coded, shielded, black body, 50 V AC / 60 V DC, 0.5 A; TPE Teal cable, 8-wires, 4x2x0.14 mm2
Gigabit Ethernet Cat7 Data Single-Ended Cordset: M12 Standard, male, straight, 8-pin, X-coded, shielded, black body, 50 V AC / 60 V DC, 0.5 A; TPE Teal cable, 8-wires, 4x2x0.14 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
RSTS 8X-S478 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 20122 | RSTS 8X-S478/1 M | 1 m | Order online |
| 20125 | RSTS 8X-S478/3 M | 3 m | Order online |
| 20127 | RSTS 8X-S478/10 M | 10 m | Order online |
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Side 1 Product Sub Family | M12 Standard |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Number of Pins | 8 |
| Coding, Side 1 | X |
| Shielding Type | Shielded |
| Attachment Type | Coupling Screw |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 0.8 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 0.5 A |
| Data Transmission Type | Gigabit Ethernet Cat7 |
| Data Transmission Rate | 10 Gbit/s |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 80 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-109 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
Face View
| Pin 1 | white (orange) |
|---|---|
| Pin 2 | orange |
| Pin 3 | white (green) |
| Pin 4 | green |
| Pin 5 | white (brown) |
| Pin 6 | brown |
| Pin 7 | white (blue) |
| Pin 8 | blue |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Molded Body Material | PA |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 V-0 |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Shielding Material | GD-Zn, nickel-plated |
Circuitry
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
|---|
Cable Data
| Cable Number | S478 |
|---|---|
| Conductor Size | 4x2x0.14 mm2 |
| Number of Wires | 8 |
| Minimal Bending Radius (Fixed Inst) | ˃ 30 mm |
| Minimal Bending Radius (Flexible Inst) | ˃ 65 mm |
| Welding Resistance | spark weld resistant |
| Conductor Material | Stranded PACW |
| Cable Jacket Material | TPE |
| Cable Jacket Color | Teal |
| Cable Diameter D | ø 6.8 ± 0.2 mm |
| Wire Insulation Material | PE |
| Insulated Wire Diameter | ø 1.05 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | -15 °C - + 60 °C |
| Flammability Class (Cable Jacket) | IEC 60332-1-2 |
| Cable Characteristics | Exclusion of dangerous materials |
| Core Colors | Twisted pairs: white & blue, white & orange, white & green, white & brown |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Oil Resistance | IEC 60811-2-1 |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
