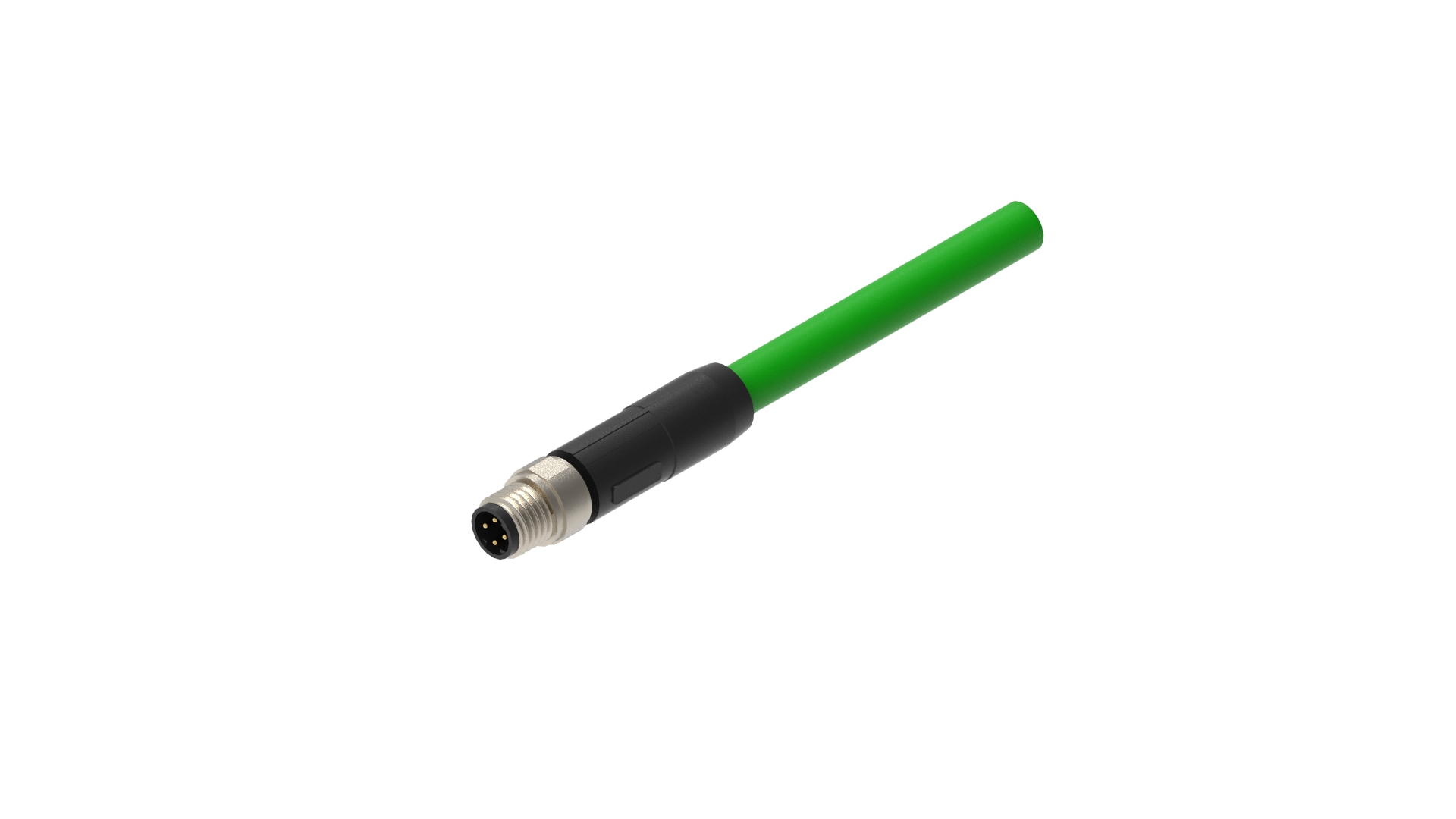

M8 pigtail, PROFINET (Fast Ethernet 100 Mbit/s), Cat 5e, shielded, male, 4 poles, D coded, straight, PUR green cable, AWM 20549, 48 V AC / 60 V DC, 4 A / 0.5 A UL rated, IP65, IP67
M8 single ended cordset for PROFINET applications, Fast Ethernet Cat 5e up to 100 Mbit/s, shielded, 4 pole, D coded, male to male, straight, PUR green cable, AWM 20549, ø 6.5 ±0.20 mm, conductor size 2x2x0.34 mm2, 48 V AC / 60 V DC operating voltage, rated current 4 A, suited for IP65 and IP67 environment
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
RSMGVS-4D-0467 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 935033001 | RSMGVS-4D-0467/01 M | 1 m | Order online |
| 935033002 | RSMGVS-4D-0467/02 M | 2 m | Order online |
| 935033003 | RSMGVS-4D-0467/05 M | 5 m | Order online |
| 935033004 | RSMGVS-4D-0467/10 M | 10 m | Order online |
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Side 1 Product Sub Family | M8 4D |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Number of Pins | 4 |
| Coding, Side 1 | D |
| Shielding Type | Shielded |
| Attachment Type | Coupling Screw |
| Voltage Rating | 60 V |
| Rated Voltage (UL) | 30 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 48 V AC / 60 V DC |
| Current Rating | 4 A |
| Rated Current (UL)* | 0.5 A |
| Data Transmission Type | Fast Ethernet Cat5e |
| Data Transmission Rate | 100 Mbit/s |
| Side 1 Contact Resistance | 10 mOhm |
| Insulation Resistance | ˃ 10^8 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 25 °C - + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-114 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
Face View
| Pin 1 | yellow |
|---|---|
| Pin 2 | white |
| Pin 3 | orange |
| Pin 4 | blue |
Materials
| Contact Base Material | CuSn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Black |
| Molded Body Material | TPU |
| Molded Body Color | Black |
| Housing Material | TPU |
| Housing Color | Black |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
Circuitry
| Fastening Torque (Attachment) | M 8x1: 20 Ncm, hand-tight |
|---|
Cable Data
| Cable Number | 467 |
|---|---|
| Conductor Size | 2x2x0.34 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | 5 x D |
| Minimal Bending Radius (Flexible Inst) | 10 x D |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | green |
| Cable Diameter D | ø 6.5 ±0.20 mm |
| Wire Insulation Material | PE |
| Insulated Wire Diameter | ø 1,63 ±0.05 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | AL-PETP |
| Ambient Temperature (Fixed Installation) | - 25 °C - + 90 °C |
| Ambient Temperature (Flex Installation) | -25 °C - +60 °C |
| Ambient Temperature (Drag Chain Inst) | - 5 °C - + 60 °C |
| UL Cable Type | AWM: 20549 |
| Flammability Class (Cable Jacket) | FT-2 |
| Cable Characteristics | Exclusion of dangerous materials |
| Core Colors | quad: white & blue & yellow & orange |
Approvals
| UL-File | E469096 |
|---|---|
| UL | UL 1863; cULus |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | IEC 60754-1 |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | Do not connect or disconnect under load. |
