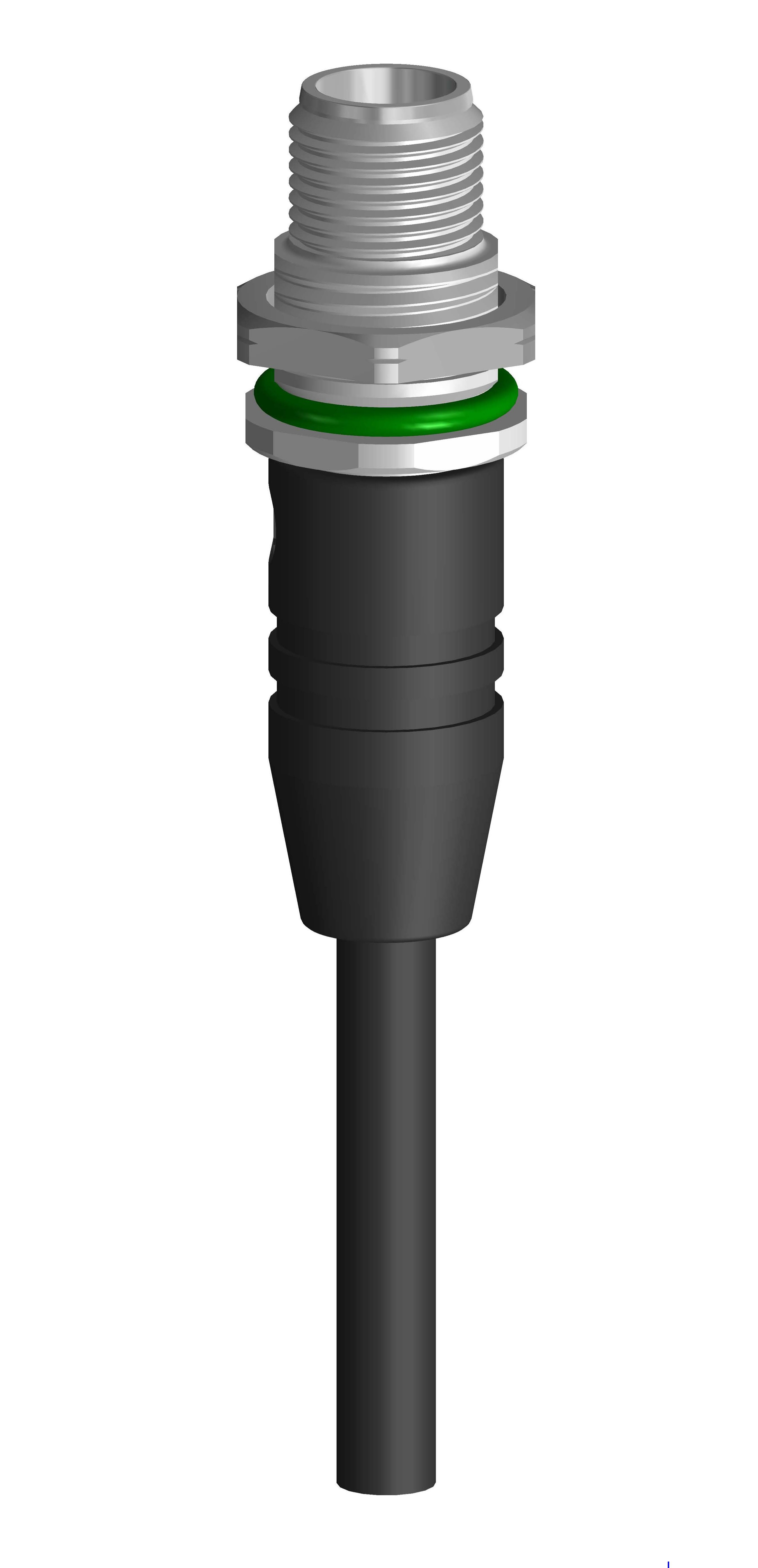

Gigabit Ethernet Cat6A Data Receptacle Connector: Male, rear mount, M12-mating side, cable - connecting side, 8-pin, X-coded, shielded, metallic housing, 50 V AC / 60 V DC, 0.5 A; PUR black cable, 8-wires, 4x2x0.14mm2
Gigabit Ethernet Cat6A Data Receptacle Connector: Male, rear mount, M12 - mating side, cable - connecting side, 8-pin, X-coded, shielded, metallic housing, 50 V AC / 60 V DC, 0.5 A; PUR black cable, 8-wires, 4x2x0.14mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RSHS 8X-478 CN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 94781001 | RSHS 8X-478/1M CN | 1m | Order online |
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Side 1 Product Sub Family | M12 Standard |
| Mating Side | M12 |
| Connecting Side | Cable |
| Connector Type | Receptacle |
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Rear Mount |
| Number of Pins | 8 |
| Coding, Side 1 | X |
| Shielding Type | Shielded |
| Attachment Type | Screw-Locking |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 50 V AC/60 V DC |
| Current Rating | 0.5 A |
| Rated Current (UL)* | 0.5 A |
| Data Transmission Rate | Gigabit Ethernet Cat6A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^ 8 Ohm |
| Mating Cycles | ≤ 100 |
| Thread Size | PG9 |
| Thread Material | CuZn |
| Thread Plating | Nickel-plated |
| Ambient Temperature (Operation)* | - 25 °C - + 85 °C |
| Protection Degree / IP Rating** | IP 67 |
| Side 1 Design Standard | IEC 61076-2-109 |
| Note Derating | Notice derating |
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | The receptacle connector is constructively intended for usage in IP67-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-109. |
Face View
| Pin 1 | white (orange) |
|---|---|
| Pin 2 | orange |
| Pin 3 | white (green) |
| Pin 4 | green |
| Pin 5 | white (brown) |
| Pin 6 | brown |
| Pin 7 | white (blue) |
| Pin 8 | blue |
Materials
| Side 1 Contact Plating | Cu/Au |
|---|---|
| Molded Body Material | PA |
| Molded Body Color | Black |
| Housing Material | CuZn |
| Housing Plating | Nickel-plated |
| O-Ring Material | FKM |
Cable Data
| Cable Number | 478 |
|---|---|
| Conductor Size | 4x2x0.14 mm2 |
| Number of Wires | 8 |
| Minimal Bending Radius (Fixed Inst) | ˃ 30 mm |
| Minimal Bending Radius (Flexible Inst) | ˃ 65 mm |
| Cycles (Bending) | ˃ 0.2 M |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | black |
| Cable Diameter D | ø 6.8 ± 0.3 mm |
| Wire Insulation Material | PE |
| Insulated Wire Diameter | ø 1.05 ± 0.05 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | 0°C - + 50 °C |
| UL Cable Type | AWM: 21327 |
| Core Colors | Twisted pairs: white & blue, white & orange, white & green, white & brown |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Note Derating | Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note | The receptacle connector is constructively intended for usage in IP67-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-109. |
