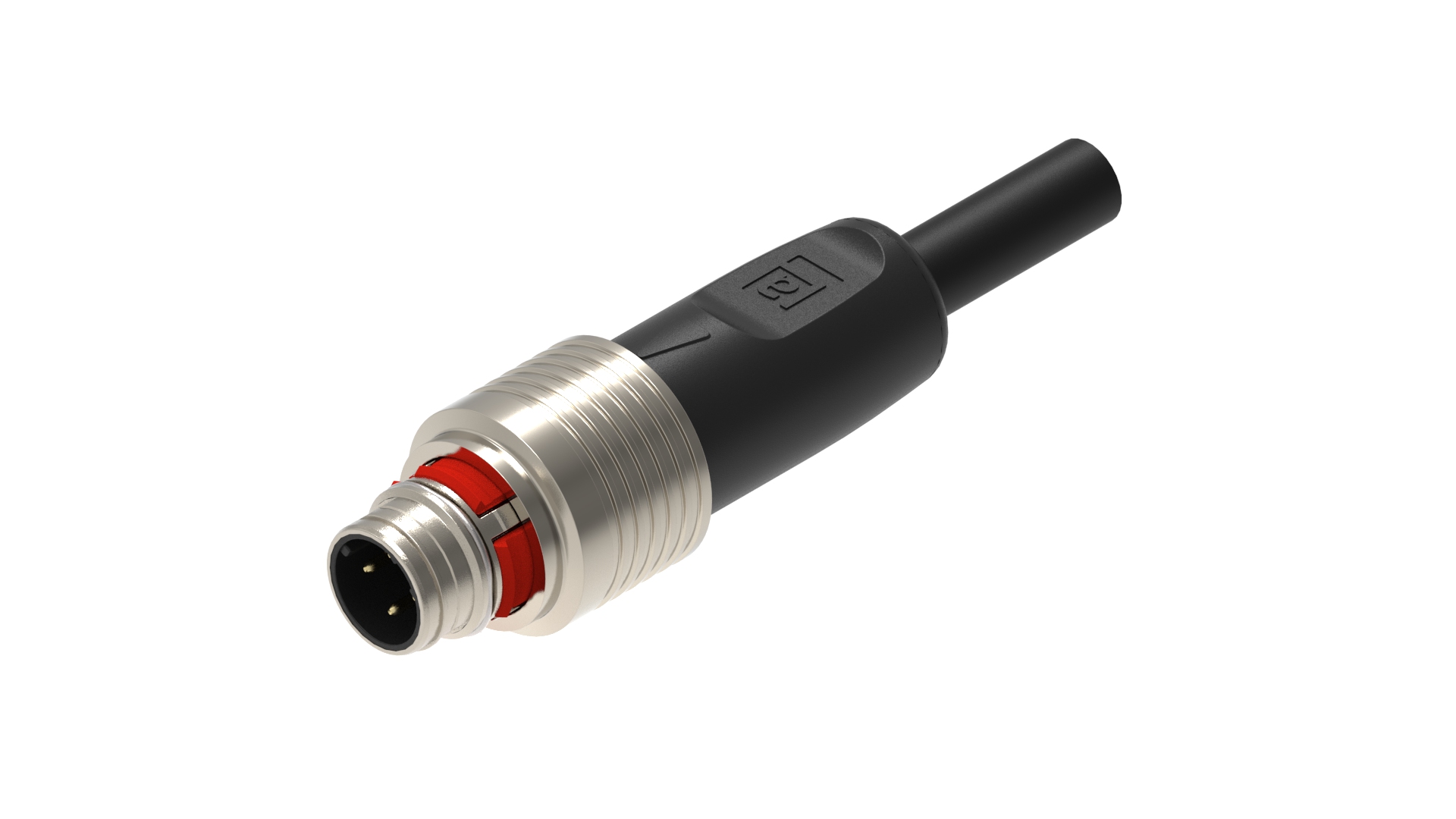

M12 pigtail, Push Pull, Rolling Stock, EN45545, PUR black cable, shielded, male, straight, D-coded, 4-Pin, 4x0.34mm2, PoE
Fast mounting Fast Ethernet Cat5e Data Single-Ended Cordset
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
RP12M-MSSV4D-0508 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 935301025 | RP12M-MSSV4D-0508-0100 | 1 m | Order online |
| 935301026 | RP12M-MSSV4D-0508-0200 | 2 m | Order online |
| 935301027 | RP12M-MSSV4D-0508-0300 | 3 m | Order online |
| 935301028 | RP12M-MSSV4D-0508-0500 | 5 m | Order online |
Specifications
Face View
| Product Family | Data Connectors |
|---|---|
| Side 1 Product Sub Family | M12 Railway push pull |
| Connector Type | Cordset, single ended |
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Number of Pins | 4 |
| Coding, Side 1 | D |
| Shielding Type | Shielded |
| Attachment Type | Inner Push Pull |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Data Transmission Type | Fast Ethernet Cat5e |
| Data Transmission Rate | 100 Mbit/s |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 85 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-101/-010, DIN EN IEC 62847 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
Materials
| Contact Base Material | CuSn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Molded Body Material | PA |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 V-0 |
| Attachment Material | PA |
| Shielding Material | GD-Zn, nickel-plated |
Circuitry
| Fastening Torque (Attachment) | PushPull |
|---|
Cable Data
| Cable Number | 508 |
|---|---|
| Conductor Size | 0.34 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Conductor Material | Cu |
| Cable Jacket Material | X-FRNC |
| Cable Jacket Color | black |
| Cable Diameter D | ø 6.70 ± 0.30 mm |
| Wire Insulation Material | Polyolefin |
| Insulated Wire Diameter | ø 1.63 ± 0.05 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 90 °C |
| Ambient Temperature (Flex Installation) | - 40 °C - + 90 °C |
| Flammability Class (Cable Jacket) | Flame resistance acc. IEC 45545: IEC 60332-1-2, EN50305 and IEC60332-3-25 cat D |
| Cable Characteristics | cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN50153 EN50155, EN50305 and CEN/TS 45545 |
| Core Colors | white & blue, yellow & orange |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | IEC 60754-1, EN 50267-1-2, HCL ˂ 0.4% |
|---|---|
| Oil Resistance | IEC 60811-2-1, EN 50306 par 4.8, EN 50306 par 4.9, EN 50306 par 4.10 |
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
