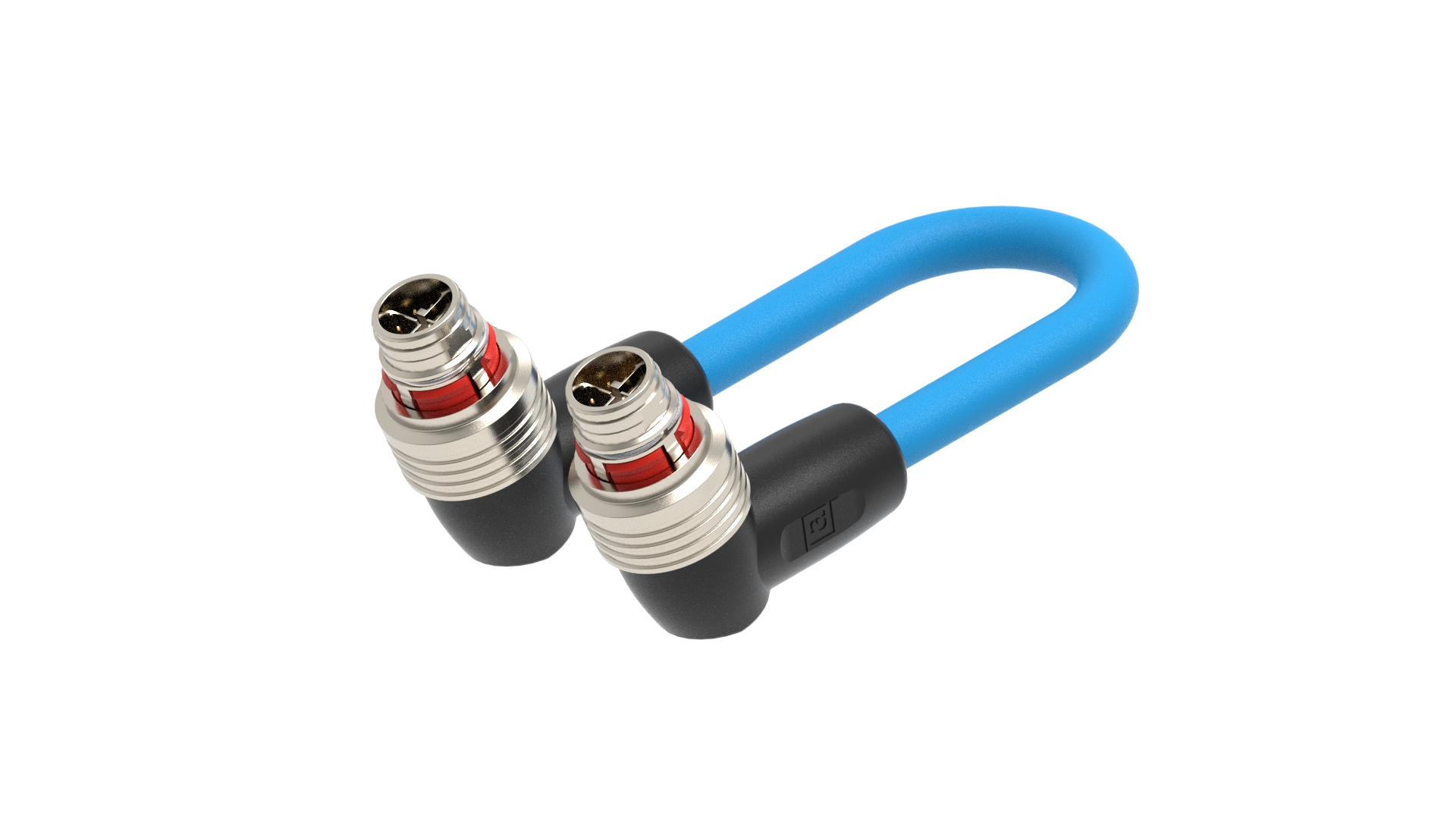

Gigabit Ethernet Cat7 Data Double-Ended Cordset: M12 PushPull Railway, male, angled, 8-pin, X-coded, shielded
Fast mounting Gigabit Ethernet Cat7 Data Double-Ended Cordset
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
RP12M-MAS78X-RP12M-MAS78X-0552 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 935308405 | RP12M-MAS78X-RP12M-MAS78X-0552-0100 | 1 m | Order online |
| 935308406 | RP12M-MAS78X-RP12M-MAS78X-0552-0200 | 2 m | Order online |
| 935308407 | RP12M-MAS78X-RP12M-MAS78X-0552-0300 | 3 m | Order online |
| 935308408 | RP12M-MAS78X-RP12M-MAS78X-0552-0500 | 5 m | Order online |
Specifications
Face View Side 1
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 0.8 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 0.5 A |
| Data Transmission Type | Gigabit Ethernet Cat7 |
| Data Transmission Rate | 10 Gbit/s |
Technical Data Side 1
| Side 1 Product Sub Family | M12 Railway push pull |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | angled |
| Attachment Type | Inner Push Pull |
| Number of Pins | 8 |
| Coding, Side 1 | X |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 85 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-109/-010, DIN EN IEC 62847 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuZn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Molded Body Material | TPU |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 V-0 |
| Attachment Material | PA |
| Shielding Material | GD-Zn, nickel-plated |
| Fastening Torque (Attachment) | PushPull |
Cable Data
| Cable Number | 552 |
|---|---|
| Conductor Size | 4x2x0.25 mm2 |
| Number of Wires | 8 |
| Minimal Bending Radius (Fixed Inst) | ˃ 4 x D |
| Conductor Material | Cu |
| Cable Jacket Material | X-FRNC/LSNH |
| Cable Jacket Color | blue |
| Cable Diameter D | ø 8.1 ± 0.3 mm |
| Wire Insulation Material | E-beam X-linked Foam-skin polyethylene |
| Insulated Wire Diameter | max. ø 1.60 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | AL-polyester foil |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 90 °C |
| Ambient Temperature (Flex Installation) | -5 °C - + 50 °C |
| Flammability Class (Cable Jacket) | IEC 60332-1-2, EN 50305 (9.1.1), IEC 60332-3-25, DIN 5510-2 protection level 1 to 4, EN 45545-2: HL1-HL3 |
| Core Colors | Twisted pairs: white & blue, white & orange, white & green, white & brown |
Technical Data Side 2
| Side 2 Product Sub Family | M12 Railway push pull |
|---|---|
| Side 2 Type of Contact/Gender | Male |
| Connector Design, Side 2 | angled |
| Attachment Type, Side 2 | Inner Push Pull |
| Number of Pins, Side 2 | 8 |
| Coding, Side 2 | X |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Design Standard, Side 2 | IEC 61076-2-109/-010, DIN EN IEC 62847 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | CuZn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | PA |
| Contact Bearer Color, Side 2 | Black |
| Flammability Class (Contact Bearer), Side 2 | UL 94 V-0 |
| Molded Body Material, Side 2 | TPU |
| Molded Body Color, Side 2 | Black |
| Flammability Class (Molded Body), Side 2 | UL 94 V-0 |
| Attachment Material, Side 2 | PA |
| Shielding Material, Side 2 | GD-Zn, nickel-plated |
| Fastening Torque (Attachment), Side 2 | PushPull |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | IEC 60754-1, EN 50267-1-2 |
|---|---|
| Oil Resistance | IEC 60811-2-1 |
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| Note Derating | * Notice derating |
History
| Update and Revision | Revision Number: 0.10 Revision Date: 07-28-2026 |
|---|
