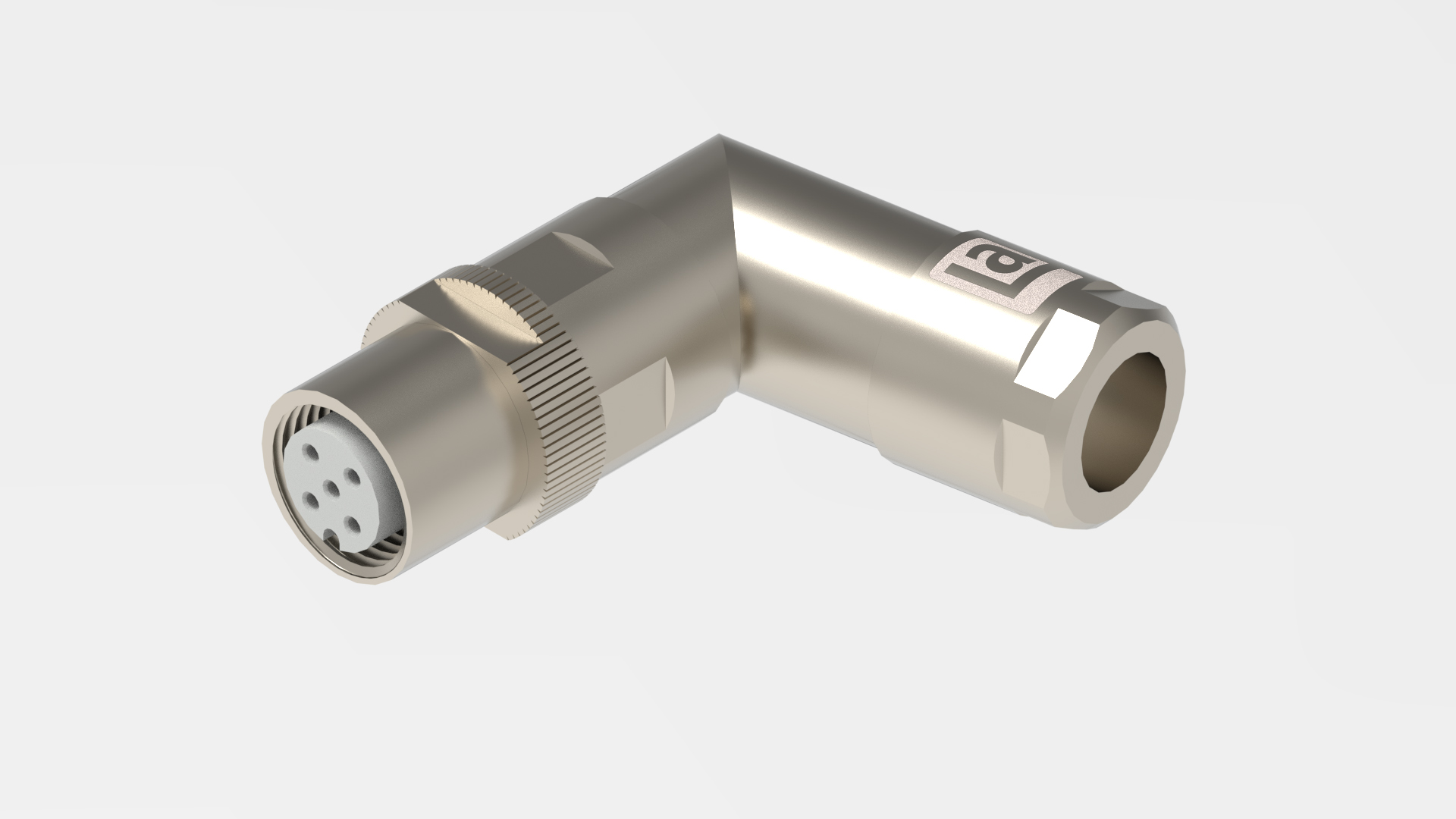

M12 Field Attachable Connector, rolling stock applications, crimp termination, slim metal housing, IP67, female, 5-pole, A-coded, shielded, angled
M12 Field Attachable Connector, for railway applications, slim metal housing, IP67, female, 5-pole, A-coded, shielded, angled
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RM12C-FASV5A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 935093004 | RM12C-FASV5A | Order online |
Specifications
Face View
| Side 1 Product Sub Family | M12 Railway |
|---|---|
| Connector Type | Field attachable |
| Side 1 Type of Contact/Gender | female |
| Connector Design | angled |
| Number of Pins | 5 |
| Coding, Side 1 | A |
| Attachment Type | CuZn nickel-plated |
| Voltage Rating | 60 V DC |
| Rated Impulse Voltage | 1,5 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Insulation Resistance | ˃ 10^8 Ohm |
| Strain-Relief | clamping cage |
| Suitable Cables | Ø6,0...Ø8,5 mm |
| Ambient Temperature (Operation)* | -55°C to +85°C |
| Side 1 Design Standard | IEC 61076-2-101 |
Materials
| Contact Base Material | copper alloy |
|---|---|
| Side 1 Contact Plating | 0.4μ Au |
| Contact Bearer Material | Latamid 6H-V0 |
| Contact Bearer Color | gray |
| Housing Color | grey metallic |
| Attachment Material | CuZn |
| Attachment Plating | nickel-plated |
Circuitry
| Fastening Torque (Attachment) | 50-60 Ncm |
|---|
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
