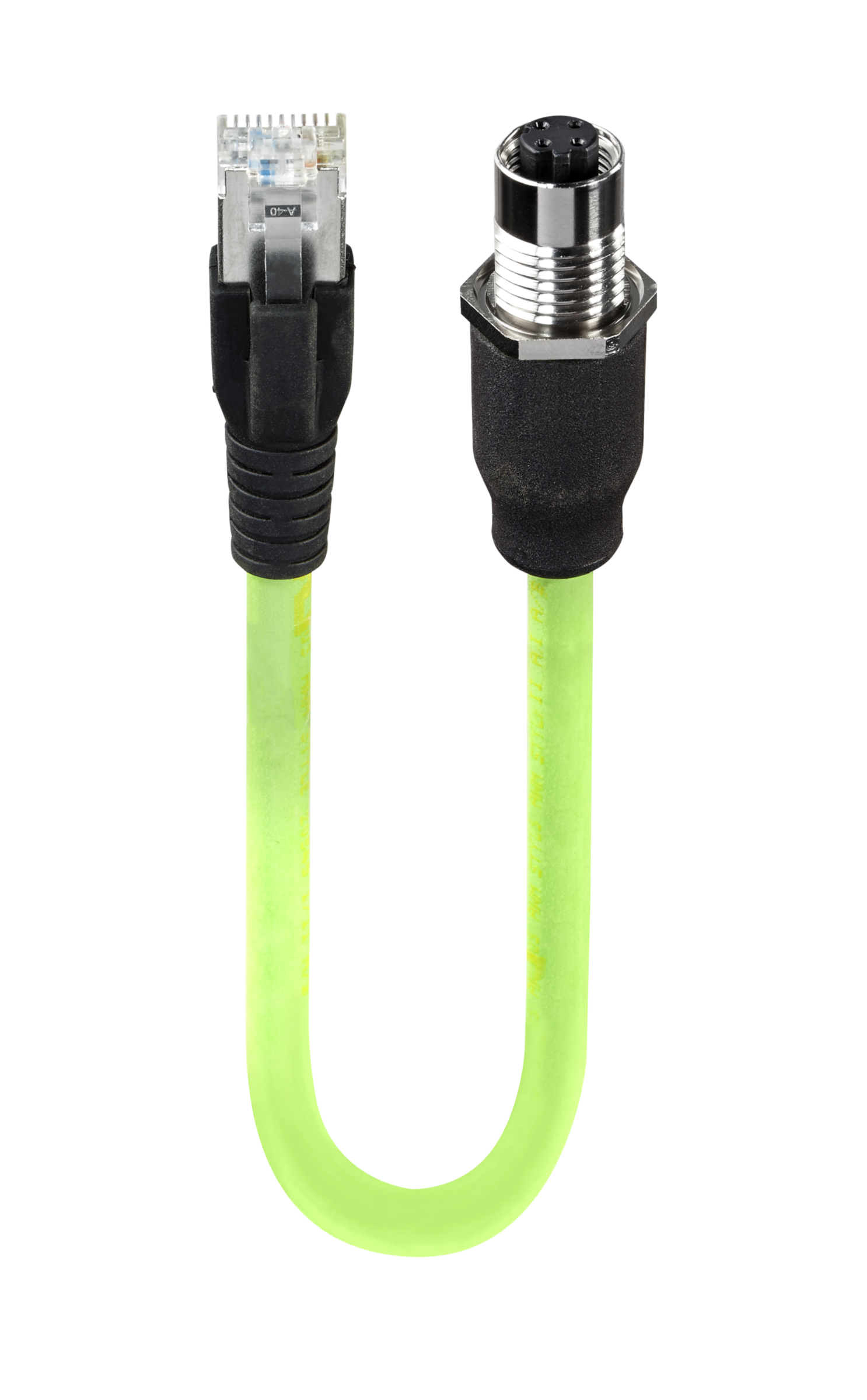

Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight RJ45-coded black RJ45 to female straight D-coded black M12 Overmolded Receptacle, shielded, 30 V AC / 42 V DC, 1.5 A; PUR green cable, 4-wires, 2x2x0.34 mm2
Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight RJ45-coded black RJ45 to female straight D-coded black M12 Overmolded Receptacle, shielded, 30 V AC / 42 V DC, 1.5 A; PUR green cable, 4-wires, 2x2x0.34 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
RKHS 4D-RJ45-342 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 23947 | RKHS 4D-RJ45-342/4 M | 4 m | Order online |
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 1 kV |
| Operating Voltage | 30 V AC / 42 V DC |
| Current Rating | 1.5 A |
| Data Transmission Type | Fast Ethernet Cat5e |
| Data Transmission Rate | 100 Mbit/s |
| Update and Revision | Revision Number: 0.24 Revision Date: 04-30-2026 |
Face View Side 1
| Pin 1 | yellow |
|---|---|
| Pin 2 | orange |
| Pin 3 | white |
| Pin 4 | blue |
Face View Side 2
| Pin 1 | yellow |
|---|---|
| Pin 2 | white |
| Pin 3 | orange |
| Pin 4 | blue |
Technical Data Side 1
| Side 1 Product Sub Family | RJ45 |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Number of Pins | 4 |
| Coding, Side 1 | RJ45 |
| Side 1 Contact Resistance | ≤ 20 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 750 |
| Ambient Temperature (Operation)* | - 25 °C - + 60 °C |
| Protection Degree / IP Rating** | IP20 |
| Side 1 Design Standard | IEC 60603-7 |
| Overvoltage Category | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | Copper Alloy |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PC |
| Contact Bearer Color | Clear |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Molded Body Material | PVC |
| Molded Body Color | Black |
| Shielding Material | Copper, nickel-plated |
| Note | Do not connect or disconnect under load. |
Cable Data
| Cable Number | 342 |
|---|---|
| Conductor Size | 2x2x0.34 mm2 |
| Number of Wires | 4 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1 M |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | green matt similarly RAL 6018 |
| Cable Diameter D | ø 6.50 ± 0.20 mm |
| Wire Insulation Material | PP |
| Insulated Wire Diameter | ø 1.58 ± 0.05 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 50 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | - 25 °C - + 80 °C |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| UL Cable Type | AWM: 20549 |
| Flammability Class (Cable Jacket) | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2, flame-retardant |
| Cable Characteristics | Exclusion of dangerous materials; Line construction similar PROFInet C-Specification; Line requirements similar: IEC 11801, IEC 61156 (CAT 5), EN 50173, EN 50288-2-2 (100MHz-cable and EIA/TIA 568 B (CAT 5e), Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Good chemical and oil resistance; Exclusion of PVC and Silicone; LABS-free of lacquer wetting disturbing substances; Coldness flexibility |
| Core Colors | Twisted pairs: white & blue, yellow & orange |
Technical Data Side 2
| Side 2 Product Sub Family | M12 Overmolded Receptacle |
|---|---|
| Side 2 Type of Contact/Gender | Female |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Screw-Locking |
| Number of Pins, Side 2 | 4 |
| Coding, Side 2 | D |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Ambient Temperature (Operation), Side 2* | - 25 °C - + 80 °C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Design Standard, Side 2 | IEC 61076-2-101 (In style of) |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | CuSn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | PBT |
| Contact Bearer Color, Side 2 | Black |
| Flammability Class (Contact Bearer), Side 2 | UL 94 HB |
| Molded Body Material, Side 2 | PA |
| Molded Body Color, Side 2 | Black |
| Flammability Class (Molded Body), Side 2 | UL 94 HB |
| Housing Material, Side 2 | CuZn, Nickel-plated |
| Attachment Material, Side 2 | CuZn |
| Attachment Plating, Side 2 | Nickel-plated |
| Fastening Torque (Attachment), Side 2 | M 12x1: (50-60) Ncm, hand-tight |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
|---|---|
| Oil Resistance | EN 60811 Part 2-1 |
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| Note Derating | Notice derating |
History
| Update and Revision | Revision Number: 0.24 Revision Date: 04-30-2026 |
|---|
