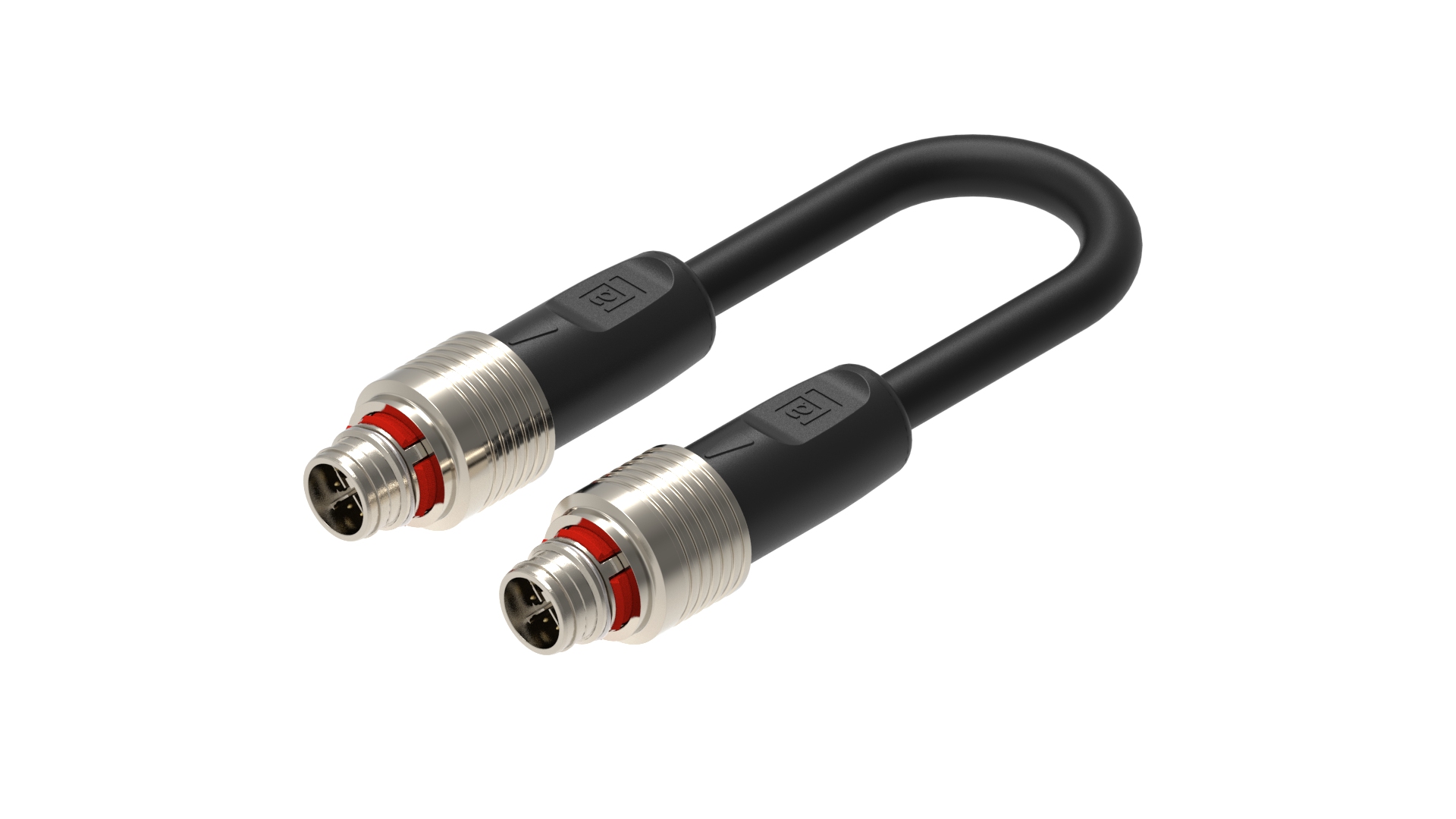

M12 cordset, Push Pull, Industrial CAT 7, PUR black cable, shielded, male, straight, X-coded, 8-Pin, 4x2x0.14mm2, twisted pairs, PoE+
Fast mounting Gigabit Ethernet Cat7 Data Double-Ended Cordset
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
PP12M-MSSV8X-PP12M-MSSV8X-0478 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 935300401 | PP12M-MSSV8X-PP12M-MSSV8X-0478-0100 | 1 m | Order online |
| 935300402 | PP12M-MSSV8X-PP12M-MSSV8X-0478-0200 | 2 m | Order online |
| 935300403 | PP12M-MSSV8X-PP12M-MSSV8X-0478-0300 | 3 m | Order online |
| 935300404 | PP12M-MSSV8X-PP12M-MSSV8X-0478-0500 | 5 m | Order online |
Specifications
Face View Side 1
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Voltage Rating | 60 V |
| Rated Voltage (UL) | 30 V AC/DC |
| Rated Impulse Voltage | 0.8 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 0.5 A |
| Rated Current (UL)* | 0.5 A |
| Data Transmission Type | Gigabit Ethernet Cat7 |
| Data Transmission Rate | 10 Gbit/s |
Technical Data Side 1
| Side 1 Product Sub Family | M12 Standard push pull |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Inner Push Pull |
| Number of Pins | 8 |
| Coding, Side 1 | X |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 85 °C |
| Operating Temperature (UL) | max. 80 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-109/-010 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuZn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Molded Body Material | PA |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 V-0 |
| Attachment Material | PA |
| Shielding Material | GD-Zn, nickel-plated |
| Fastening Torque (Attachment) | PushPull |
Cable Data
| Cable Number | 478 |
|---|---|
| Conductor Size | 4x2x0.14 mm2 |
| Number of Wires | 8 |
| Minimal Bending Radius (Fixed Inst) | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 200.000 |
| Conductor Material | Cu |
| Cable Jacket Material | PUR |
| Cable Jacket Color | black |
| Cable Diameter D | ø 6.80 ± 0.30 mm |
| Wire Insulation Material | PE |
| Insulated Wire Diameter | ø 1.05 ± 0.05 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | 0 °C - +50 °C |
| UL Cable Type | AWM: 21327 |
| Flammability Class (Cable Jacket) | FT-2 |
| Core Colors | Twisted pairs: white & blue, white & orange, white & green, white & brown |
Technical Data Side 2
| Side 2 Product Sub Family | M12 Standard push pull |
|---|---|
| Side 2 Type of Contact/Gender | Male |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Inner Push Pull |
| Number of Pins, Side 2 | 8 |
| Coding, Side 2 | X |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Design Standard, Side 2 | IEC 61076-2-109/-010 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | CuZn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | PA |
| Contact Bearer Color, Side 2 | Black |
| Flammability Class (Contact Bearer), Side 2 | UL 94 V0 |
| Molded Body Material, Side 2 | PA |
| Molded Body Color, Side 2 | Black |
| Flammability Class (Molded Body), Side 2 | UL 94 V0 |
| Attachment Material, Side 2 | PA |
| Shielding Material, Side 2 | GD-Zn, nickel-plated |
| Fastening Torque (Attachment), Side 2 | PushPull |
Approvals
| UL-File | E315587 |
|---|---|
| UL | UL 2238; cULus |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Halogenfree | IEC 60754-1 |
|---|---|
| Oil Resistance | IEC 60811-2-1 |
Notes
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
| Note Derating | * Notice derating |
History
| Update and Revision | Revision Number: 0.25 Revision Date: 07-28-2026 |
|---|
