CANopen / DeviceNet, Cordset, single ended: 7/8", Female, Straight, 5 pole, with cable type, Grey, PVC, DeviceNet THICK
0935 613 303-Y - CANopen / DeviceNet, Cordset, single ended: 7/8", Female, Straight, 5 pole, with cable type, Grey, PVC, DeviceNet THICK
- Availability
- Global
- Status
- Active
- Orderable items
- 34
Part numbers
0935 613 303 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 900001561 | 0935 613 303/0.3M | 0.3 m | Order online |
| 910001561 | 0935 613 303/0.3M-Y | 0.3 m | Order online |
| 900004485 | 0935 613 303/0.6M | 0.6 m | Order online |
| 900002965 | 0935 613 303/1M | 1 m | Order online |
| 910002965 | 0935 613 303/1M-Y | 1 m | Order online |
| 900001748 | 0935 613 303/2M | 2 m | Order online |
| 71282 | 0935 613 303/2 M | 2 m | Order online |
| 910001748 | 0935 613 303/2M-Y | 2 m | Order online |
| 900001719 | 0935 613 303/3M | 3 m | Order online |
| 910001719 | 0935 613 303/3M-Y | 3 m | Order online |
| 900001749 | 0935 613 303/4M | 4 m | Order online |
| 910001749 | 0935 613 303/4M-Y | 4 m | Order online |
| 900002964 | 0935 613 303/5M | 5 m | Order online |
| 910002964 | 0935 613 303/5M-Y | 5 m | Order online |
| 900004437 | 0935 613 303/6M | 6 m | Order online |
| 900001562 | 0935 613 303/9M | 9 m | Order online |
| 910001562 | 0935 613 303/9M-Y | 9 m | Order online |
| 900001957 | 0935 613 303/10M | 10 m | Order online |
| 9991 | 0935 613 303/10 M | 10 m | Order online |
| 910001957 | 0935 613 303/10M-Y | 10 m | Order online |
| 900002314 | 0935 613 303/15M | 15 m | Order online |
| 910002314 | 0935 613 303/15M-Y | 15 m | Order online |
| 900001822 | 0935 613 303/20M | 20 m | Order online |
| 910001822 | 0935 613 303/20M-Y | 20 m | Order online |
| 900001564 | 0935 613 303/25M | 25 m | Order online |
| 910001564 | 0935 613 303/25M-Y | 25 m | Order online |
| 900001559 | 0935 613 303/30M | 30 m | Order online |
| 910001559 | 0935 613 303/30M-Y | 30 m | Order online |
| 900001560 | 0935 613 303/35M | 35 m | Order online |
| 910001560 | 0935 613 303/35M-Y | 35 m | Order online |
| 900002315 | 0935 613 303/40M | 40 m | Order online |
| 910002315 | 0935 613 303/40M-Y | 40 m | Order online |
| 900004042 | 0935 613 303/50M | 50 m | Order online |
| 910004042 | 0935 613 303/50M-Y | 50 m | Order online |
Specifications
Face View Side 1
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, single ended |
| Shielding Type | Shielded |
| Voltage Rating | 300 V |
| Rated Voltage (UL) | 300 V |
| Current Rating | 8 A |
| Data Transmission Type | CANopen / DeviceNet |
| Data Transmission Rate | CANopen / DeviceNet |
Technical Data Side 1
| Side 1 Product Sub Family | 7/8" |
|---|---|
| Side 1 Type of Contact/Gender | Female |
| Connector Design | Straight |
| Attachment Type | Coupling Nut with internal threads |
| Number of Pins | 5 |
| Coding, Side 1 | A |
| Ambient Temperature (Operation)* | -40° C - +90° C |
| Protection Degree / IP Rating** | IP68 |
| Contact Base Material | CuZn |
| Side 1 Contact Plating | gold over silver plated |
| Contact Bearer Material | PUR, yellow |
| Contact Bearer Color | Yellow |
| Molded Body Material | Black |
| Molded Body Color | Grey |
| Housing Color | yellow |
| Attachment Material | AI, anodized black |
| O-Ring Material | 2 Pair + Drain |
Cable Data
| Cable Number | 613 |
|---|---|
| Number of Wires | 2 Pair + Drain |
| Minimal Bending Radius (Fixed Inst) | ˃ 7 x D |
| Minimal Bending Radius (Flexible Inst) | ˃ 10 x D |
| Cycles (Bending) | ˃ 1 M |
| Conductor Material | Cu |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Grey |
| Cable Diameter D | Ø 12.1 mm |
| Wire Insulation Material | PVC-Power, Data-PE |
| Insulated Wire Diameter | Power Ø2.77 mm, Data Ø3.81 mm |
| Overall Shield (Cable) | Braid, TC, 65% Coverage |
| Ambient Temperature (Fixed Installation) | - 20 to + 60°C (60°C UL) |
| UL Cable Type | CMG, PLTC-ER or UL AWM 20201, CSA AWM I/II A/B |
| Flammability Class (Cable Jacket) | FT4, IEC 60332-1-2 |
| Cable Characteristics | Mechanical Resistances, Abrasion, Impact, Weathering; Chemical Resistances to Oils, Acids, Alkalis |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Oil Resistance | Yes |
|---|
Notes
| Protection Degree / IP Rating Note | Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product |
|---|---|
| Note Derating | Do not connect or disconnect under load. |
History
| Update and Revision | Revision Number: 0.52 Revision Date: 04-30-2026 |
|---|
Resources
Related fieldbus connectors

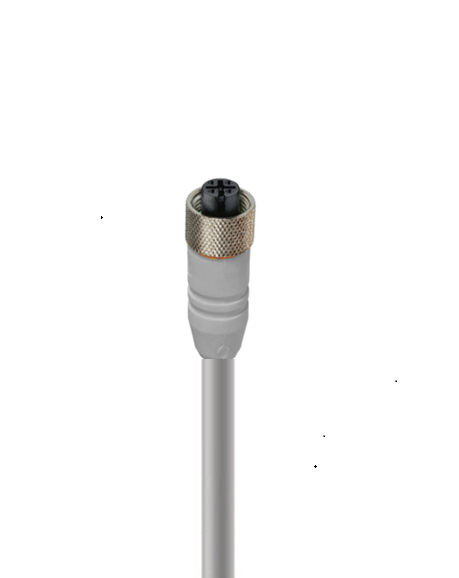

0935 614 105
