Gigabit Ethernet Cat7 Data Double-Ended Cordset: Male straight X-coded black M12 Standard to Female straight D-coded black M12 Standard, shielded, 50 V AC / 60 V DC, 0.5 A; TPE Teal cable, 4-wires, 4x2x0.14 mm2
Gigabit Ethernet Cat7 Data Double-Ended Cordset: Male straight X-coded black M12 Standard to Female straight D-coded black M12 Standard, shielded, 50 V AC / 60 V DC, 0.5 A; TPE Teal cable, 4-wires, 4x2x0.14 mm2
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
934638095 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 934638095 | RSTS 8X-RKTS 4D-S478/1 M | 1 m | Order online |
Specifications
Face View Side 1
| Connector Type | Cordset, double ended |
|---|---|
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 0.8 kV |
| Data Transmission Type | Gigabit Ethernet Cat7 |
Technical Data Side 1
| Side 1 Product Sub Family | M12 Standard |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Coupling Screw |
| Number of Pins | 8 |
| Coding, Side 1 | X |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Ambient Temperature (Operation)* | - 40 °C - + 80 °C |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-109 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 V-0 |
| Molded Body Material | PA |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 V-0 |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Shielding Material | GD-Zn, nickel-plated |
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
Cable Data
| Cable Number | S478 |
|---|---|
| Conductor Size | 4x2x0.14 mm2 |
| Number of Wires | 8 |
| Minimal Bending Radius (Fixed Inst) | ˃ 30 mm |
| Minimal Bending Radius (Flexible Inst) | ˃ 65 mm |
| Welding Resistance | spark weld resistant |
| Conductor Material | Stranded PACW |
| Cable Jacket Material | TPE |
| Cable Jacket Color | Teal |
| Cable Diameter D | ø 6.8 ± 0.2 mm |
| Wire Insulation Material | PE |
| Insulated Wire Diameter | ø 1.05 mm |
| Overall Shield (Cable) | Cu-ETP1 tinned |
| Foil shield | Al-PT Foil |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 80 °C |
| Ambient Temperature (Flex Installation) | -15 °C - + 60 °C |
| Flammability Class (Cable Jacket) | IEC 60332-1-2 |
| Cable Characteristics | Exclusion of dangerous materials |
| Core Colors | Twisted pairs: white & blue, white & orange, white & green, white & brown |
Technical Data Side 2
| Side 2 Product Sub Family | M12 Standard |
|---|---|
| Side 2 Type of Contact/Gender | Female |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Coupling Screw |
| Number of Pins, Side 2 | 4 |
| Coding, Side 2 | D |
| Contact Resistance, Side 2 | ≤ 10 mOhm |
| Insulation Resistance, Side 2 | ˃ 10^9 Ohm |
| Mating Cycles, Side 2 | ≤ 100 |
| Ambient Temperature (Operation), Side 2* | - 40 °C - + 80 °C |
| Protection Degree / IP Rating, Side 2** | IP65, IP67 |
| Design Standard, Side 2 | IEC 61076-2-109 |
| Pollution Degree, Side 2 | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2 | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2 | CuZn |
| Contact Plating, Side 2 | Cu/Au |
| Contact Bearer Material, Side 2 | PA |
| Contact Bearer Color, Side 2 | Black |
| Flammability Class (Contact Bearer), Side 2 | UL 94 V-0 |
| Molded Body Material, Side 2 | PA |
| Molded Body Color, Side 2 | Black |
| Flammability Class (Molded Body), Side 2 | UL 94 V-0 |
| Attachment Material, Side 2 | CuZn |
| Attachment Plating, Side 2 | Nickel-plated |
| Shielding Material, Side 2 | GD-Zn, nickel-plated |
| Fastening Torque (Attachment), Side 2 | M 12x1: (50-60) Ncm, hand-tight |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Resistances
| Oil Resistance | IEC 60811-2-1 |
|---|
Notes
| Note Derating | Notice derating |
|---|
History
| Update and Revision | Revision Number: 0.48 Revision Date: 04-30-2026 |
|---|
Resources
Related fast ethernet connectors

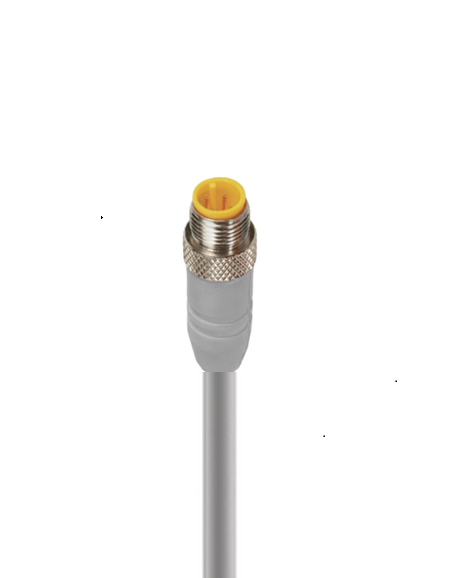

0935 614 104
CANopen / DeviceNet, Cordset, single ended: M12 Standard, Male, Straight, 5 pole, with cable type, Grey, PVC, DeviceNet THIN

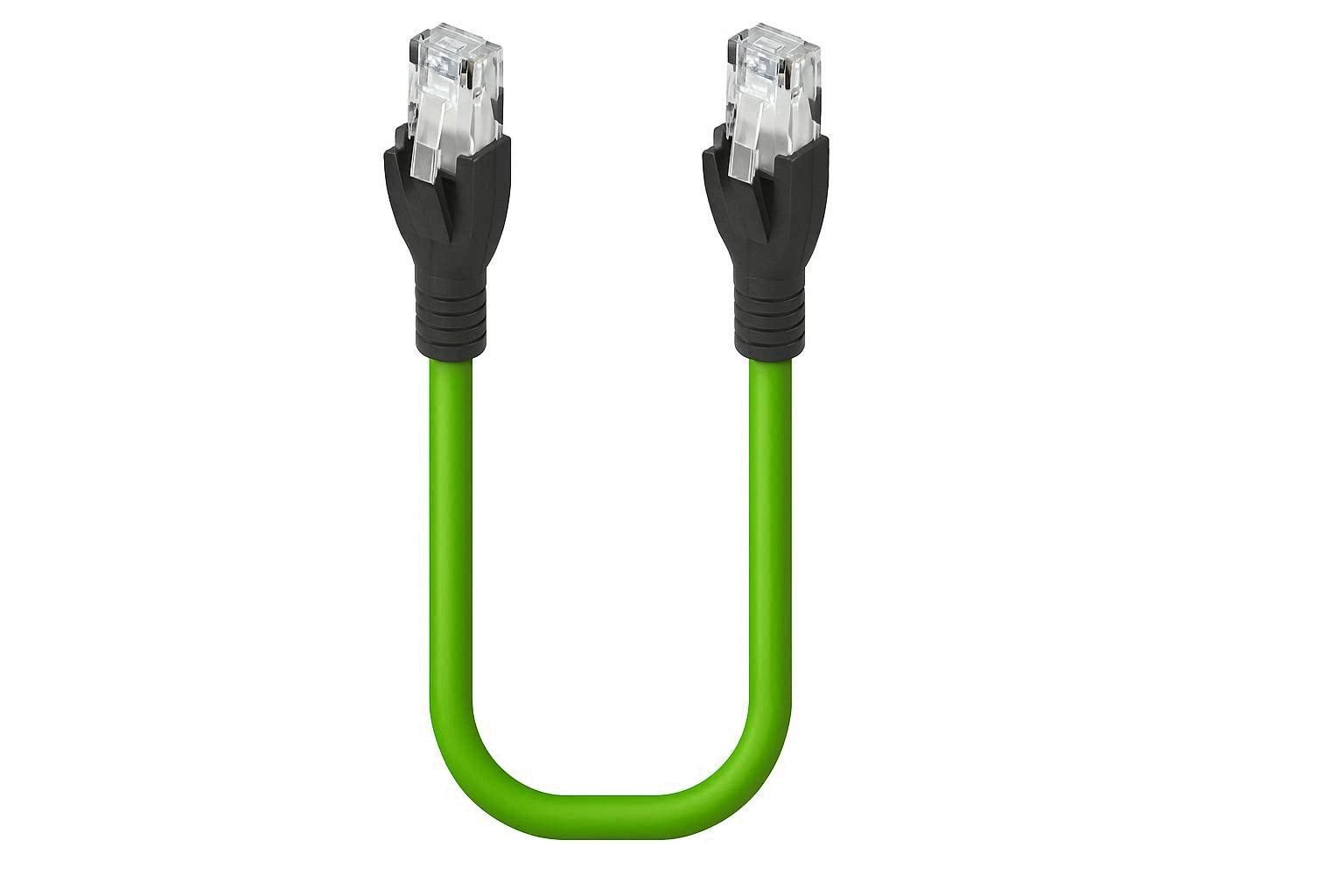

0985 342 500
Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight RJ45 Standard to male straight RJ45 Standard, shielded, 50 V AC / 60 V DC, 4 A; PUR green cable, 4-wires, 2x2x0.34 mm2

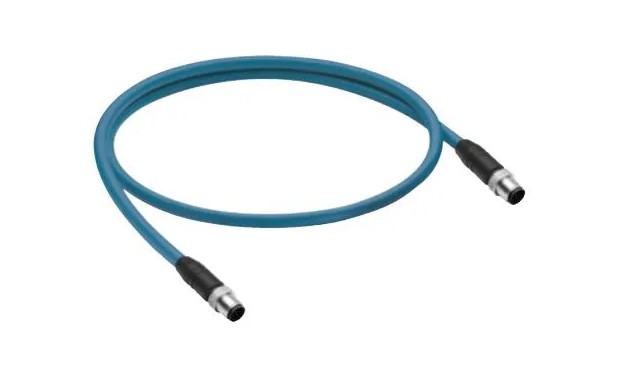

0985 806 100
