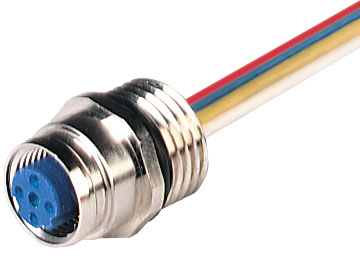

M12 Data Receptacle Connector: Female, front mount, M12 - mating side, stranded wires - connecting side, 4-pin, D-coded, unshielded, metallic grey housing, 50 V AC / 60 V DC, 4 A
M12 Data Receptacle Connector: Female, front mount, M12 - mating side, stranded wires - connecting side, 4-pin, D-coded, unshielded, metallic grey housing, 50 V AC / 60 V DC, 4 A
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
EF12M OCTOPUS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 934450021 | EF12M OCTOPUS | 0.08 m | Order online |
Specifications
Information
| Product Family | Data Connectors |
|---|---|
| Side 1 Product Sub Family | M12 Standard |
| Mating Side | M12 |
| Connecting Side | Stranded Wires |
| Connector Type | Receptacle |
| Side 1 Type of Contact/Gender | Female |
| Connector Design | Front Mount |
| Number of Pins | 4 |
| Coding, Side 1 | D |
| Attachment Type | Screw-Locking |
| Voltage Rating | 60 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 4 A |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ≤ 100 |
| Type of Connection | Solder |
| Thread Size | M16x1.5 |
| Ambient Temperature (Operation)* | - 25 °C - + 90 °C |
| Protection Degree / IP Rating** | IP65, IP67, IP68 (1 m / 24 h) |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating | * Notice derating |
| Protection Degree / IP Rating Note | * only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures. |
| Note | The receptacle connector is constructively intended for usage in IP67 and IP68-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-101. |
Face View
| Pin 1 | yellow |
|---|---|
| Pin 2 | white |
| Pin 3 | orange |
| Pin 4 | blue |
Materials
| Contact Base Material | CuZn |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | Blue |
| Flammability Class (Contact Bearer) | UL 94 V-2 |
| Potted | Yes |
| Housing Material | CuZn |
| Housing Plating | Nickel-plated |
| Housing Color | Silver |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| O-Ring Material | FKM |
Circuitry
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
|---|---|
| Accessories to Order Separately | 735-413-002 Mounting Nut M16 |
Cable Data
| Conductor Size | 0.34 mm2 |
|---|---|
| Number of Wires | 4 |
| Conductor Material | Cu |
| Wire Insulation Material | PVC |
| Insulated Wire Diameter | max ø 1.75 |
| Ambient Temperature (Fixed Installation) | max. + 105 °C |
| UL Cable Type | AWM: 1007/1569 |
| Core Colors | yellow, white, orange, blue |
Safety & Environmental Compliance
| RoHS Compliant | yes |
|---|
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | * only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures. |
| Note | The receptacle connector is constructively intended for usage in IP67 and IP68-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-101. |
