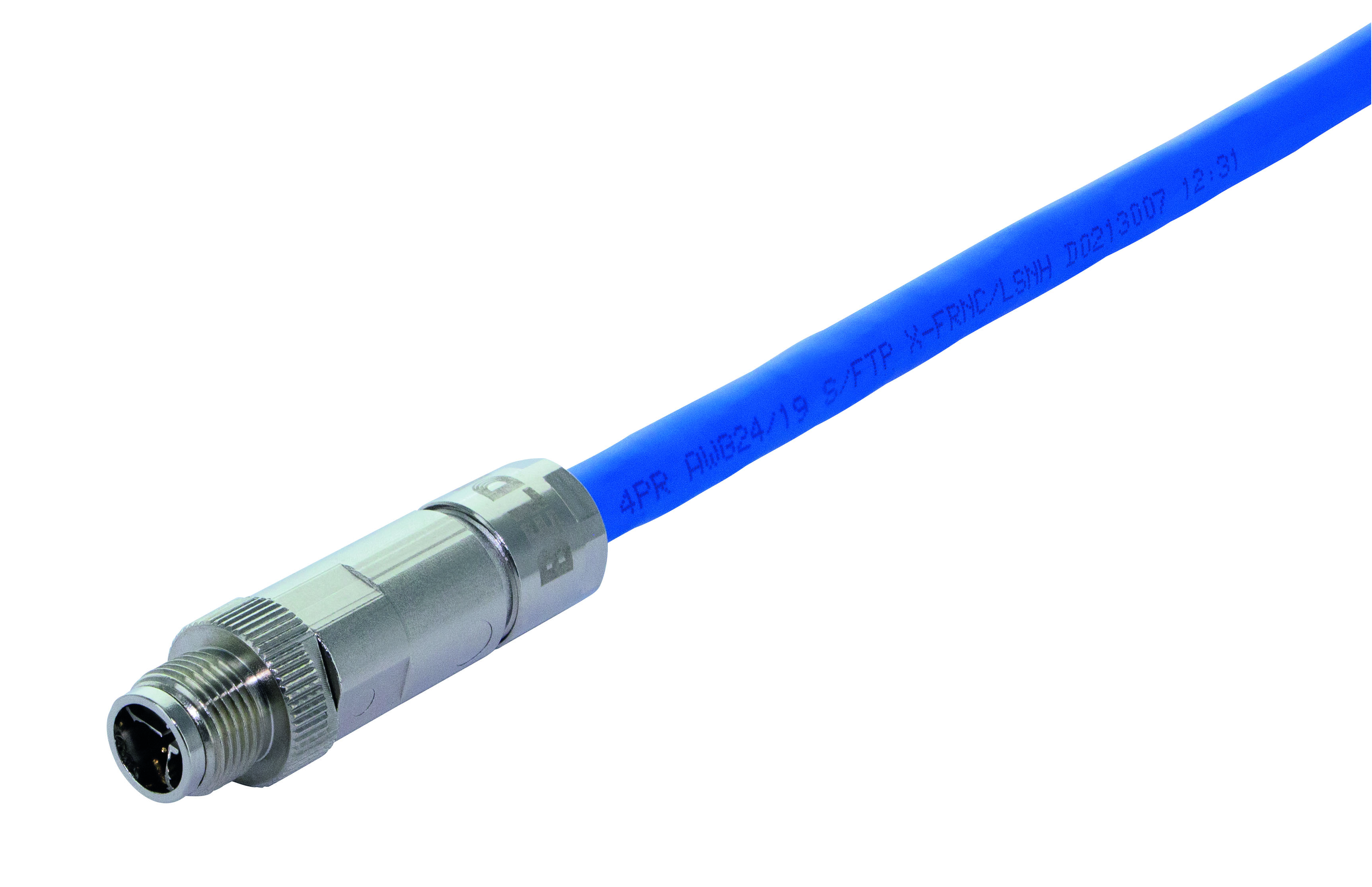

M12 Data Field Attachable, crimp termination, robust metal housing, IP67, 8-pin, X-coded, shielded, straight, 48V, 0.5A
M12 Data Field Attachable, crimp termination, robust metal housing, IP67, 8-pin, X-coded, shielded, straight, 48V, 0.5A, suited for rail application acc. to EN45545, Cat6a
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
BRSCCS 8X/9 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Order |
|---|---|---|
| 934885101 | BRSCCS 8X/9 | Order online |
Specifications
Face View
| Product Family | Data Connector |
|---|---|
| Side 1 Product Sub Family | Data Connector |
| Connector Type | Field attachable |
| Side 1 Type of Contact/Gender | male |
| Connector Design | straight |
| Number of Pins | 8 (included in the packaging) |
| Coding, Side 1 | X |
| Shielding Type | Shielded |
| Attachment Type | Coupling Screw |
| Voltage Rating | 48V |
| Rated Impulse Voltage | 1.5kV |
| Operating Voltage | 50 V AC / 60 V DC |
| Data Transmission Type | Category 6A |
| Data Transmission Rate | 10 Gbit/s |
| Side 1 Contact Resistance | ≤ 10 mOhm |
| Insulation Resistance | ˃ 10^8 Ohm |
| Mating Cycles | ˃ 200 |
| Type of Connection | crimp |
| Maximum Wire Isolation Diameter | Ø 6 mm to Ø 8,5 mm |
| Strain-Relief | cable gland |
| Suitable Cables | gaskets enclosed Ø6 - Ø8.5 mm |
| Ambient Temperature (Operation)* | -55 °C to +85 °C, notice derating |
| Protection Degree / IP Rating** | IP67 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
Materials
| Contact Base Material | Cu Alloy |
|---|---|
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA |
| Contact Bearer Color | grey |
| Flammability Class (Contact Bearer) | UL 94 V-0 / F2 |
| Housing Material | Zamak |
| Housing Plating | Ni |
| Housing Color | silver |
| Cable Gland Material | CuZn |
| Cable Gland Plating | Ni |
| Cable Gland Gasket | NBR |
| Strain-Relief Material | PBT GF |
| Flammability Class (Strain Relief) | UL 94 V-0 / F2 |
| Attachment Material | CuZn |
| Attachment Plating | Cu/Ni |
| Shielding Material | CuZn, plating: Ni |
Circuitry
| Fastening Torque (Contact Screw) | 1.5 -2.0 Nm (max. 3.0Nm), hand-tight |
|---|
Safety & Environmental Compliance
| RoHS Compliant | yes, with exeption |
|---|
Notes
| Note Derating | * Notice derating |
|---|---|
| Protection Degree / IP Rating Note | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
