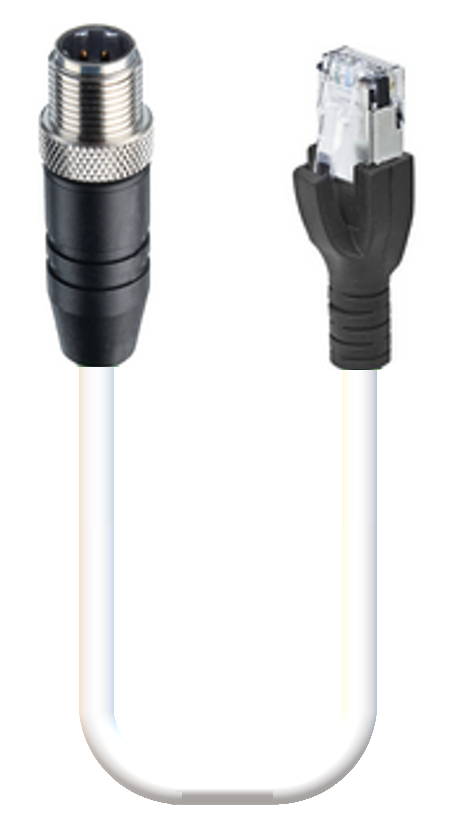

Fast Ethernet Cat5e, double-ended cord set, M12 male, straight, 4-pin, D-coding to a RJ45 male, straight, 8-pin, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with white jacket
Fast Ethernet Cat5e, double-ended cord set, M12 male, straight, 4-pin, D-coding to a RJ45 male, straight, 8-pin, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with white jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 10
Part numbers
0985 YM57530-W 103 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 900016226 | 0985 YM57530-W 103/5M | 5 m | Order online |
| 900004278 | 0985 YM57530-W 103/6.5M | 6.5 m | Order online |
| 900005007 | 0985 YM57530-W 103/8M | 8 m | Order online |
| 900005008 | 0985 YM57530-W 103/10M | 10 m | Order online |
| 900004279 | 0985 YM57530-W 103/12M | 12 m | Order online |
| 900016194 | 0985 YM57530-W 103/15M | 15 m | Order online |
| 900004411 | 0985 YM57530-W 103/16M | 16 m | Order online |
| 900004816 | 0985 YM57530-W 103/20M | 20 m | Order online |
| 900016015 | 0985 YM57530-W 103/30M | 30 m | Order online |
| 900016175 | 0985 YM57530-W 103/40M | 40 m | Order online |
Specifications
Face View Side 1
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Voltage Rating | 42 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 30 V AC/ 42 V DC |
| Current Rating | 1.5 A |
| Data Transmission Type | Fast Ethernet Cat5e |
| Data Transmission Rate | 100 Mbit/s |
Technical Data Side 1
| Side 1 Product Sub Family | M12 Standard |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Knurled Screw |
| Number of Pins | 4 |
| Coding, Side 1 | D |
| Mating Cycles | ≤ 100 |
| Cable Gland | PG 7 |
| Ambient Temperature (Operation)* | - 25 °C - + 75 °C |
| Temperature Range (Gasket) | see Accessories |
| Protection Degree / IP Rating** | IP65, IP67 |
| Side 1 Design Standard | IEC 61076-2-101 |
| Side 1 Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | EN 60664-1 (2003/11); VDE 0110-1 |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuSn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PBT |
| Contact Bearer Color | Black |
| Flammability Class (Contact Bearer) | UL 94 HB |
| Molded Body Material | TPU |
| Molded Body Color | Black |
| Flammability Class (Molded Body) | UL 94 HB |
| Housing Color | black |
| Attachment Material | CuZn |
| Attachment Plating | Nickel-plated |
| Shielding Material | CuZn, tin-plated |
| Gasket Material | NBR, cable gland |
| Fastening Torque (Cable Gland) | PG7: (150-250) Ncm |
| Fastening Torque (Attachment) | M 12x1: (50-60) Ncm, hand-tight |
| Accessories to Order Separately | gasket: GDSN 307-4, 730-176-002, NBR, flat gasket for temperature range: -25°C to +90°C, GDSN 307-5, 730-310-003,EPDM, flat gasket for temperature range: -40°C to +125°C |
Cable Data
| Cable Number | YM57530-W |
|---|---|
| Conductor Size | 24 AWG |
| Number of Wires | 2 Pair (bonded twisted pairs) |
| Minimal Bending Radius (Fixed Inst) | 5 x D |
| Minimal Bending Radius (Flexible Inst) | 10 x D |
| Cycles (Bending) | 3 |
| Cycles (Torsion) | ˃ 5 M @ ± 360 °/1 m |
| Cable Jacket Material | TPE |
| Cable Jacket Color | White |
| Cable Diameter D | ø 7.62 mm |
| Wire Insulation Material | Polyolefin |
| Insulated Wire Diameter | ø 1.02 ± 0.05 mm |
| Overall Shield (Cable) | TC Braid 65% |
| Foil shield | Al Foil 100% |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 75 °C |
| Ambient Temperature (Flex Installation) | - 25 °C - + 75 °C |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| UL Cable Type | AWM 20626, 80C 600 V |
| Cable Characteristics | NEMA WC-63.1 Category 5, ICEA 661, Category 5e Patch, TIA/EI-568-B.2, Category 5e, Indoor/Outdoor Yes, Oil Res |
| Core Colors | Bonded Twisted pairs: wh/or | wh/gn |
Technical Data Side 2
| Side 2 Product Sub Family | RJ45 |
|---|---|
| Side 2 Type of Contact/Gender | Male |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Plug |
| Number of Pins, Side 2 | 8 (4 terminated) |
| Coding, Side 2 | RJ45 |
| Mating Cycles, Side 2 | ≤ 750 |
| Ambient Temperature (Operation), Side 2* | - 40 °C - + 70 °C |
| Protection Degree / IP Rating, Side 2** | IP20 |
| Contact Base Material, Side 2 | P / CuSN |
| Contact Plating, Side 2 | Au |
| Contact Bearer Material, Side 2 | Polycarbonate |
| Contact Bearer Color, Side 2 | Clear |
| Molded Body Material, Side 2 | Elastomer Polyolefin |
| Molded Body Color, Side 2 | Black |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Oil Resistance | Yes |
|---|
Notes
| Note Derating | Notice derating |
|---|
History
| Update and Revision | Revision Number: 0.45 Revision Date: 04-30-2026 |
|---|
