0985 YM57530-R 100

Product Number: 0985 YM57530-R 100

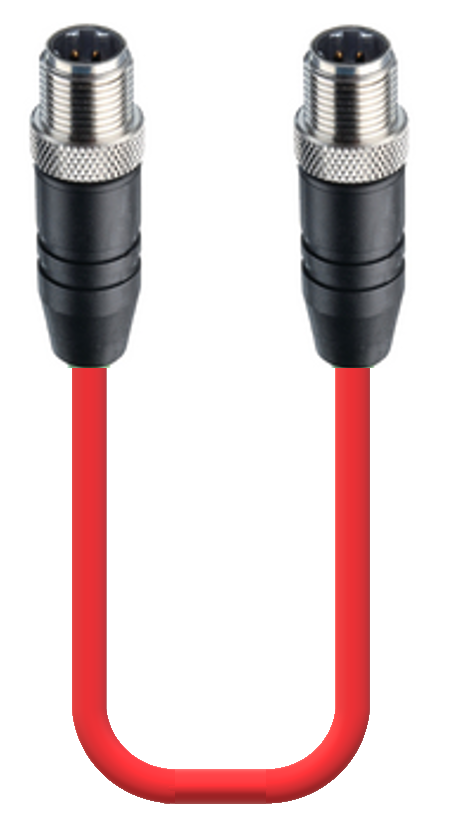

Fast Ethernet Cat5e, double-ended cord set, M12 male, straight, 4-pin, D-coding to a M12 male, straight, 4-pin, D-coding, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with red jacket

Fast Ethernet Cat5e, double-ended cord set, M12 male, straight, 4-pin, D-coding to a M12 male, straight, 4-pin, D-coding, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with red jacket

Availability
Americas
Status
Active
Orderable items
30
Request a quoteOrder options (30)

Ships from and sold by A5 IT.

Part numbers

0985 YM57530-R 100 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #Item DescriptionCable LengthOrder
9000051880985 YM57530-R 100/0.5M0.5 mOrder online
9000051980985 YM57530-R 100/1M1 mOrder online
9000048670985 YM57530-R 100/2M2 mOrder online
9000048680985 YM57530-R 100/3M3 mOrder online
9000048690985 YM57530-R 100/4M4 mOrder online
9000048700985 YM57530-R 100/5M5 mOrder online
9000048710985 YM57530-R 100/6M6 mOrder online
9000048720985 YM57530-R 100/7M7 mOrder online
9000163690985 YM57530-R 100/37 M7 mOrder online
9000048730985 YM57530-R 100/8M8 mOrder online
9000048740985 YM57530-R 100/9M9 mOrder online
9000044700985 YM57530-R 100/10M10 mOrder online
9000044000985 YM57530-R 100/11M11 mOrder online
9000044710985 YM57530-R 100/15M15 mOrder online
9000044010985 YM57530-R 100/16M16 mOrder online
9000044430985 YM57530-R 100/20M20 mOrder online
9000044070985 YM57530-R 100/22M22 mOrder online
9000042800985 YM57530-R 100/25M25 mOrder online
9000042810985 YM57530-R 100/30M30 mOrder online
9000044440985 YM57530-R 100/35M35 mOrder online
9000043990985 YM57530-R 100/40M40 mOrder online
9000163680985 YM57530-R 100/42 M42 mOrder online
9000048750985 YM57530-R 100/45M45 mOrder online
9000044020985 YM57530-R 100/46M46 mOrder online
9000044450985 YM57530-R 100/50M50 mOrder online
9000048760985 YM57530-R 100/55M55 mOrder online
9000048770985 YM57530-R 100/60M60 mOrder online
9000044720985 YM57530-R 100/70M70 mOrder online
9000044730985 YM57530-R 100/80M80 mOrder online
9000048150985 YM57530-R 100/82M82 mOrder online

Specifications

Face View Side 1

Product FamilyData Connectors
Connector TypeCordset, double ended
Shielding TypeShielded
Voltage Rating60 V
Rated Impulse Voltage1.5 kV
Operating Voltage50 V AC / 60 V DC
Current Rating4 A
Data Transmission TypeFast Ethernet Cat5e
Data Transmission Rate100 Mbit/s

Technical Data Side 1

Side 1 Product Sub FamilyM12 Standard
Side 1 Type of Contact/GenderMale
Connector DesignStraight
Attachment TypeKnurled Screw
Number of Pins4
Coding, Side 1D
Mating Cycles≤ 100
Ambient Temperature (Operation)*- 25 °C - + 75 °C
Protection Degree / IP Rating**IP65, IP67
Side 1 Design StandardIEC 61076-2-101
Side 1 Pollution Degree3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage CategoryIII acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base MaterialCuSn
Side 1 Contact PlatingCu/Au
Contact Bearer MaterialPBT
Contact Bearer ColorBlack
Flammability Class (Contact Bearer)UL 94 HB
Molded Body MaterialTPU
Molded Body ColorBlack
Flammability Class (Molded Body)UL 94 HB
Attachment MaterialCuZn
Attachment PlatingNickel-plated
Shielding MaterialCuZn, tin-plated
Fastening Torque (Attachment)M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable NumberYM5753-R
Conductor Size24 AWG
Number of Wires2 Pair (bonded twisted pairs)
Minimal Bending Radius (Fixed Inst)5 x D
Minimal Bending Radius (Flexible Inst)10 x D
Cycles (Bending)3
Cycles (Torsion)˃ 5 M @ ± 360 °/1 m
Cable Jacket MaterialTPE
Cable Jacket ColorRed
Cable Diameter Dø 7.62 mm
Wire Insulation MaterialPolyolefin
Insulated Wire Diameterø 1.02 ± 0.05 mm
Overall Shield (Cable)TC Braid 65%
Foil shieldAl Foil 100%
Ambient Temperature (Fixed Installation)- 40 °C - + 75 °C
Ambient Temperature (Flex Installation)- 25 °C - + 75 °C
Ambient Temperature (Drag Chain Inst)- 25 °C - + 60 °C
UL Cable TypeAWM 20626, 80C 600 V
Cable CharacteristicsNEMA WC-63.1 Category 5, ICEA 661, Category 5e Patch, TIA/EI-568-B.2, Category 5e, Indoor/Outdoor Yes, Oil Res
Core ColorsBonded Twisted pairs: wh/or | wh/gn

Technical Data Side 2

Side 2 Product Sub FamilyM12 Standard
Side 2 Type of Contact/GenderMale
Connector Design, Side 2Straight
Attachment Type, Side 2Knurled Screw
Number of Pins, Side 24
Coding, Side 2D
Mating Cycles, Side 2≤ 100
Ambient Temperature (Operation), Side 2*- 25 °C - + 75 °C
Protection Degree / IP Rating, Side 2**IP65, IP67
Design Standard, Side 2IEC 61076-2-101
Pollution Degree, Side 23 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2CuSn
Contact Plating, Side 2Cu/Au
Contact Bearer Material, Side 2PBT
Contact Bearer Color, Side 2Black
Flammability Class (Contact Bearer), Side 2UL 94 HB
Molded Body Material, Side 2TPU
Molded Body Color, Side 2Black
Flammability Class (Molded Body), Side 2UL 94 HB
Attachment Material, Side 2CuZn
Attachment Plating, Side 2Nickel-plated
Shielding Material, Side 2CuZn, tin-plated
Fastening Torque (Attachment), Side 2M 12x1: (50-60) Ncm, hand-tight

Safety & Environmental Compliance

RoHS CompliantYes

Resistances

Oil ResistanceYes

Notes

Note DeratingNotice derating

History

Update and RevisionRevision Number: 0.31 Revision Date: 04-25-2023
