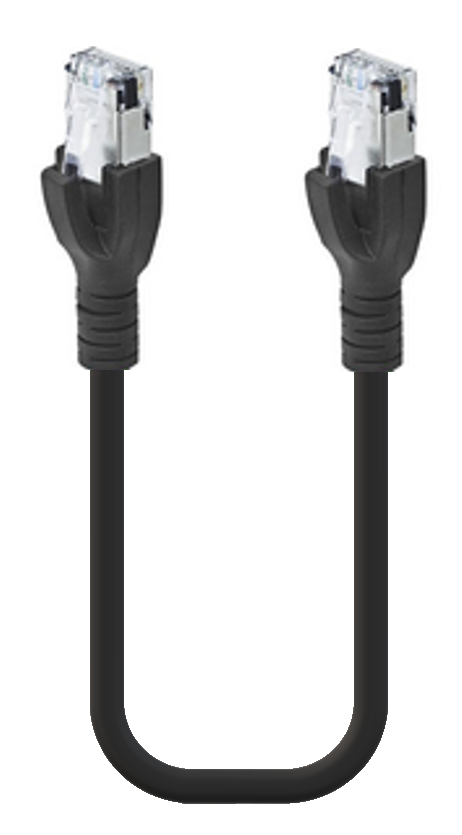

Fast Ethernet Cat5e, double-ended cord set, RJ45 male, straight, 8-pin to a RJ45 male, straight, 8-pin, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with black jacket
Fast Ethernet Cat5e, double-ended cord set, RJ45 male, straight, 8-pin to a RJ45 male, straight, 8-pin, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with black jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 5
Part numbers
0985 YM57530-BK 500 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Item Description | Cable Length | Order |
|---|---|---|---|
| 900016445 | 0985 YM57530-BK 500/1M | 1 m | Order online |
| 900016371 | 0985 YM57530-BK 500/2M | 2 m | Order online |
| 900016372 | 0985 YM57530-BK 500/3M | 3 m | Order online |
| 900016373 | 0985 YM57530-BK 500/4M | 4 m | Order online |
| 900016374 | 0985 YM57530-BK 500/5M | 5 m | Order online |
Specifications
Face View Side 1
| Product Family | Data Connectors |
|---|---|
| Connector Type | Cordset, double ended |
| Shielding Type | Shielded |
| Voltage Rating | 42 V |
| Rated Impulse Voltage | 1.5 kV |
| Operating Voltage | 30 V AC/ 42 V DC |
| Current Rating | 1.5 A |
| Data Transmission Type | Fast Ethernet Cat5e |
| Data Transmission Rate | 100 Mbit/s |
Technical Data Side 1
| Side 1 Product Sub Family | RJ45 |
|---|---|
| Side 1 Type of Contact/Gender | Male |
| Connector Design | Straight |
| Attachment Type | Plug |
| Number of Pins | 8 (4 terminated) |
| Coding, Side 1 | RJ45 |
| Mating Cycles | ≤ 750 |
| Ambient Temperature (Operation)* | - 40 °C - + 70 °C |
| Protection Degree / IP Rating** | IP20 |
| Contact Base Material | P / CuSN |
| Side 1 Contact Plating | Au |
| Contact Bearer Material | Polycarbonate |
| Contact Bearer Color | Clear |
| Molded Body Material | Elastomer Polyolefin |
| Molded Body Color | Black |
Cable Data
| Cable Number | YM57530-BK |
|---|---|
| Conductor Size | 24 AWG |
| Number of Wires | 2 Pair (bonded twisted pairs) |
| Minimal Bending Radius (Fixed Inst) | 5 x D |
| Minimal Bending Radius (Flexible Inst) | 10 x D |
| Cycles (Bending) | 3 |
| Cycles (Torsion) | ˃ 5 M @ ± 360 °/1 m |
| Cable Jacket Material | TPE |
| Cable Jacket Color | Black |
| Cable Diameter D | ø 7.62 mm |
| Wire Insulation Material | Polyolefin |
| Insulated Wire Diameter | ø 1.02 ± 0.05 mm |
| Overall Shield (Cable) | TC Braid 65% |
| Foil shield | Al Foil 100% |
| Ambient Temperature (Fixed Installation) | - 40 °C - + 75 °C |
| Ambient Temperature (Flex Installation) | - 25 °C - + 75 °C |
| Ambient Temperature (Drag Chain Inst) | - 25 °C - + 60 °C |
| UL Cable Type | AWM 20626, 80C 600 V |
| Cable Characteristics | NEMA WC-63.1 Category 5, ICEA 661, Category 5e Patch, TIA/EI-568-B.2, Category 5e, Indoor/Outdoor Yes, Oil Res |
| Core Colors | Bonded Twisted pairs: wh/or | wh/gn |
Technical Data Side 2
| Side 2 Product Sub Family | RJ45 |
|---|---|
| Side 2 Type of Contact/Gender | Male |
| Connector Design, Side 2 | Straight |
| Attachment Type, Side 2 | Plug |
| Number of Pins, Side 2 | 8 (4 terminated) |
| Coding, Side 2 | RJ45 |
| Mating Cycles, Side 2 | ≤ 750 |
| Ambient Temperature (Operation), Side 2* | - 40 °C - + 70 °C |
| Protection Degree / IP Rating, Side 2** | IP20 |
| Contact Base Material, Side 2 | P / CuSN |
| Contact Plating, Side 2 | Au |
| Contact Bearer Material, Side 2 | Polycarbonate |
| Contact Bearer Color, Side 2 | Clear |
| Molded Body Material, Side 2 | Elastomer Polyolefin |
| Molded Body Color, Side 2 | Black |
Safety & Environmental Compliance
| RoHS Compliant | Yes |
|---|
Resistances
| Oil Resistance | Yes |
|---|
Notes
| Note Derating | Notice derating |
|---|
History
| Update and Revision | Revision Number: 0.16 Revision Date: 04-30-2026 |
|---|
